Specifications
- Supports 80–1250 μm cladding fibers, coating diameters 160–3000 μm
- Applicable to various fiber types including Panda, bow-tie, and elliptical fibers
- Cleaving method: tension + blade scoring
- Typical cleave angle: 0.5°, cleave length: 5–40 mm
- Vacuum pump-assisted clamping for secure fiber positioning
- Diamond blade: 10 positions, lifetime >20,000 cleaves (125 μm fiber)
- Splicing programs: 40 groups
- Data storage: up to 4000 cleaving records
- Display: 5” HD color LCD touchscreen, GUI menu
- Battery: 3400 mAh, ~600 cleaves per charge, 8 hours continuous work
- Power supply: AC 100–240 V input / DC 11–13.5 V output
- Interfaces: USB 2.0, software upgrade & parameter defining supported
- Dimensions/Weight: 270 × 155 × 165 mm / 4.37 kg
- Operating conditions: 0–40°C, 0–95% RH (non-condensing)
Applications:
- Large Diameter Fiber (LDF) cleaving (80–1250 μm)
- Specialty fiber preparation (Panda, bow-tie, elliptical)
- Optical component manufacturing and R&D
- Telecom and advanced fiber optic projects
Packing List

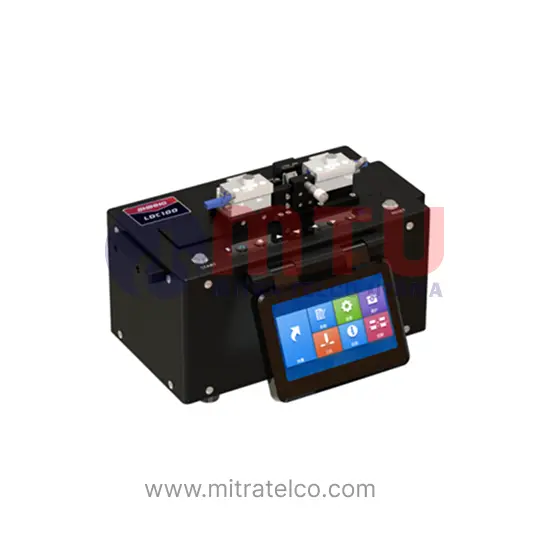

- LDF Cleaver
- Power Adapter
- Power Cord
- User Manual(USB drive)
- Tools
- Microscope
- Insert LU01(250/400)
- Insert LU02(500/750)
- Insert LD03(250)
-
Insert LD04(400
- Insert LD05(500)
