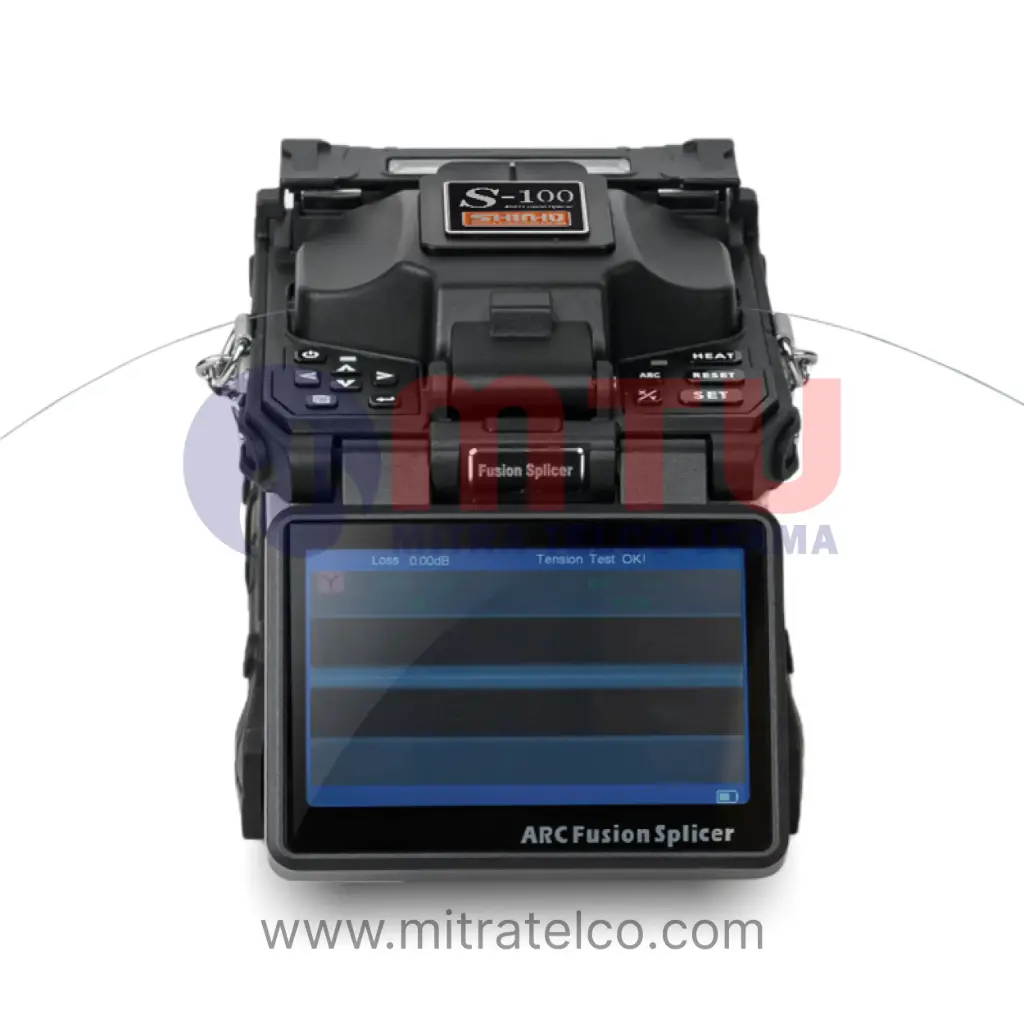

Specifications
- Supports 50–80 μm small diameter fibers (SM/MM/DS/NZDS)
- 6-motor core-to-core alignment system for high accuracy
-
Typical splice loss:
– 50 μm to 50 μm: <0.2 dB
– 80 μm to 50 μm: <0.4 dB - Return loss: >60 dB
- Fast splicing: 6–12 s per splice
- Heating time: 18–26 s (40/60 mm sleeves)
- Fiber magnification: 400× (X or Y view), 200× (X and Y view)
- Display: 5” HD color LCD, dual camera system
- Splicing programs: 100 modes, manual/auto operation
- Battery: Detachable 5200 mAh Li-ion, up to 300 splicing + heating cycles
- Electrode life: >5000 ARC discharges, easy to replace
- Data storage: 10,000 fusion records + 100 images
- Interfaces: USB 2.0, GUI-based menu, loss evaluation & tension test (1.8–2.2 N)
- Dimensions/Weight: 155 × 144 × 155 mm / 2.37 kg (with battery)
- Operating conditions: –10°C to +50°C, up to 5000 m altitude, ≤15 m/s wind
Applications:
- Small diameter fiber splicing (50–80 μm)
- Specialty fiber and optical device manufacturing
- Research and laboratory use
- Telecom and CATV projects requiring precision fiber alignment
