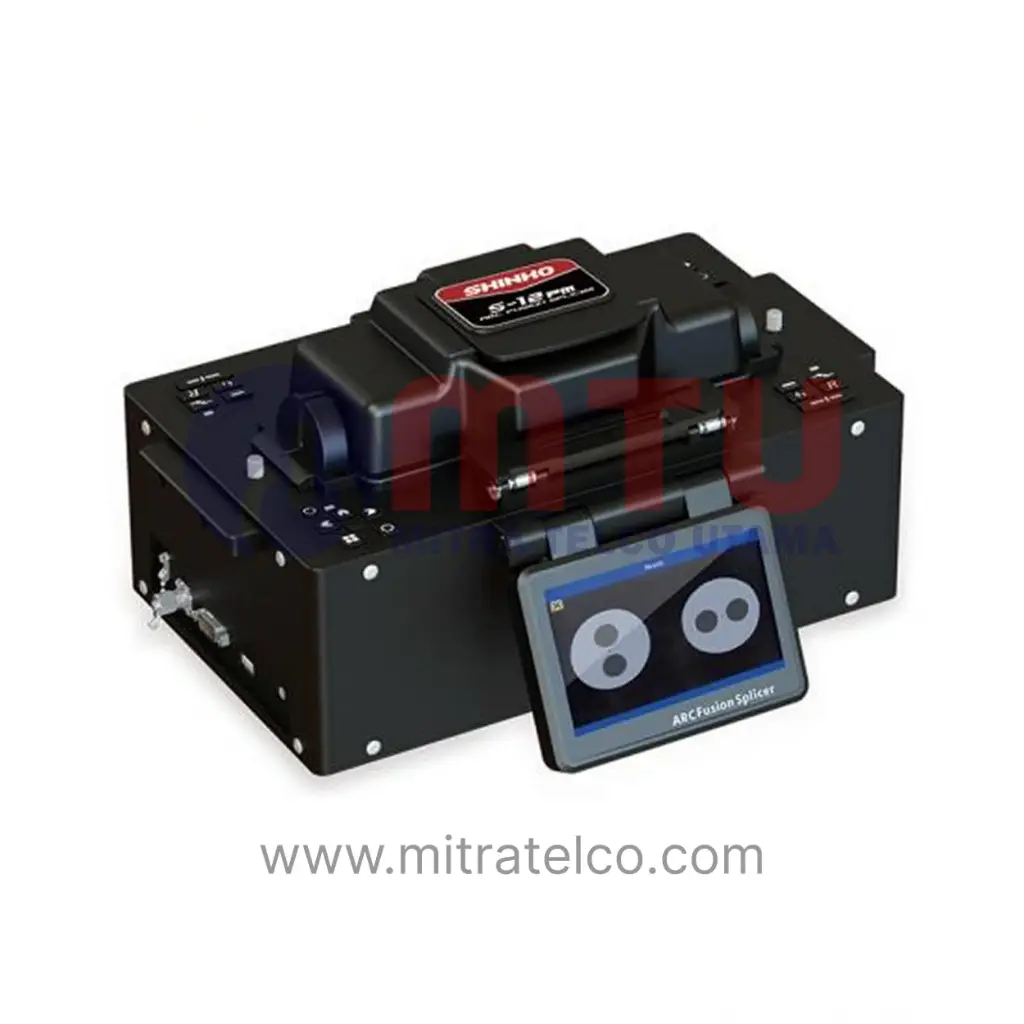

SHINHO S-12 Polarization Maintaining (PM) Fiber Fusion Splicer

Specifications

• Suitable for SM, MM, DS, NZDS, EDF, and PM fibers
• Core-to-core alignment for ultra-low splice loss
• End-view and profile observation with dual imaging for precise alignment
• Real-time ARC calibration for stable and consistent splicing
• Supports 0°, 45°, and 90° PM fiber alignment
• Typical splice loss:
  – SMF: 0.03 dB
  – MMF: 0.02 dB
  – NZDS: 0.05 dB
  – PMF: 0.06 dB
• Splicing time: 20 s (SM/MM), <60 s (PM fiber)
• Heating time: ~25 s (customizable)
• Extinction ratio: up to 36.8 dB (Panda fiber)
• 40 programmable splicing modes, manual/auto operation
• Electrode life: >2000 arcs, easy replacement
• Data storage: 10,000 splice records + 100 images
• Display: 5” HD color LCD monitor
• Interfaces: USB 2.0, RS232, customizable output signals
• Dimensions/Weight: 330 × 205 × 172 mm / 6.3 kg
• Operating conditions: –10°C to +50°C; storage –20°C to +60°C
• Power supply: AC 100–240 V input, DC 12 V 10 A output

Applications:

• PM fiber splicing (Panda, bow-tie, elliptical)
• Specialty fiber networks and EDF splicing
• Telecom, CATV, and research projects
• High-precision optical communication systems
