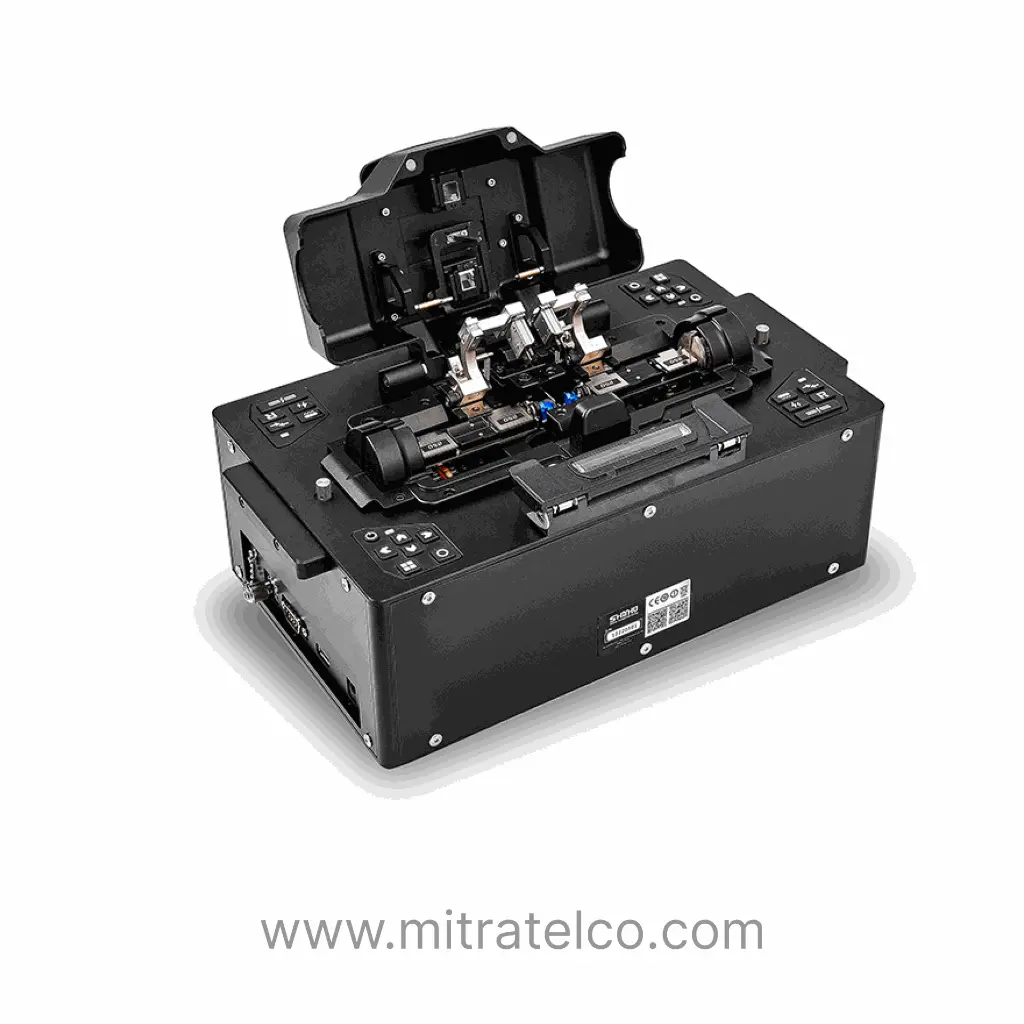

SHINHO S-22 Multi-Core Fiber Fusion Splicer

Specifications

• Supports 125–250 μm multi-core fibers (2, 4, 6, 7, 8 cores) and single fibers (SM/MM/DS/NZDS/EDF)
• Dual fiber end imaging for direct end-face viewing and higher alignment precision
• Fiber outline + end-face dual-mode alignment; supports different fiber types splicing each other
• Real-time ARC calibration, adjustable arc position
• Automatic splicing with wind-proof cover operation
• 40 splicing modes; manual and automatic operation/heating
• Splicing loss (typical):
  – SMF: 0.03 dB
  – 4-core: 0.05 dB/channel
  – 7-core: 0.15 dB/channel
• Splicing time: <20 s (single core), <2 min (multi-core)
• Heating time: ~30 s, user-defined settings supported
• Battery: Detachable 6800 mAh Li-ion, >200 splices per charge
• Electrode life: >2000 arcs, easily replaceable
• Storage: 10,000 splice records + 100 images
• Display: 5” HD color LCD monitor
• Interfaces: USB 2.0, RS232, customizable output signals
• Dimensions/Weight: 330 × 205 × 172 mm / 6.4 kg
• Operating Environment: –10°C to +50°C, 0–5000 m altitude, ≤15 m/s wind
• Power Supply: AC 100–240 V input / DC 11–13.5 V, 5A output

Applications:

• Multi-core optical fiber splicing (2–8 cores)
• Telecom and FTTx network deployment
• Specialty fibers including EDF (Erbium-Doped Fiber)
• Research and development in advanced optical systems

Packing List

1. MCF Fusion Splicer
2. Fiber Cleaver
3. Fiber Stripper
4. Fiber Holders
5. Spare Electrodes
6. User Manual (USB drive)
7. Power Adapter
8. Power Cord
9. Carrying Case
