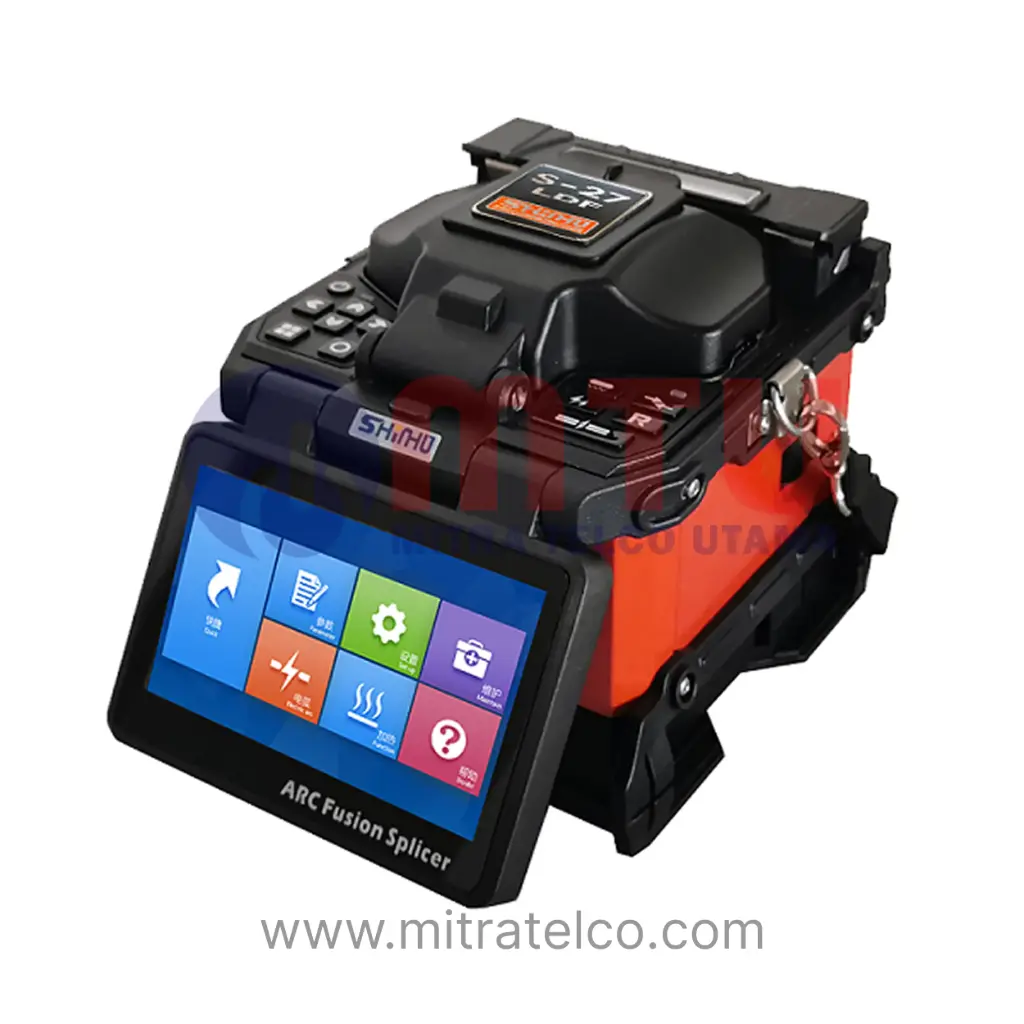

SHINHO S-27 Large Diameter Fiber (LDF) Specialty Fiber Fusion Splicer

The SHINHO S-27 is a compact and rugged specialty fiber fusion splicer designed for Large Diameter Fibers (125–400 μm). With clad-to-clad alignment technology, fast splicing and heating times, and robust environmental resistance, it ensures precise and low-loss splicing for telecom, manufacturing, and R&D applications.

This combination does not exist.

Specifications

Supports cladding diameter 125–400 μm, coating diameter 250–1000 μm
Applicable to SM (G.652), MM (G.651), DS (G.653), NZDS (G.655) fibers
Typical splice loss:
– SM: 0.02 dB
– MM: 0.01 dB
– DS: 0.04 dB
– NZDS: 0.04 dB
Return loss: >60 dB
Splice time: 14 s
Heating time: 24 s (40/60 mm sleeves)
Splicing programs: 40 groups, manual/automatic operation
Display: 5” HD color LCD, dual high-sensitivity camera
Fiber magnification: 120× (X/Y), 60× (X&Y dual view)
Data storage: 4000 fusion records + 100 images
Loss evaluation & tension test: 1.8–2.2 N supported
Electrode life: >3000 arcs (125 μm), >1000 arcs (>125 μm)
Interface: USB 2.0, GUI-based menu, software upgrade & record export

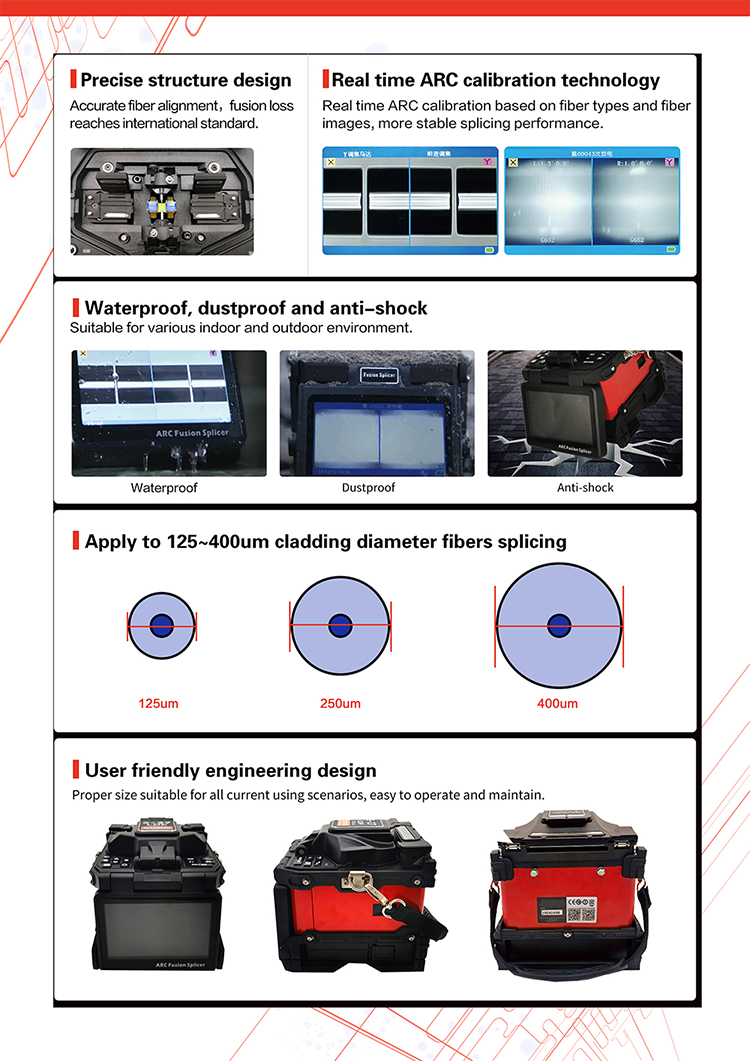

Ruggedized design: water-resistant, dustproof, anti-shock
Dimensions/Weight: 155 × 144 × 155 mm / 1.8 kg
Operating conditions: –10°C to +50°C, altitude up to 5000 m, ≤15 m/s wind

Applications:

Large Diameter Fiber (LDF) splicing
Telecom and optical manufacturing
Research and specialty fiber development
Field and laboratory use requiring compact portability
