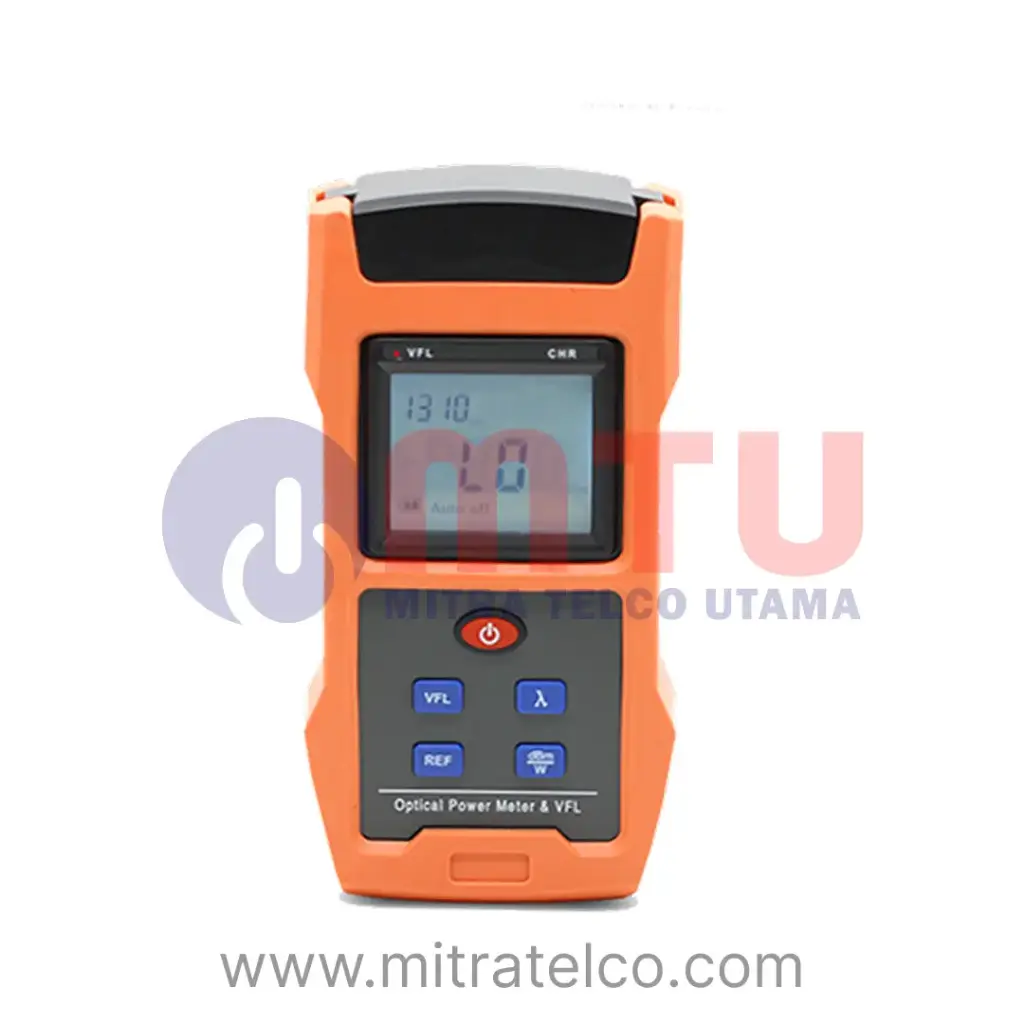

SHINHO X-0563 Optical Power Meter & VFL

Specifications

• Two-in-one design: Optical Power Meter + Visual Fault Locator
• Self-calibration function with wavelength memory
• High accuracy & sensitivity with linear measurement performance
• Low power consumption with long standby time
• Rugged rubber shell for field protection
• USB charging port, supports 18650 Li-ion battery
• Connectors: FC/SC/ST & 2.5 mm universal
• Display resolution: 0.01 dB with multiple units (dBm, mW, µW)

Optical Power Meter (OPM):

• Detector type: InGaAs
• Calibrated wavelengths: 850, 1300, 1310, 1490, 1550, 1625 nm
• Measurement range: +6 to –70 dBm
• Accuracy: ±0.2 dB
• Linearity: ±0.1 dB

Visual Fault Locator (VFL):

• Wavelength: 650 nm ± 20 nm
• Output power options: 1 mW / 10 mW / 20 mW / 30 mW
• Range: up to 12 km (SM fiber)
• Output modes: CW / 2 Hz pulsed
• Laser safety rating: Class 2

General:

• Power supply: 18650 Li-ion battery (USB rechargeable)
• Auto-off: 10 minutes
• Working time: >200 h (OPM only), ≥50 h (OPM + 10 mW VFL)
• Operating temperature: –10 °C ~ +45 °C
• Dimensions / Weight: 160 × 75 × 10 mm / 250 g

Applications

• Telecommunication network maintenance
• CATV maintenance
• Optical fiber laboratory testing
• Fiber optic sensor systems

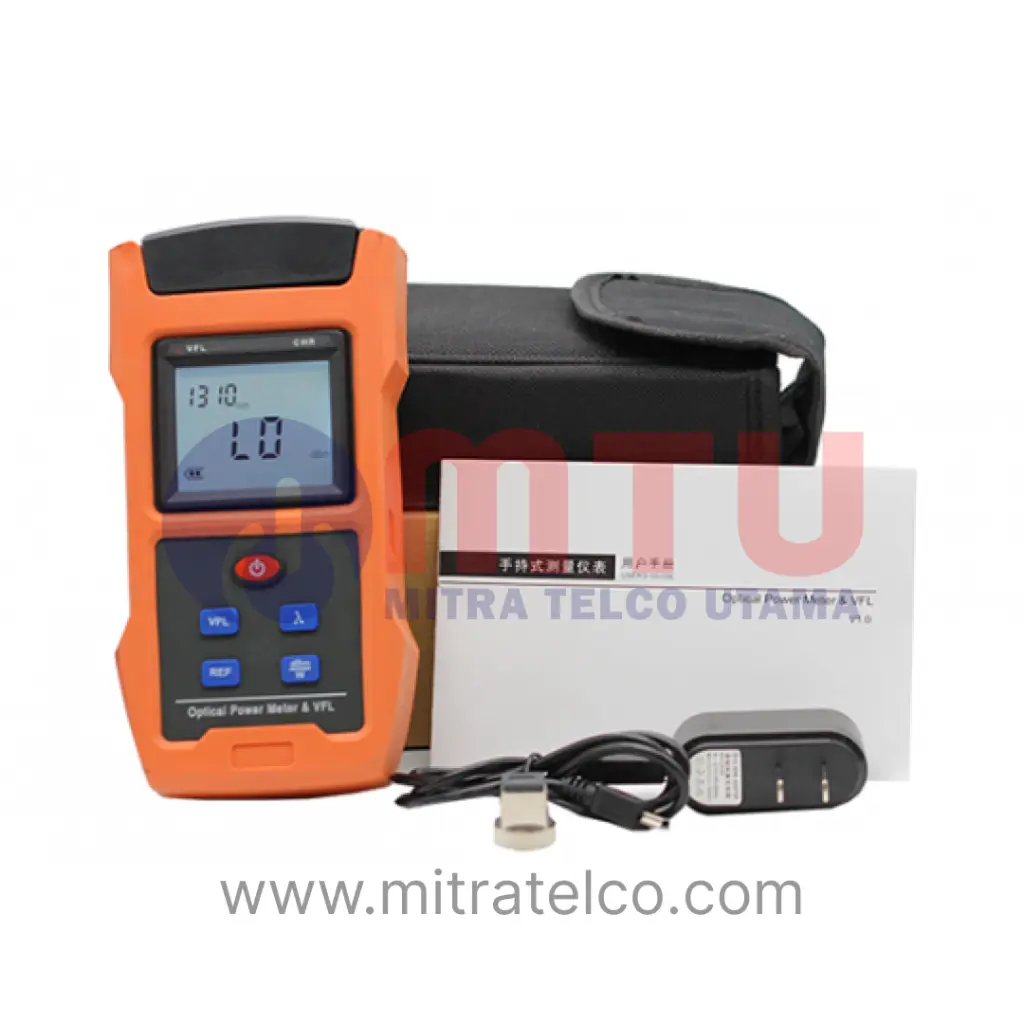

Packing List

1. X-0563 Optical Power Meter & VFL main unit
2. SC Connector
3. FC Connector
4. 18650 Li-ion battery
5. USB charging cable
6. User manual
7. Carrying case
