SHINHO X-2006 Fiber Inspection Microscope (200X & 400X 2-in-1)

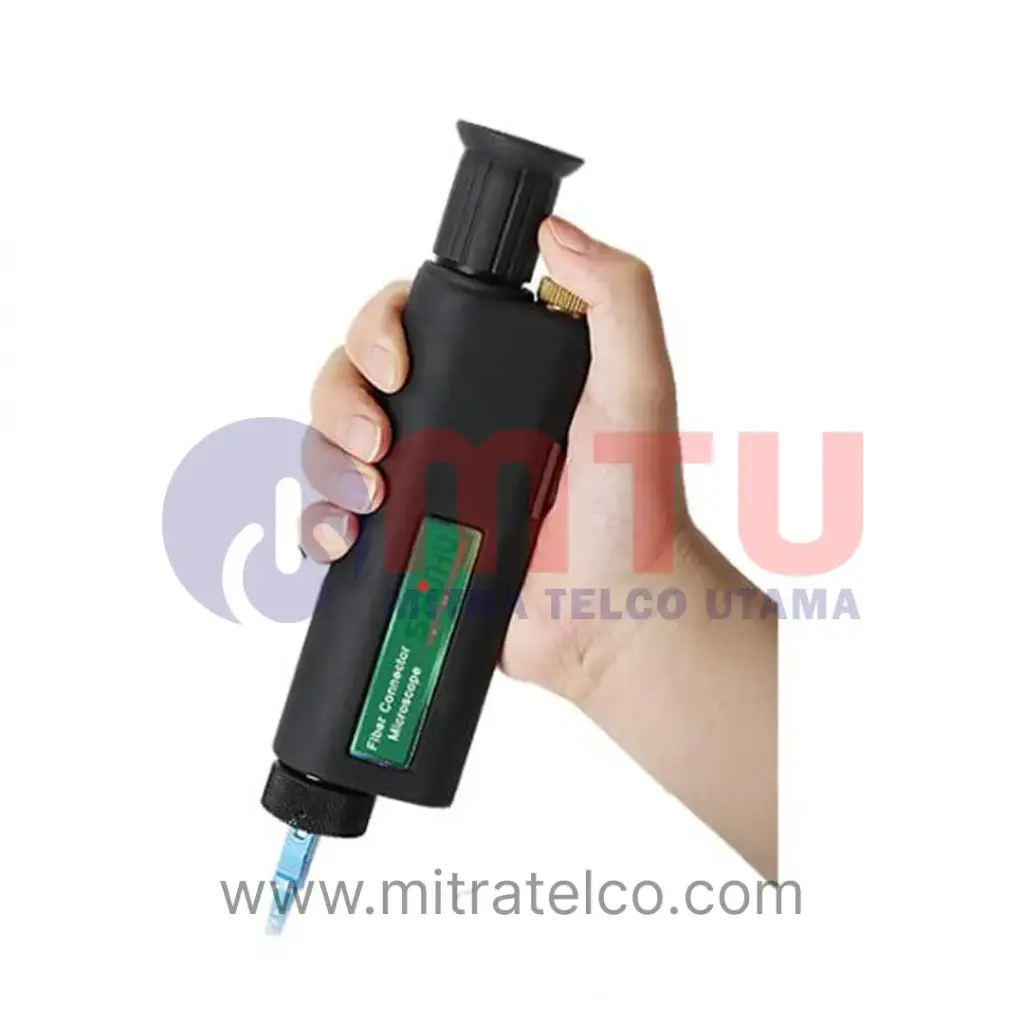

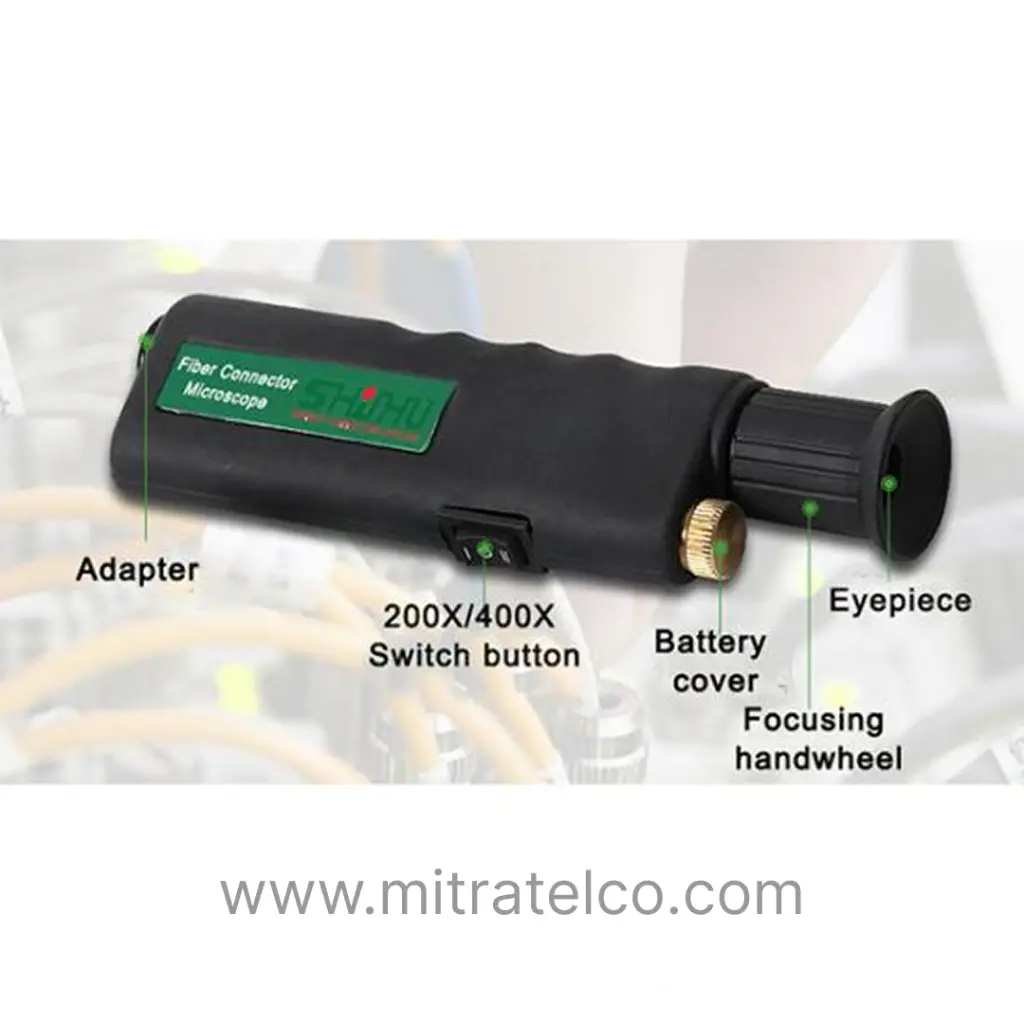

The SHINHO X-2006 is a high-precision fiber inspection microscope with dual magnification (200X & 400X) in one device. Designed with dual illumination and a built-in IR-laser attenuation filter, it ensures safe and accurate inspection of fiber endfaces. Its interchangeable adapters make it versatile for multiple connector types.
Rp 0.00 Rp 0.00
Rp 1.00

This combination does not exist.

SpecificationsPacking List

Specifications

  • Magnification: 200X & 400X switchable
  • Light source: White LED (lifetime 100,000 hrs, ~40 hrs battery operation)
  • Safety filter: Built-in IR attenuation filter

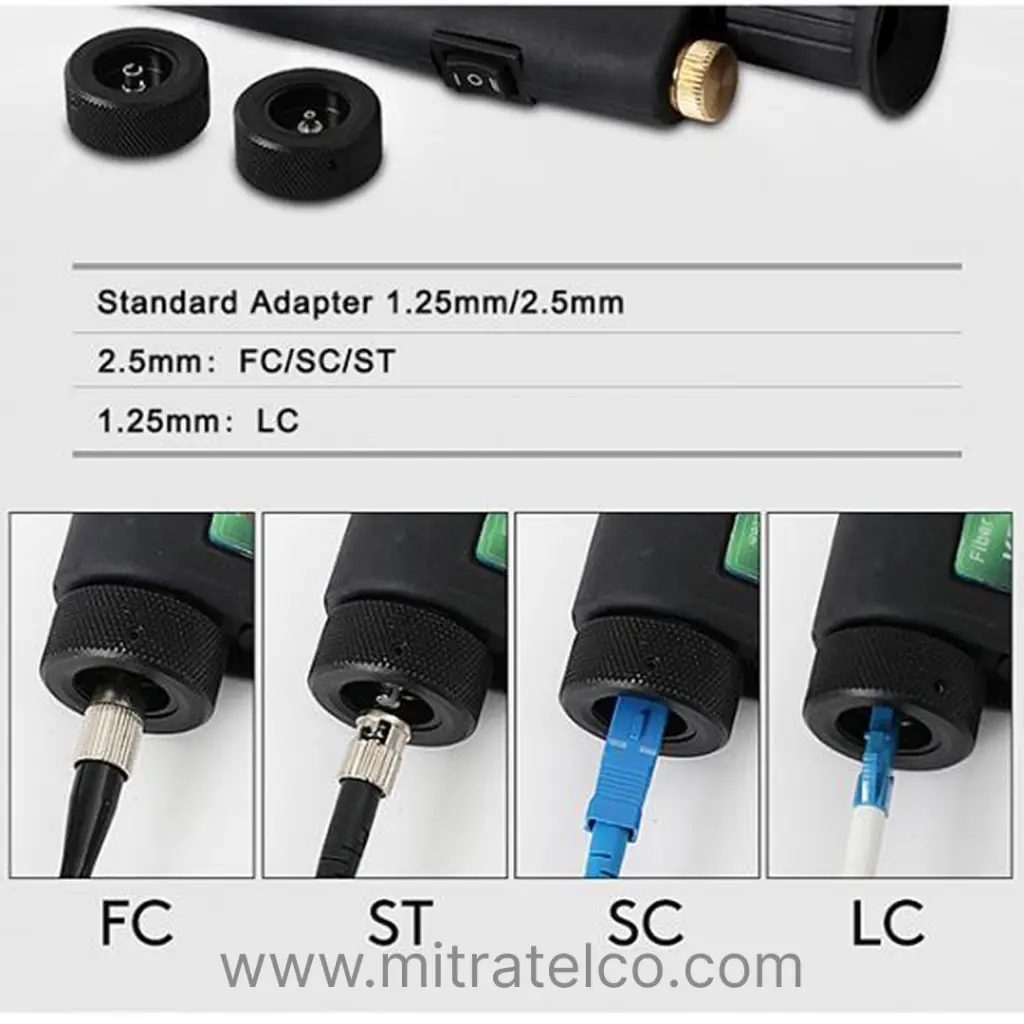

  • Connector compatibility: FC, SC, LC, ST (optional)
  • Adapter interface: 1.25 mm & 2.5 mm universal adapters (included)
  • Power source: 3 × AAA batteries

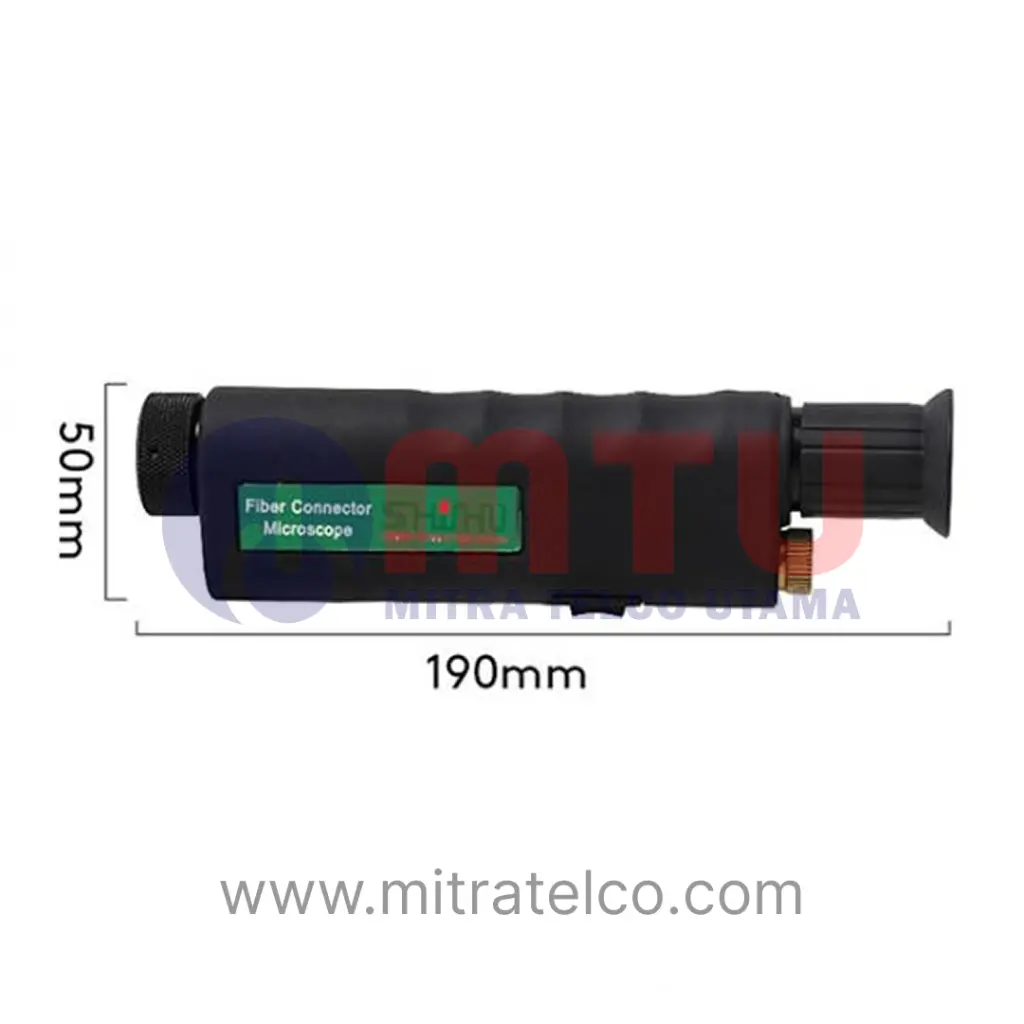

  • Dimensions: 225 × 60 × 42 mm

Applications:

  • Endface inspection of single-mode and multimode fibers
  • Ensuring connector cleanliness and quality before splicing or testing
  • Field maintenance, installation, and lab use

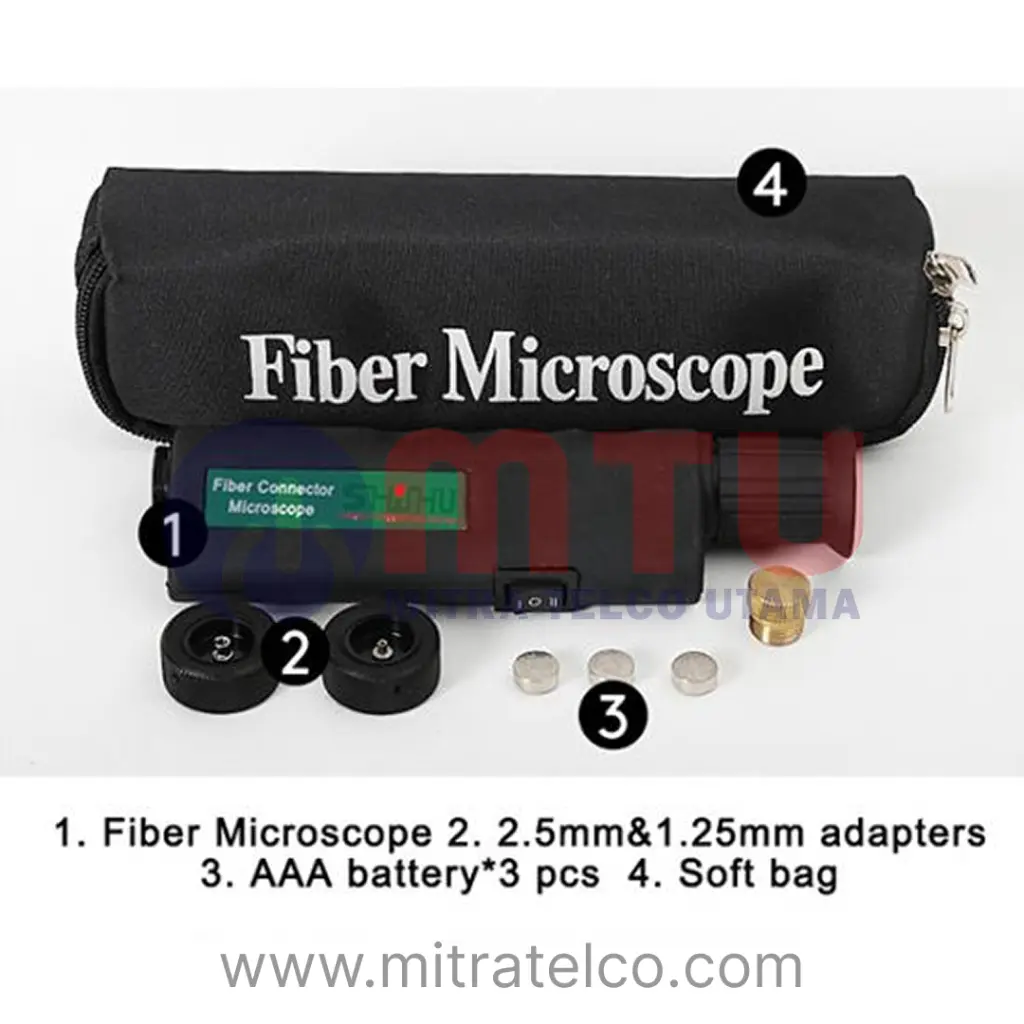

Packing List

  1. Microscope unit
  2. 1.25 mm & 2.5 mm adapters
  3. nylon bag
  4. 3 × AAA batteries, packing box
