SHINHO X-4007E Visual Fault Locator (VFL)

The SHINHO X-4007E is a compact and rugged Visual Fault Locator designed for fiber continuity testing and fault detection in both single-mode and multimode fibers. With multiple output power options and universal connector design, it is ideal for telecom, CATV, cabling, and general fiber-optic projects.

This combination does not exist.

Specifications

Wavelength: 650 nm ± 20 nm
Output Power Options: 1 mW, 10 mW, 20 mW, 30 mW, 50 mW
Dynamic Distance Range:
– 1 mW: 2 ~ 5 km
– 10 mW: 8 ~ 12 km
– 20 mW: 12 ~ 15 km
– 30 mW: 18 ~ 22 km
– 50 mW: 22 ~ 30 km
Operation Modes: CW (Continuous Wave) & Pulsed
Fiber Type: Singlemode & Multimode

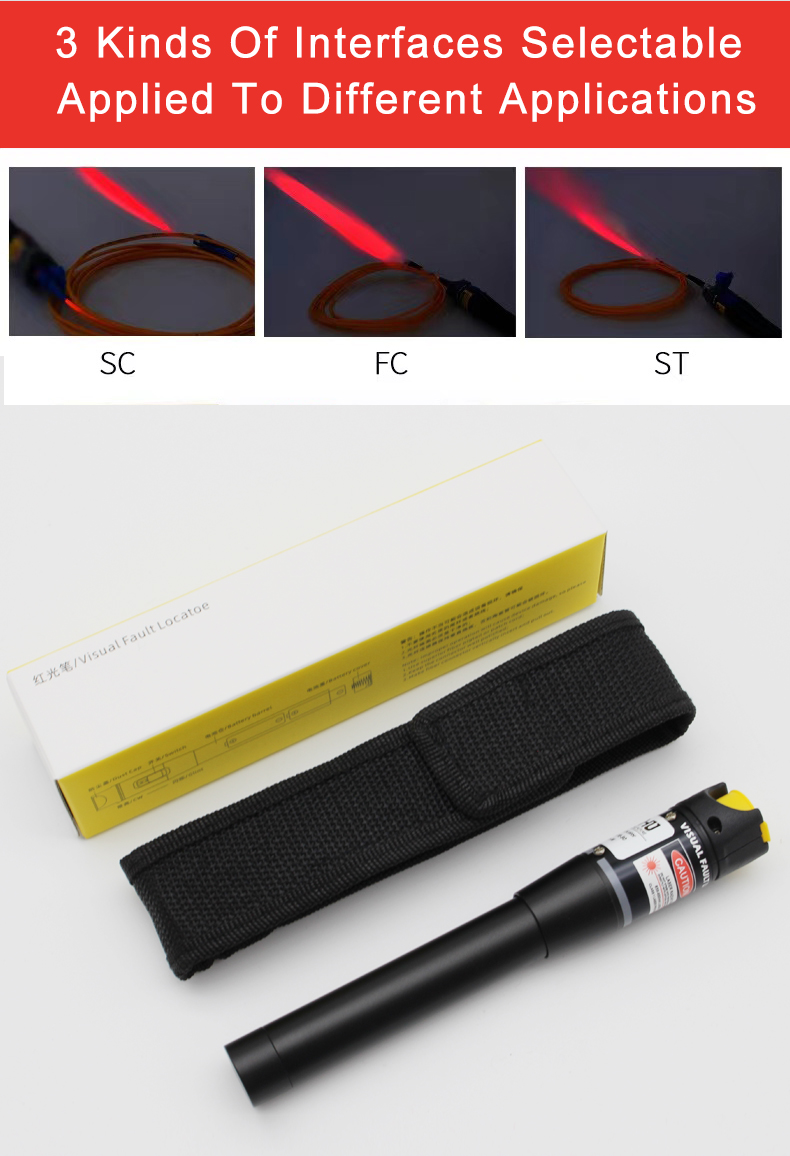

Connector: Universal 2.5 mm port
Power Supply: 2 × AA batteries
Operating Temp: –10°C ~ +50°C (<90% RH)
Storage Temp: –20°C ~ +60°C (<90% RH)
Dimensions/Weight: 210 × 73 × 30 mm / 150 g
Durability: Rugged design for field applications

Applications:

Telecom engineering & maintenance
CATV network troubleshooting
Optical cabling systems testing
General fiber-optic fault location
