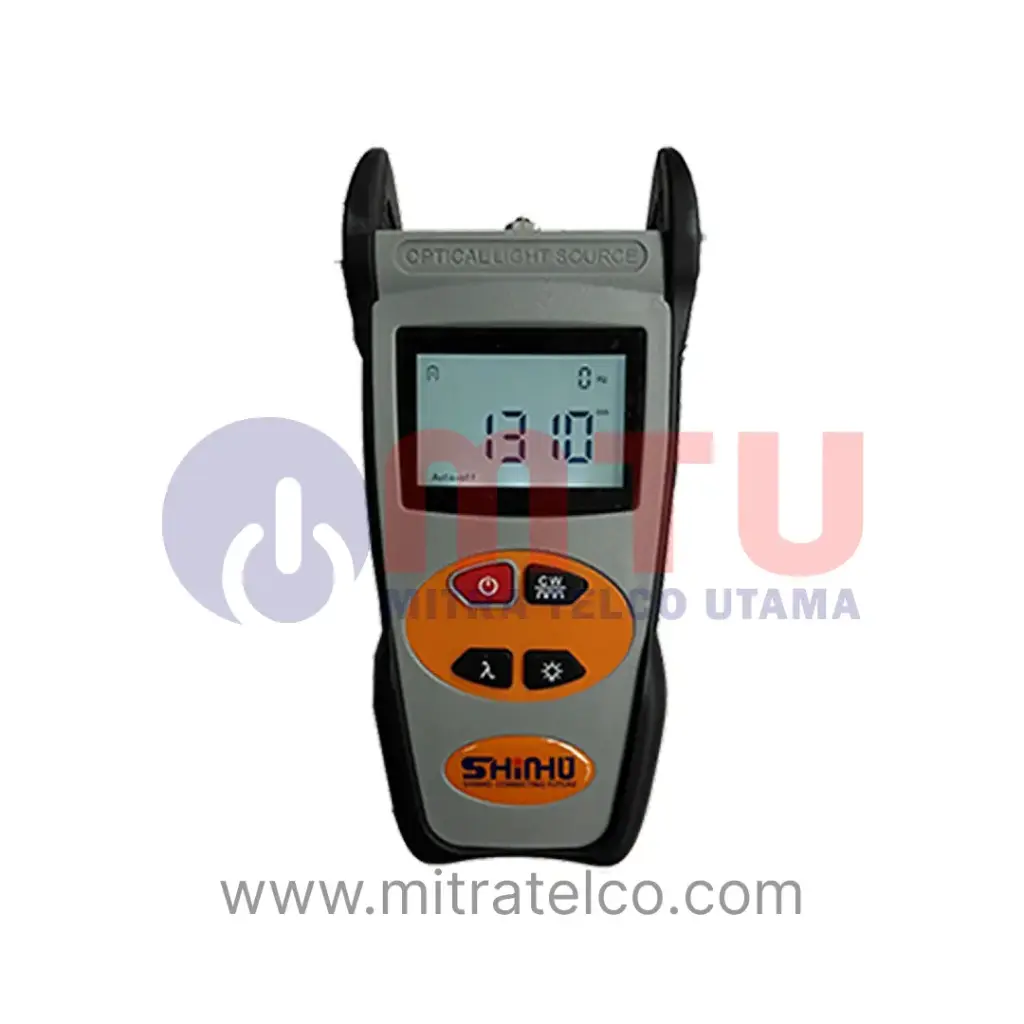

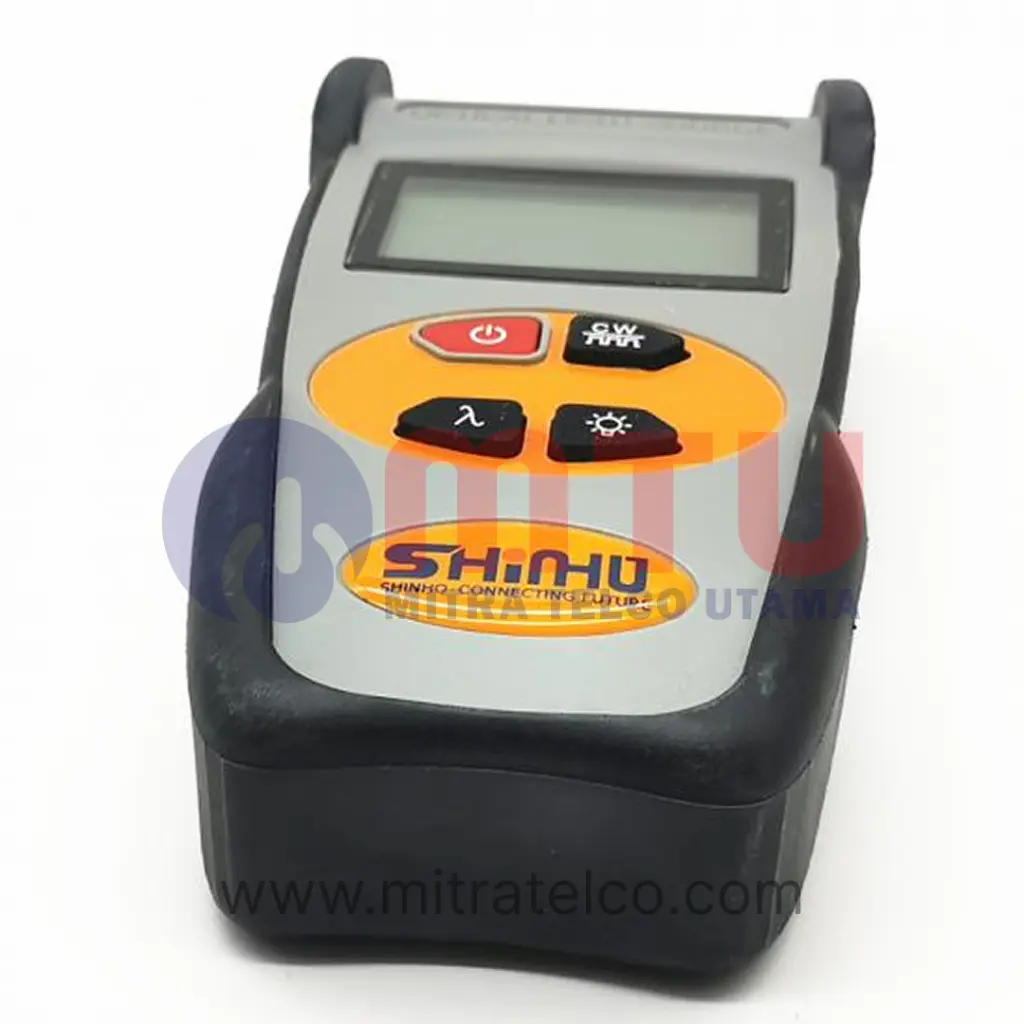

SHINHO X-5002 Handheld Optical Light Source

Specifications

• Wavelength options: 850/1300 nm, 1310/1550 nm (up to 4 wavelengths)
• Tone generation: 270 Hz, 1 kHz, 2 kHz
• Output power displayed clearly on LCD screen
• Intelligent backlight control for energy saving
• Compact and lightweight with long battery life (45 hrs continuous use)
• Supports FC/PC standard port or FC/SC/ST interchangeable connectors
• Operating Wavelengths: 1310/1550 nm (others on request, max 5 wavelengths)
• Applicable Fiber: Singlemode & Multimode
• Laser Type: FP-LD (others available on request)
• Output Power: –7 dBm (adjustable, other options available)
• Stability: ±0.1 dB (15 min, 20°C); ±0.05 dB (30 min, 20°C)
• Modulation: CW / 270 Hz / 1 kHz / 2 kHz

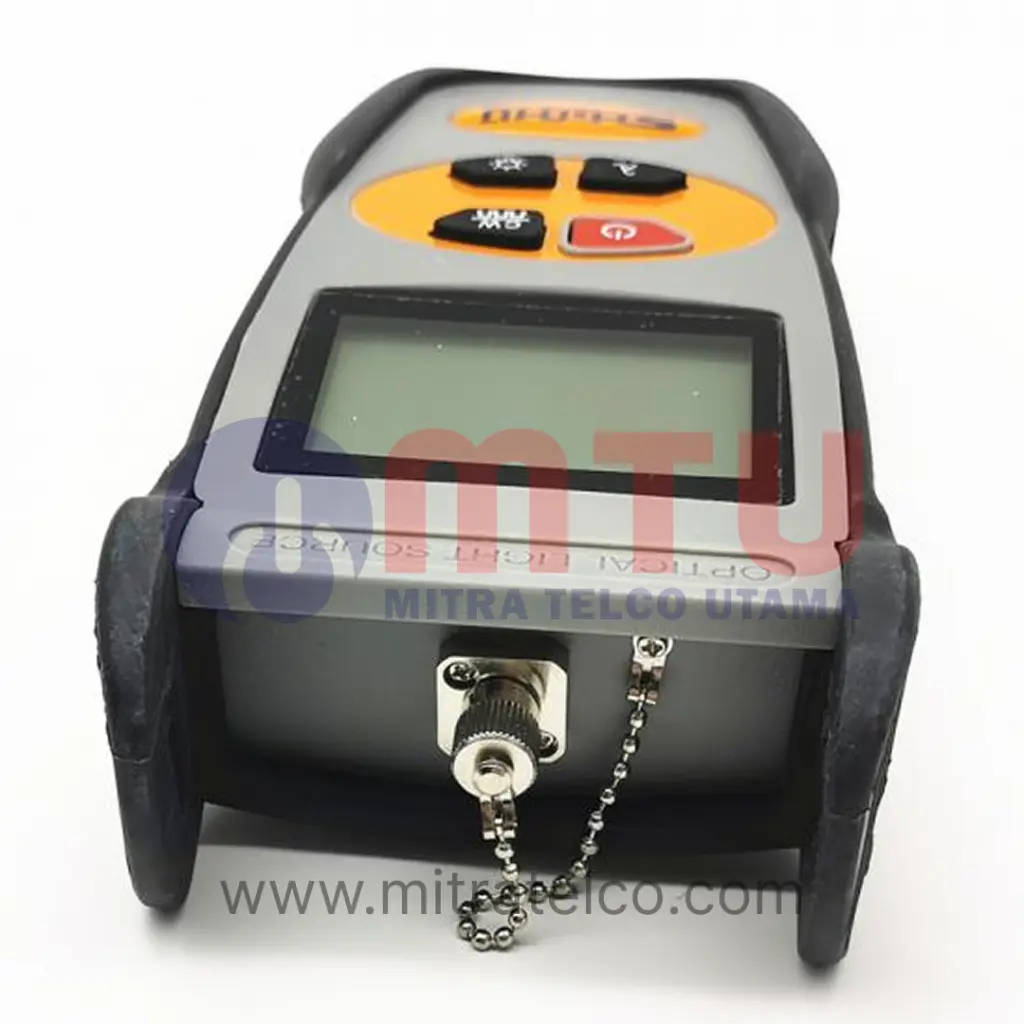

• Fiber Port: FC/PC or interchangeable FC, SC, ST
• Power Supply: 3 × AA 1.5V alkaline batteries
• Battery Life: ≥ 45 hours continuous operation
• Operating Temp: –10°C ~ +60°C
• Storage Temp: –25°C ~ +70°C
• Dimensions/Weight: 200 × 90 × 50 mm / 285 g

Applications:

• Optical network construction and maintenance
• FTTx, CATV, and LAN testing
• Used together with optical power meters for accurate link loss measurements

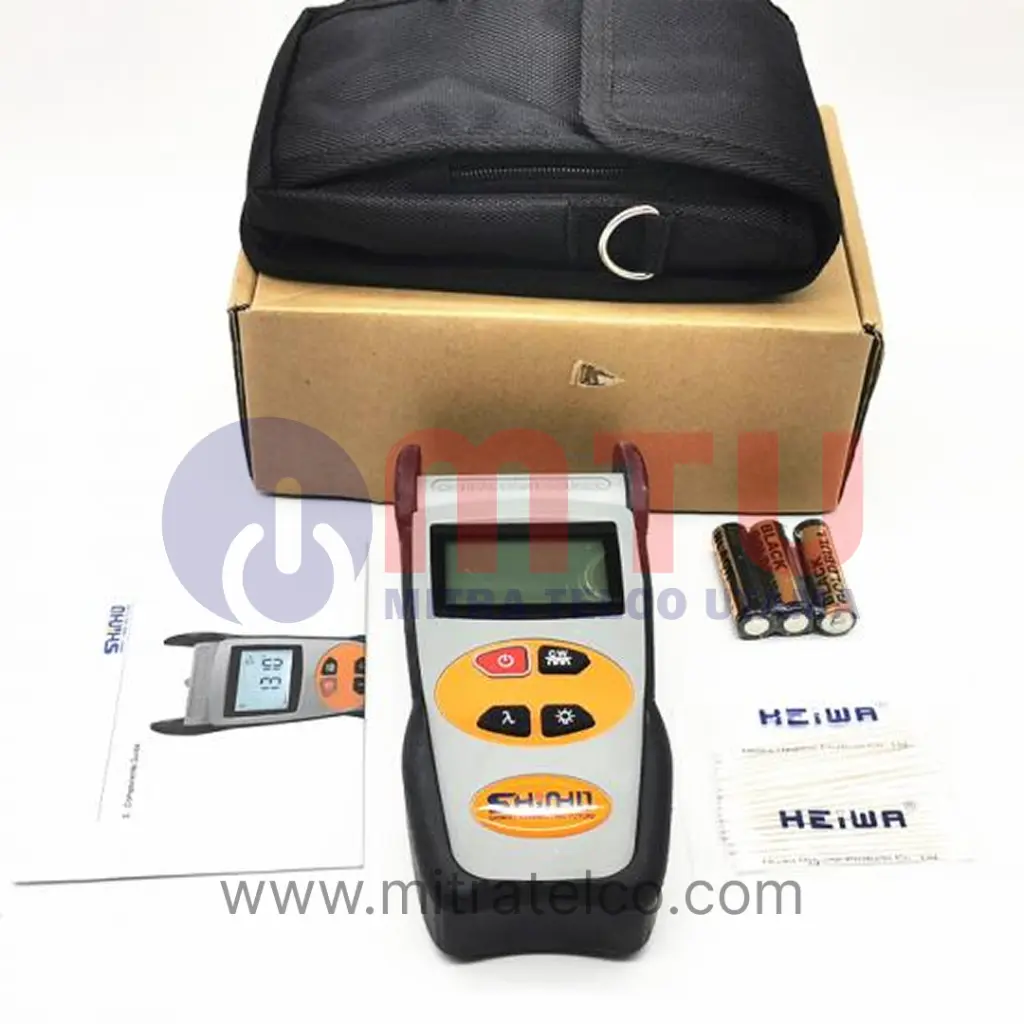

Packing List

1. X-5002 Optical Light Source unit
2. User manual
3. Protective holster
4. AA batteries
5. Cotton swabs
