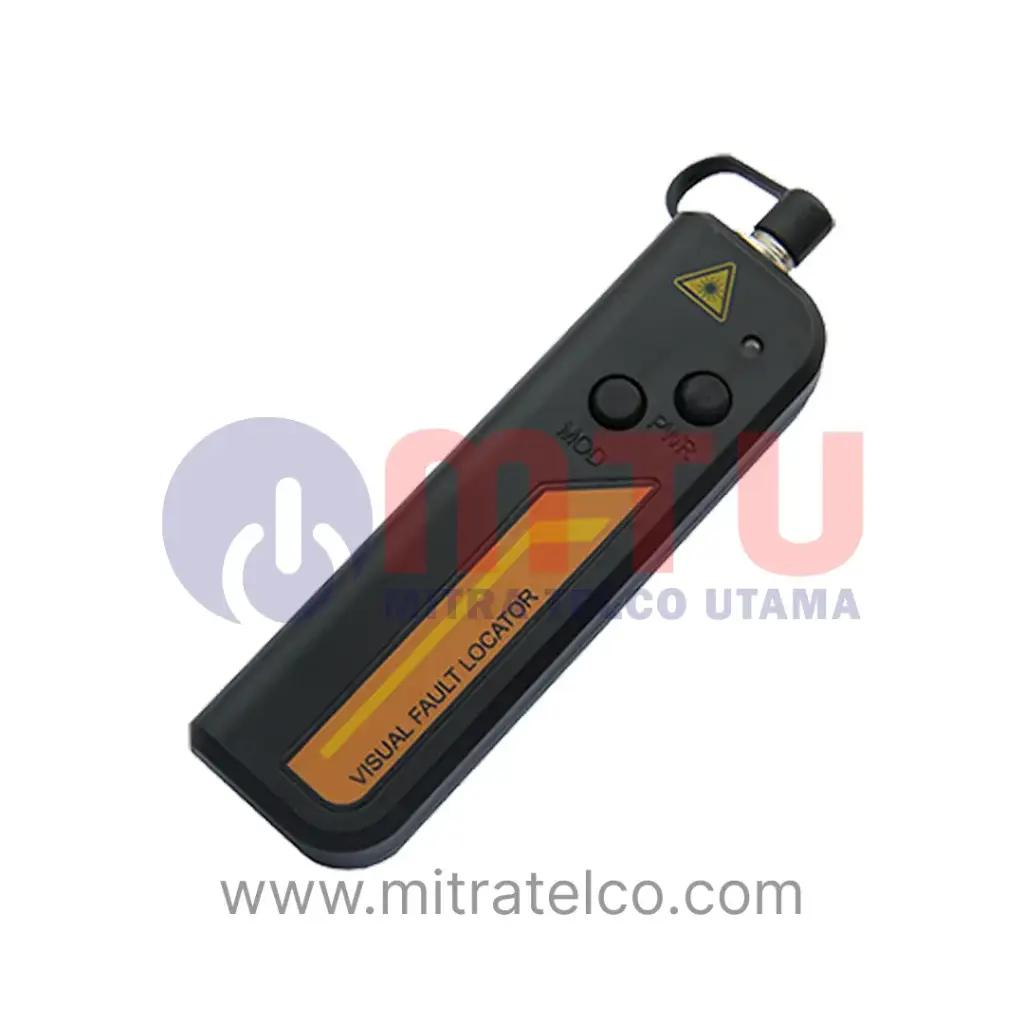

SHINHO X-5003 Mini Visual Fault Locator (VFL)

Specifications

• Wavelength: 650 nm ± 10 nm
• Output Power: 1 mW or 10 mW
• Emitter Type: FP-LD
• Connector: 2.5 mm universal port (optional FC–1.25 mm hybrid adapter)
• Operation Modes: CW & Pulse (2 Hz)
• Battery Life:
  – ≥45 h @ 1 mW
  – ≥15 h @ 10 mW (2 × AAA batteries)
• Low Battery Warning: Yes
• Durability: Re-changeable ceramic tube
• Dimensions/Weight: 115 × 45 × 27 mm / 50 g
• Operating Temp: –10°C ~ +60°C
• Storage Temp: –25°C ~ +70°C

Packing List

1. VFL unit
2. User manual
3. Soft carrying case
4. AAA batteries
