Specifications

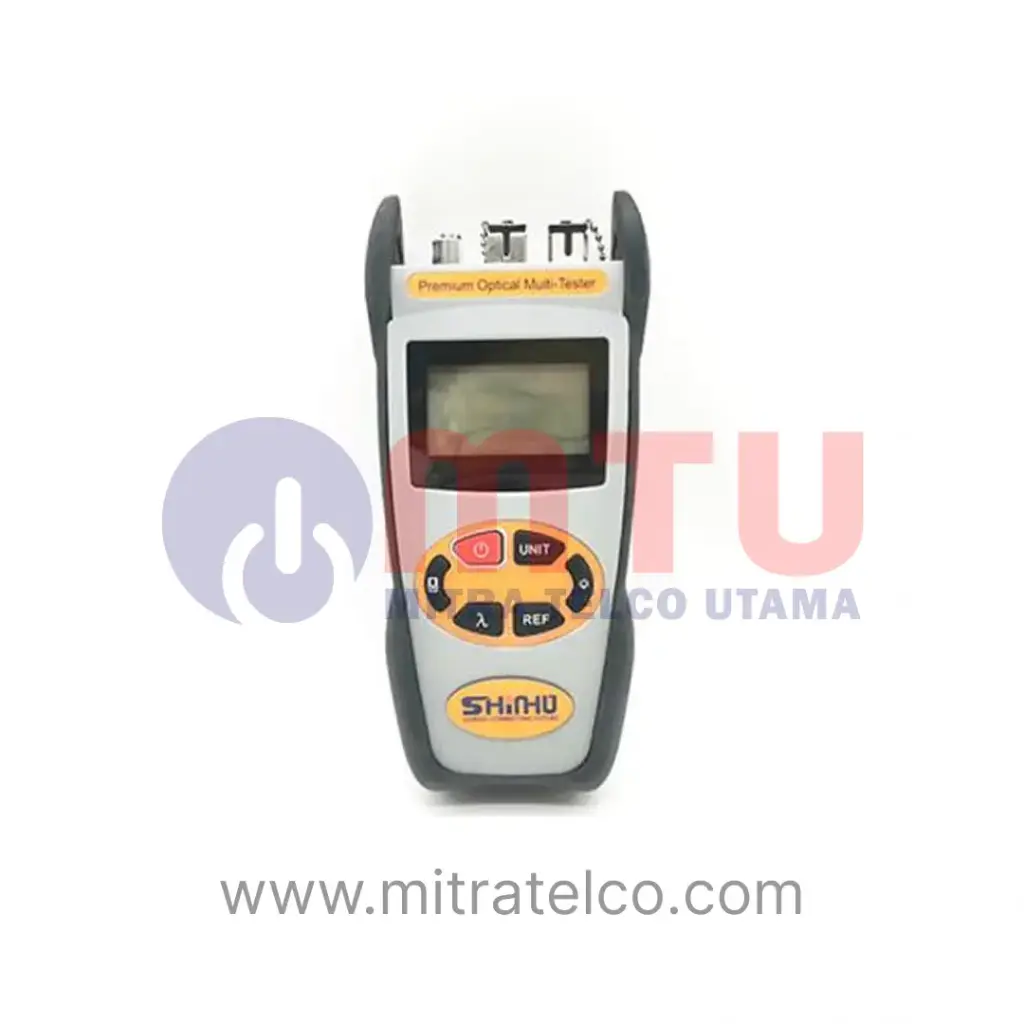

- 3-in-1 tester: Optical Power Meter, Light Source, Visual Fault Locator
- Automatic wavelength identification (OPM ↔ OLS)
- OLS modulation frequencies: 270 Hz, 1 kHz, 2 kHz
- Data storage capacity: up to 1000 test records
- Long battery life: >240 hours continuous operation
- Easy operation with rugged handheld design
- Applications: Telecom maintenance, CATV testing, Fiber optic labs, General fiber measurement
Specifications
Optical Power Meter Module:
- Detector type: InGaAs
-
Measurement range:
– X-5011A: –70 ~ +6 dBm
– X-5011C: –50 ~ +26 dBm - Uncertainty: ±5%
- Resolution: 0.01 dB
- Calibrated wavelengths: 850, 1300, 1310, 1490, 1550, 1625 nm
- Data storage: 1000 records
- Optical connector: FC/SC/2.5 mm universal (LC via FC–LC hybrid adaptor)
Optical Light Source Module (Optional):
- Emitter type: FP-LD
- Wavelengths: 1310/1550 nm or 850/1300 nm
- Output power: ≥ –7 dBm
- Spectral width: ≤ 10 nm
- Stability: ±0.05 dB/15 min, ±0.1 dB/8 h
- Connector: FC/SC (LC via FC–LC hybrid adaptor)
Visual Fault Locator (Optional):
- Wavelength: 650 ±10 nm
- Output power: 1 mW or 10 mW
General:
- Power supply: 3 × AA 1.5 V batteries
- Auto-off: 10 min
- Operating temperature: –10 ~ +60 °C
- Storage temperature: –25 ~ +70 °C
Applications:
- Telecom maintenance
- CATV network testing
- Fiber optic lab testing
- General fiber optic measurement
