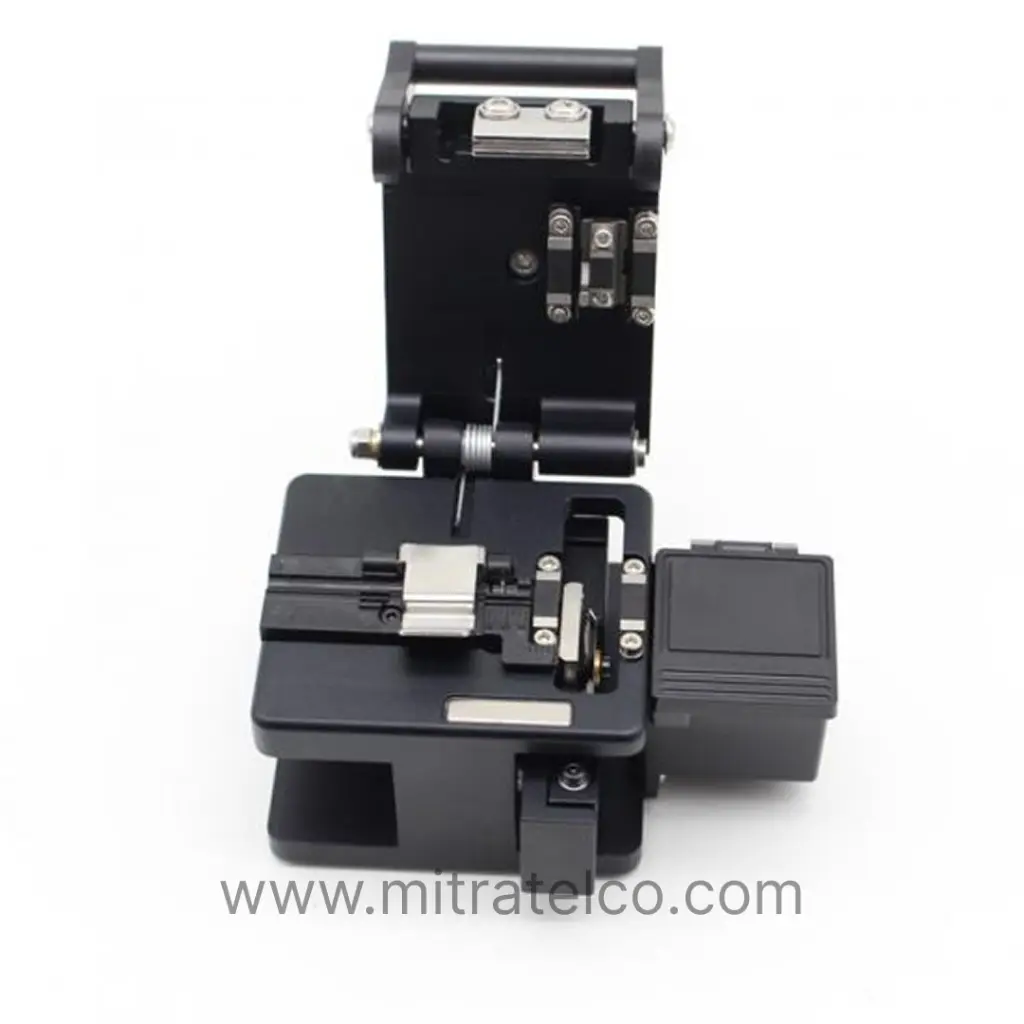

SHINHO X-50F High Precision Fiber Cleaver for PM Fiber

The SHINHO X-50F is a high-precision fiber cleaver designed for both single tube and ribbon fibers, delivering stable performance with a blade lifetime of over 48,000 cleaves. Compact and lightweight, it provides reliable cleaving for PM fiber and other optical applications, making it an ideal tool for telecom, CATV, and laboratory environments.

This combination does not exist.

Specifications

Supports 125 μm bare fibers, coating diameters 0.25–0.9 mm
Applicable to single fibers and ribbon fibers (exchangeable holders)
Cleave length: 5–20 mm
Typical cleave angle: 0.7°
Long blade life: >48,000 cleaves
Manual operation, easy maintenance
Compact and portable: 63 × 76 × 63 mm / 380 g

Applications:

PM fiber cleaving
Telecom and CATV projects
Ribbon and single fiber preparation for fusion splicing
Research and optical component manufacturing

Packing List

X-50F cleaver
fiber scrap collecting box
screwdriver
user manual
carrying bag
