INNO Instruments Cable & Antenna Analyzer View900

Name: INNO Instruments Cable & Antenna Analyzer View900
Availability: InStock

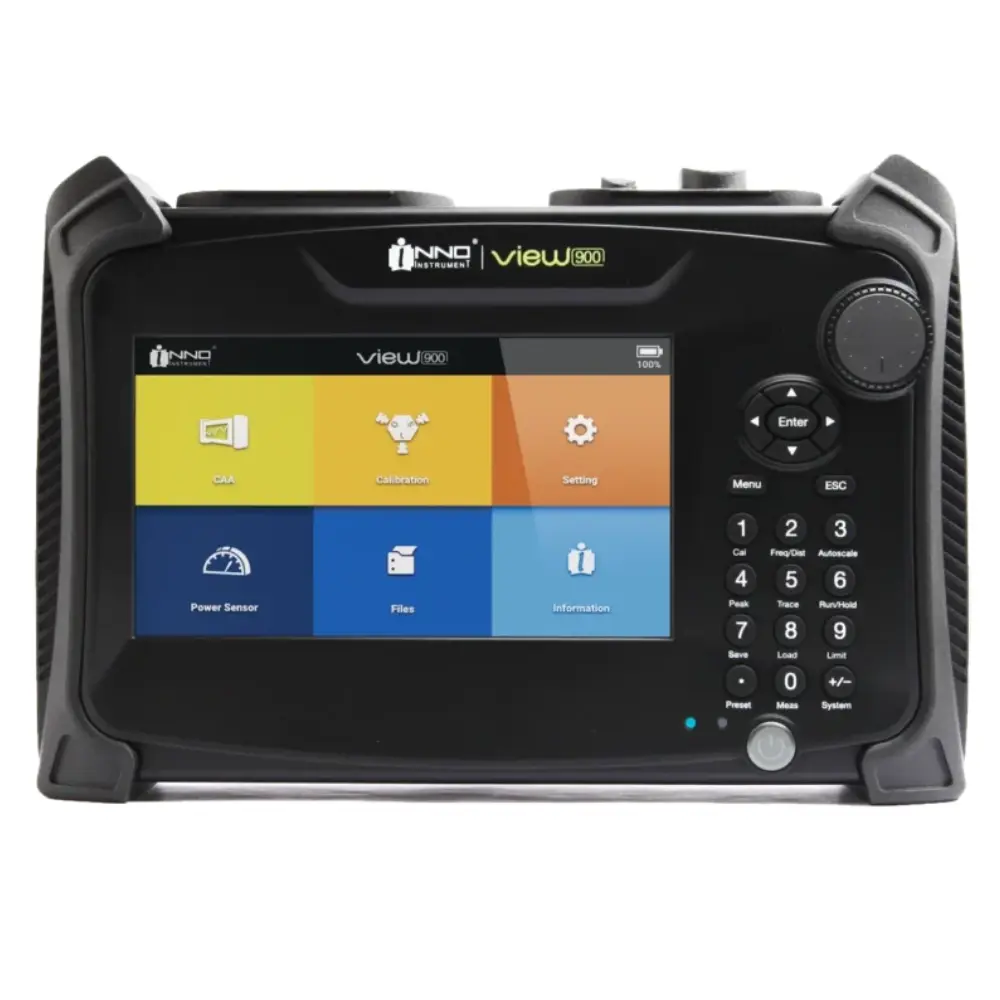

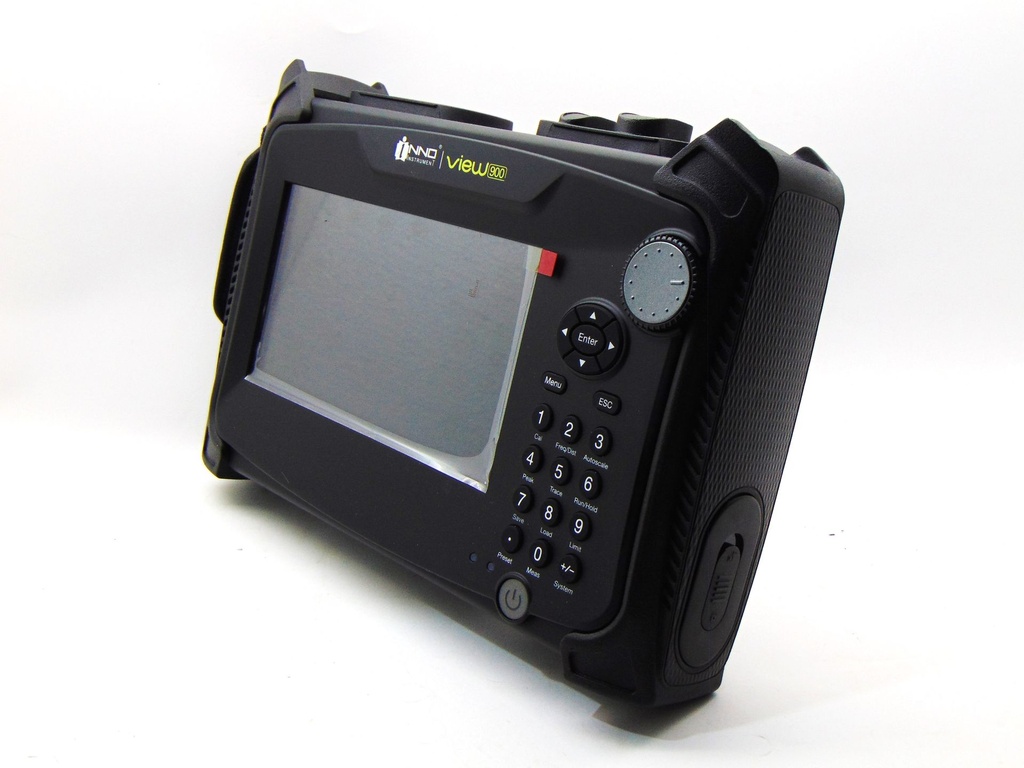

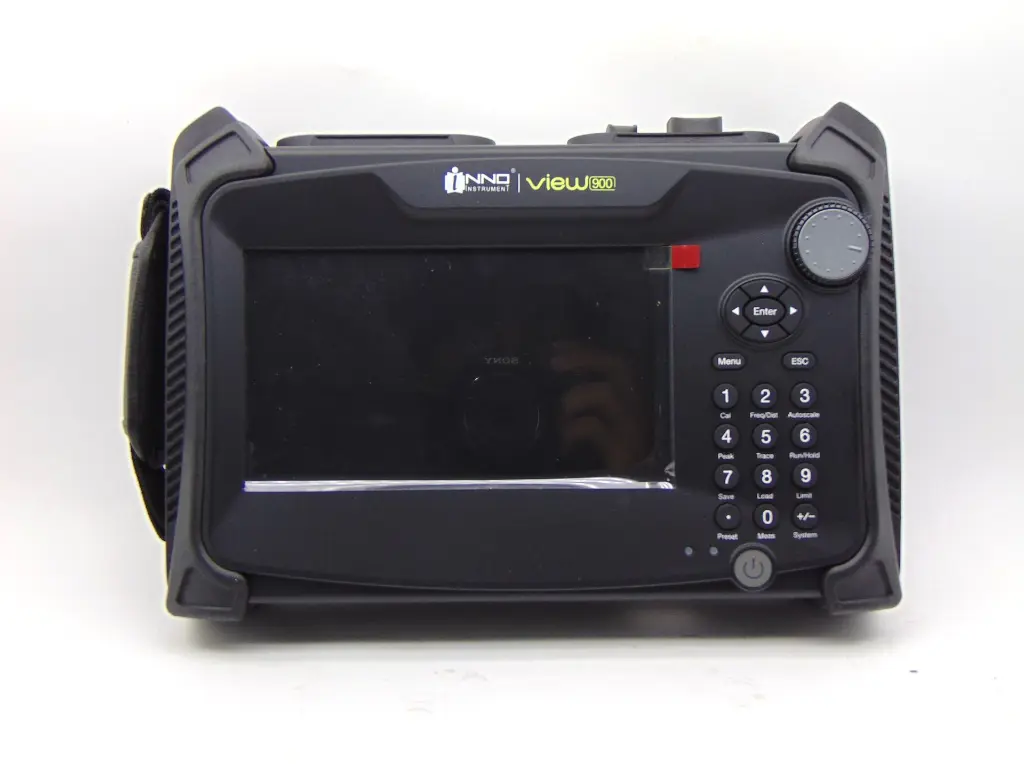

The INNO Instrument VIEW900 is a compact, lightweight handheld cable and antenna analyzer designed for installation, maintenance, and troubleshooting of wireless base stations and RF transmission lines. Covering a wide frequency range from 5 MHz to 6 GHz, the VIEW900 enables technicians to quickly detect defects, mismatches, and losses in feeder cables and antenna systems.

With its intuitive touchscreen interface, sunlight-readable 7-inch display, and long battery operating time, the VIEW900 is optimized for daily field operation. It integrates multiple RF measurement functions into a single portable unit, allowing fast fault localization and accurate performance verification directly on site.

Specifications

Primary Application: Cable & antenna analysis
Frequency Range: 5 MHz to 6 GHz
Core Measurements: Return Loss, VSWR, Cable Loss, Distance-to-Fault (DTF), Smith Chart
Display: 7-inch wide, sunlight-readable color LCD (touchscreen)
User Interface: Intuitive graphical UI, single & dual display modes
Data Points: Up to 2049 trace points
Measurement Speed: High-speed sweep for fast field testing
Calibration: Open–Short–Load mechanical & electrical calibration

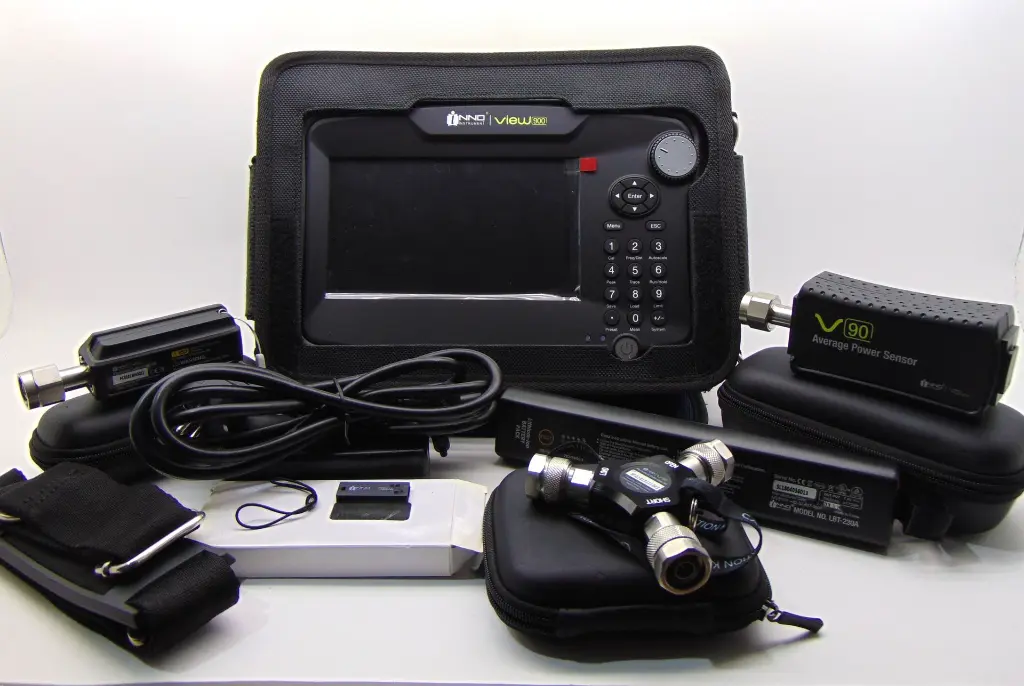

Power Measurement: Supported via external RF power sensor (optional)
RF Port: Type-N (female), 50 Ω
Storage: Internal memory + USB support
Battery: Li-ion 7800 mAh, up to 5.5 hours operation
Weight: Approx. 2.1 kg (including battery)
Form Factor: Compact, lightweight handheld design for outdoor use

Resources

INNO Instruments Cable & Antenna Analyzer View900 Catalogue
