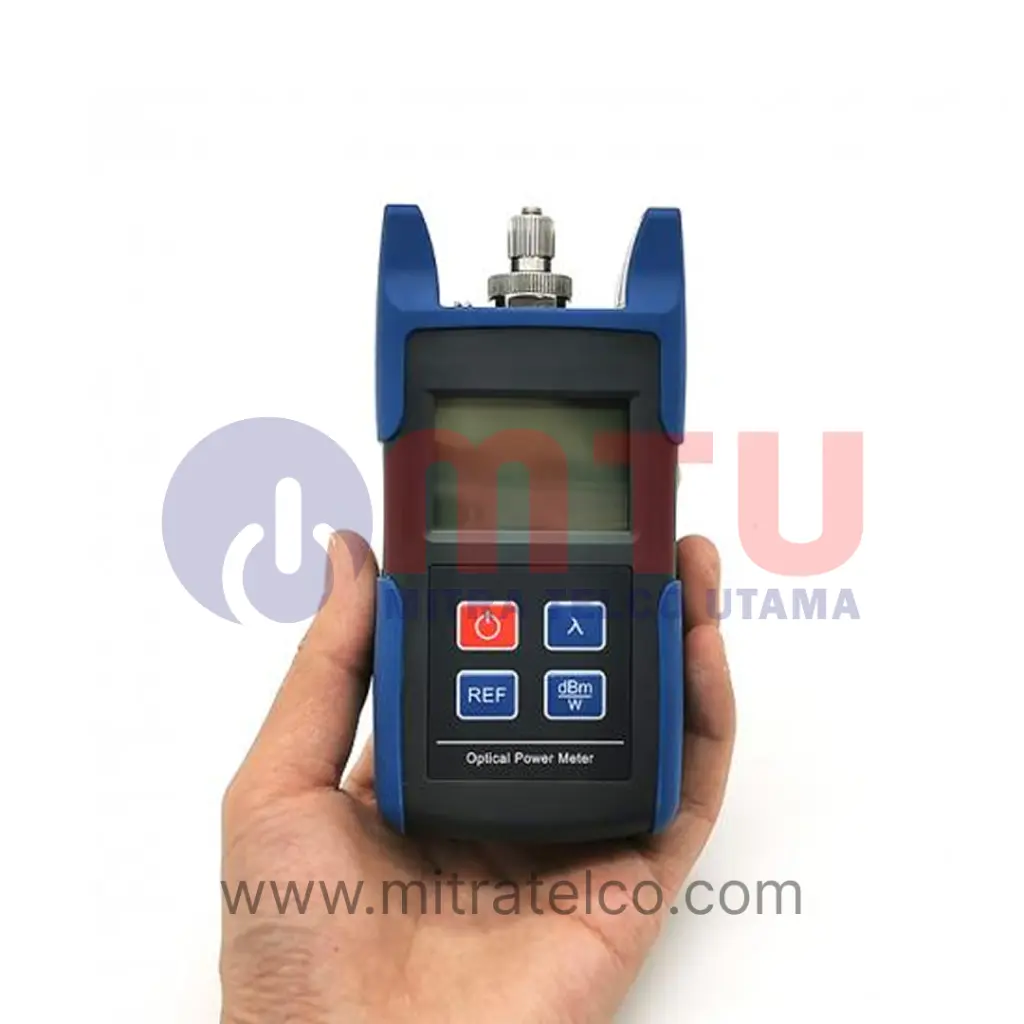

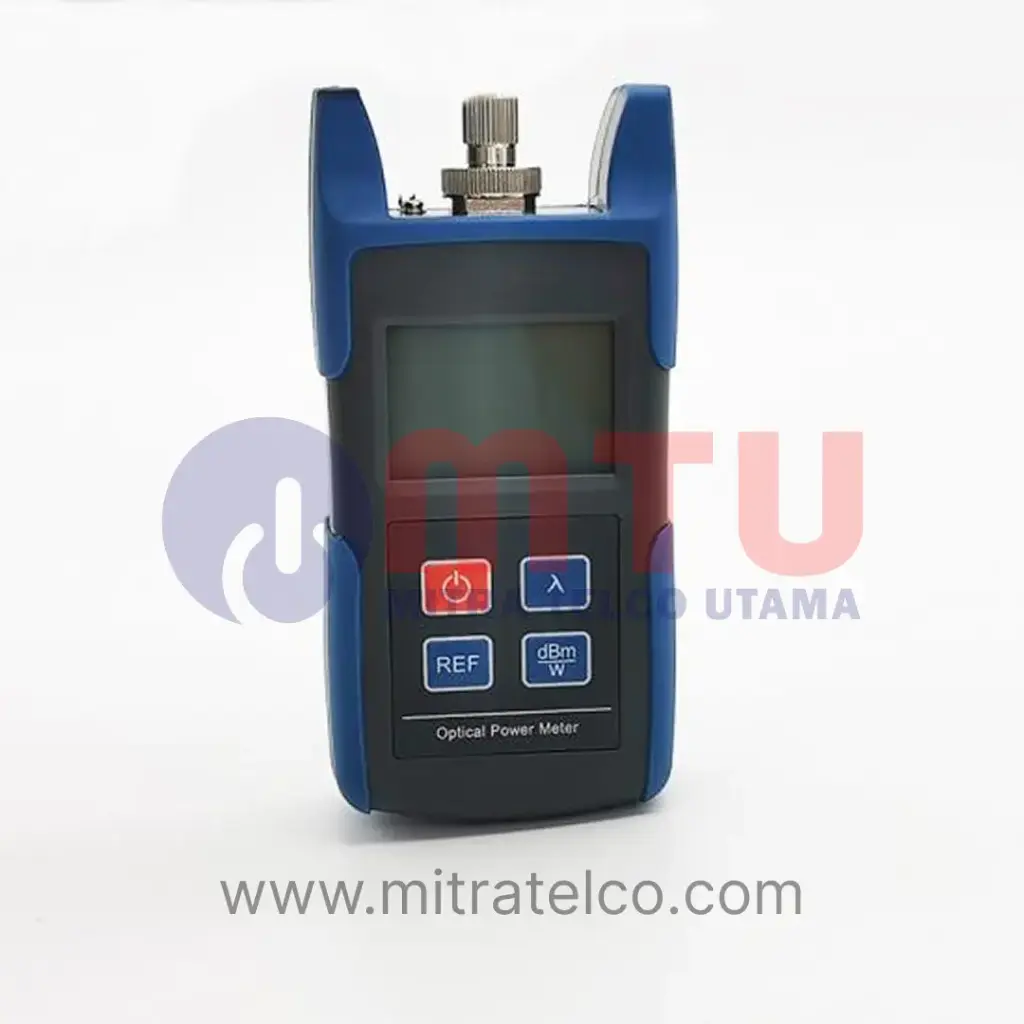

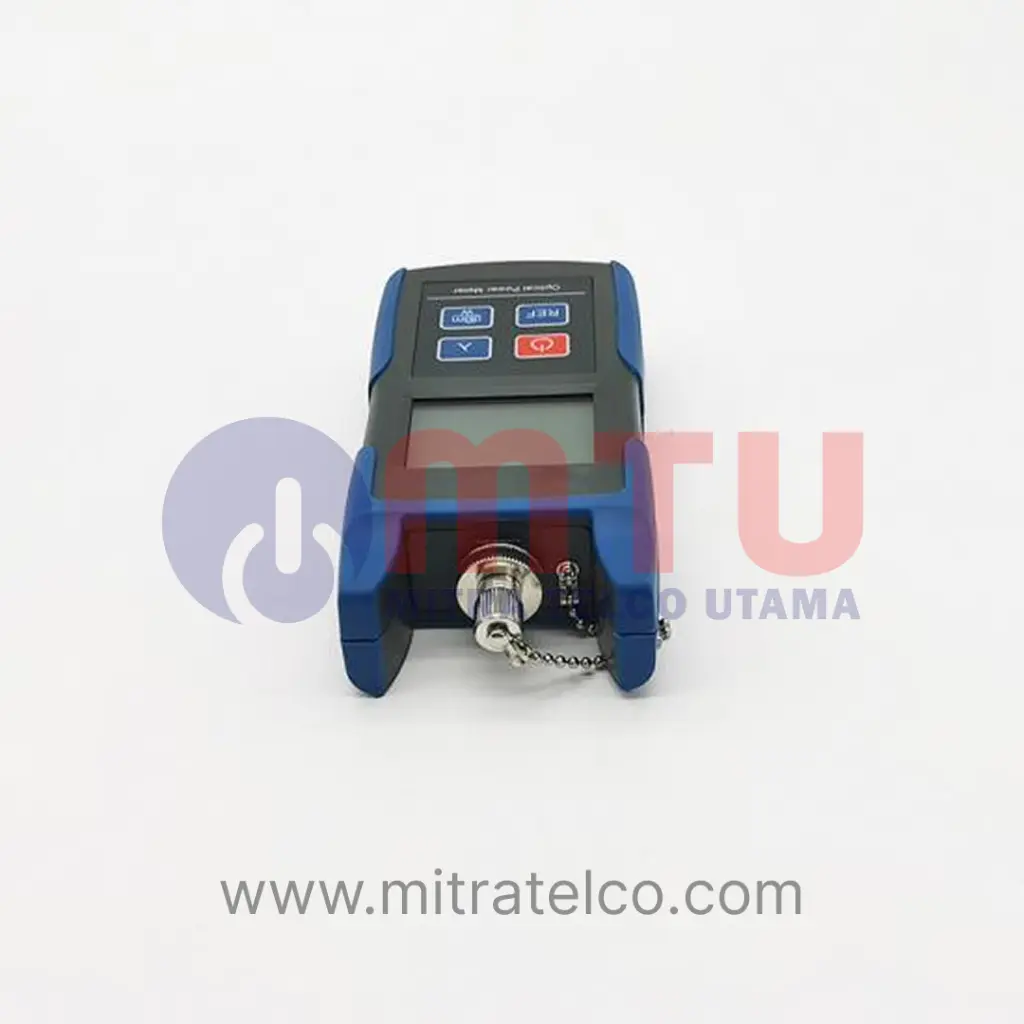

Shinho Optical Power Meter (OPM) X-0510

Specifications

• Compact, lightweight design with stable performance
• Large LCD display with backlight and battery status indicator
• Optional auto-shutdown function for energy saving
• Supports six calibrated wavelengths: 850, 1300, 1310, 1490, 1550, 1625 nm
• Wavelength range: 800 ~ 1650 nm
• Detector type: InGaAs
• Accuracy: < ±3% (@ –10 dBm, 22 °C)
• Resolution: Linearity 0.1%, Non-linearity 0.01 dBm
• Models available:
  • X-0510-A: Measurement range –70 ~ +10 dBm
  • X-0510-C: Measurement range –50 ~ +26 dBm

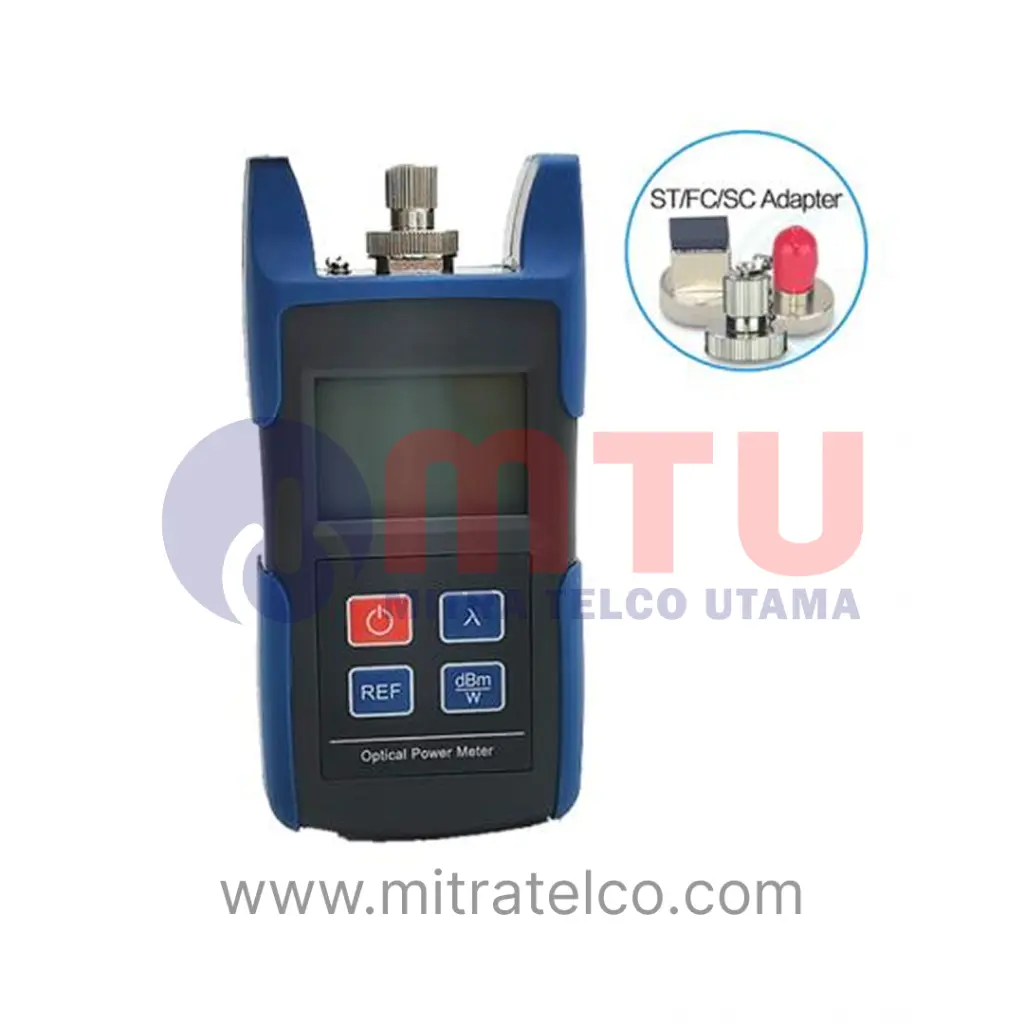

• Optical connectors: FC/PC, SC/PC, ST/PC (LC optional)
• Power supply: 3 × AAA batteries; optional DC power input (AC 90–240 V)
• Working hours: >120 h (without backlight)
• Operating temperature: –10 °C ~ +50 °C
• Storage temperature: –20 °C ~ +70 °C
• Relative humidity: ≤90% (@ +30 °C)
• Dimensions / Weight: Compact design, only 160 g

Applications

• Telecommunication maintenance
• CATV maintenance
• Optical fiber laboratories
• Fiber optic sensing systems
