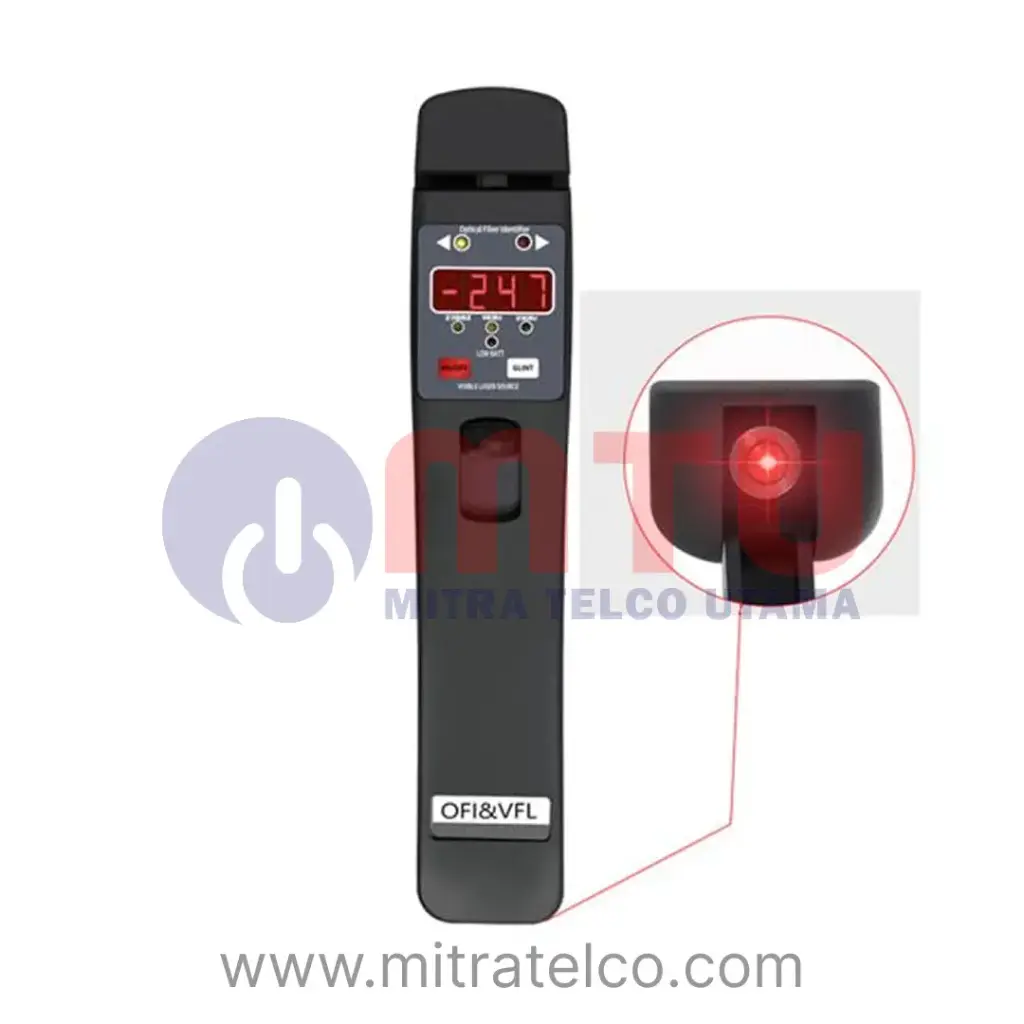

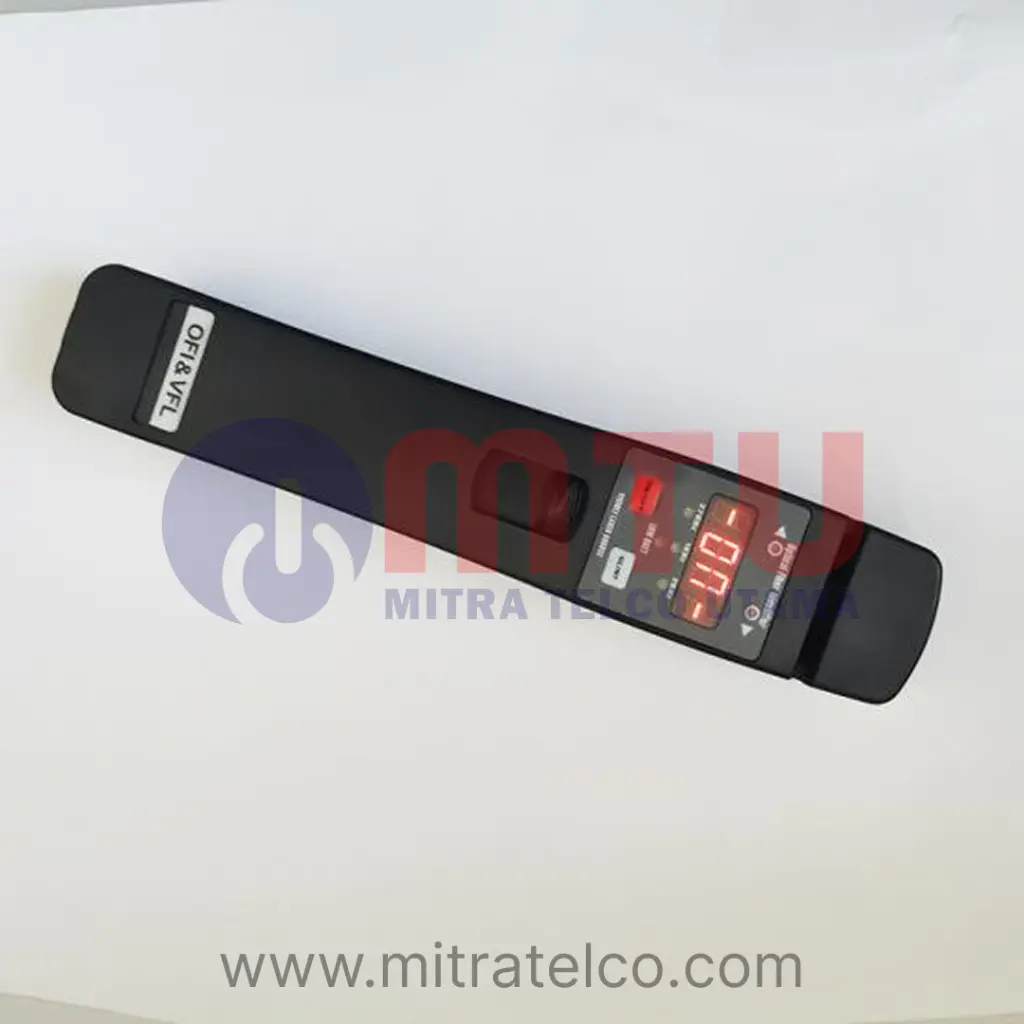

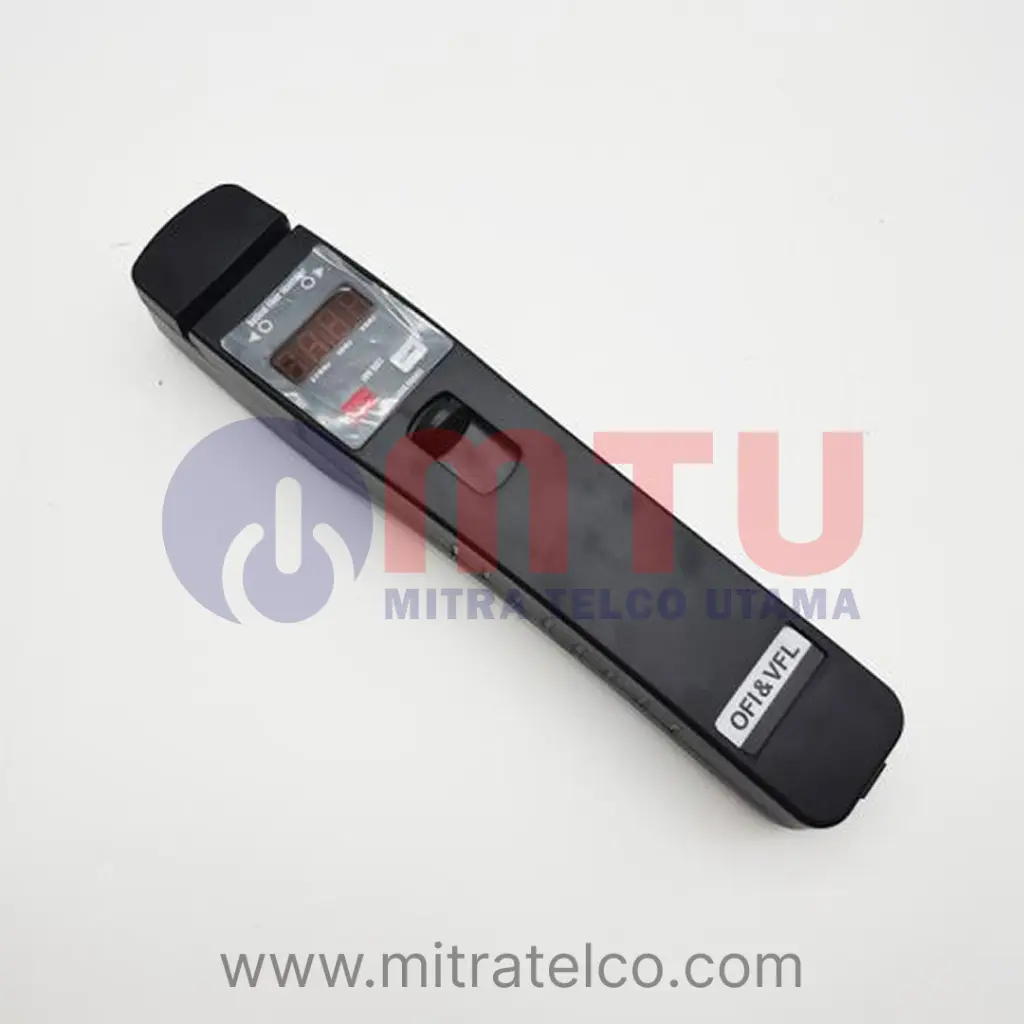

Shinho Fiber Identifier With VFL X-401L

Specifications

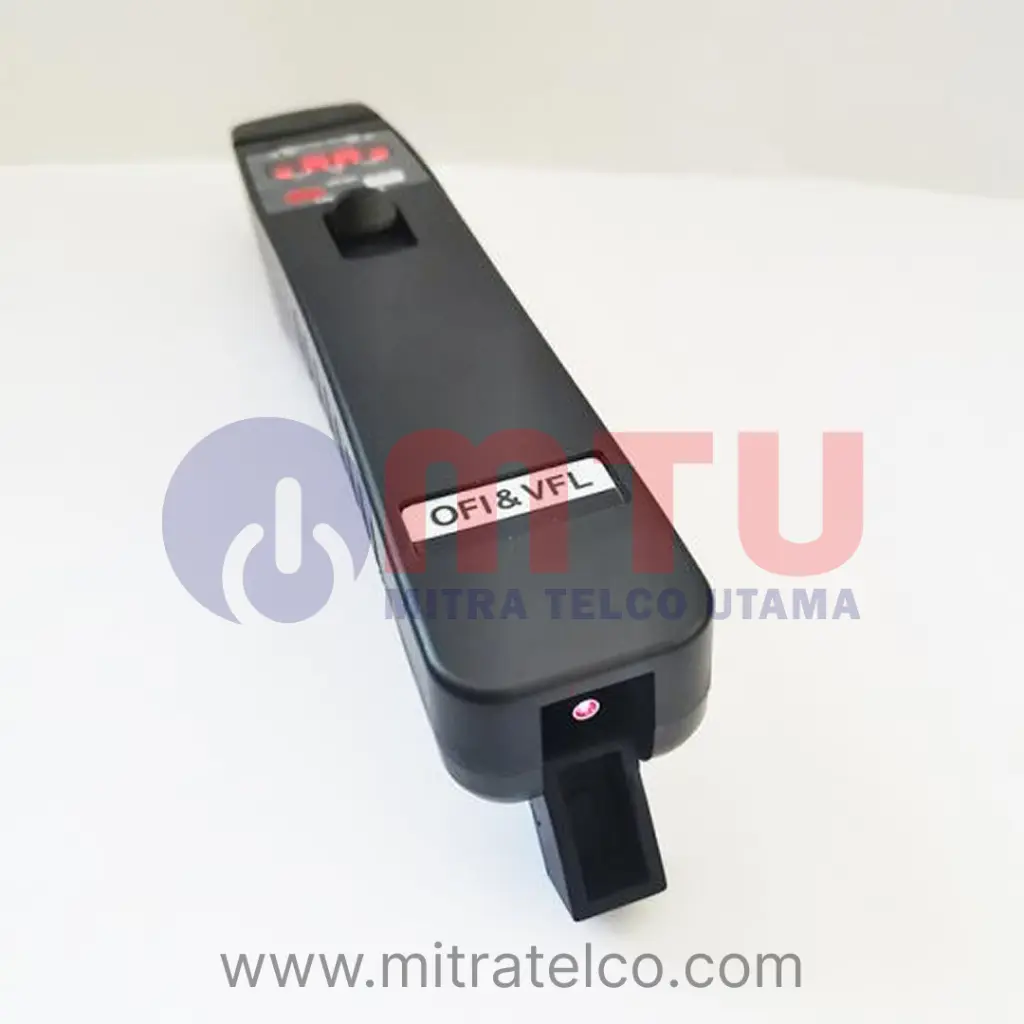

• Built-in 10 mW Visual Fault Locator (VFL)
• Identifies fiber transmission direction and test tones (270 Hz, 1 kHz, 2 kHz)
• Supports macro bending measurement for accurate detection
• Low insertion loss and reduced false detection rate
• LED segment display with audible warning for easy operation
• Low battery monitoring function
• Compact, lightweight, and rugged design
• Wavelength Response: 800 ~ 1700 nm
• Applicable Fiber: 250 μm / 900 μm / 2.5 mm / 3 mm
• Pass-through Insertion Loss:
  • 250 μm fiber: ≤ 1.0 dB
  • 900 μm fiber: ≤ 1.0 dB
  • 3 mm fiber: ≤ 2.0 dB
• Identified Signal Types: 270 Hz / 1 kHz / 2 kHz
• Modulated Signal Identification: Supported
• Detector Type: 1 mm InGaAs
• Minimum Detection Power (@1310/1550 nm):
  • 250 μm: –30 dBm / –35 dBm
  • 900 μm: –30 dBm / –35 dBm
  • 3 mm: –25 dBm / –30 dBm
• Display: LED segment
• Tone & Audible Warning: Yes

VFL Specifications (Optional):

• Wavelength: 650 nm ± 10 nm
• Output Power: 10 mW
• Connector: FC/PC

General Information:

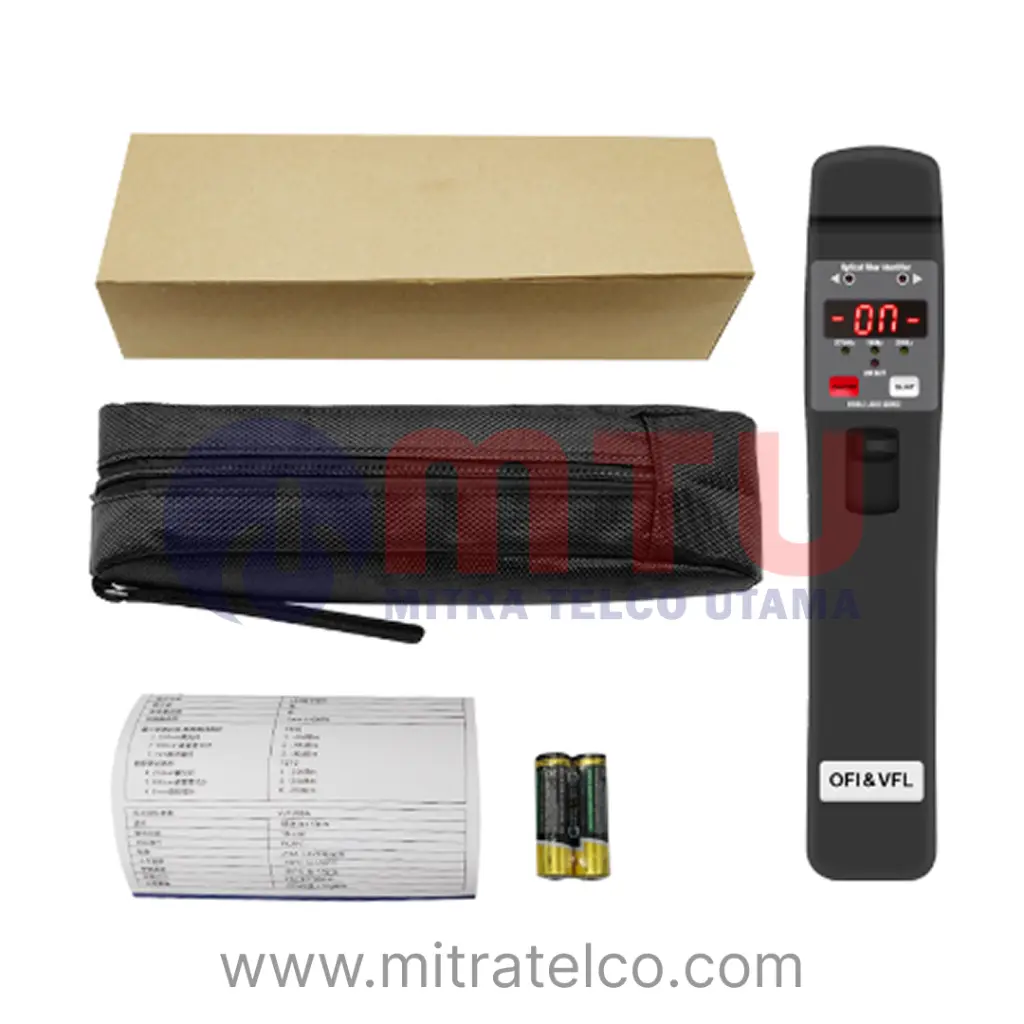

• Power Supply: 2 × AA 1.5V alkaline batteries
• Operating Temp: –10°C ~ +50°C
• Storage Temp: –20°C ~ +70°C
• Dimensions/Weight: 230 × 43 × 36 mm / 200 g

Applications:

• Fiber transmission direction identification
• Live fiber detection in FTTx, CATV, and telecom networks
• Fault localization with built-in VFL
• Maintenance and troubleshooting of optical networks
