Specifications
- Wavelength range: 800 – 1700 nm
- Signal types: CW, 270 Hz, 1 kHz, 2 kHz
- Detector type: Dual Ø1 mm InGaAs
- Adapters included: Ø0.25, Ø0.9, Ø2.0, Ø3.0

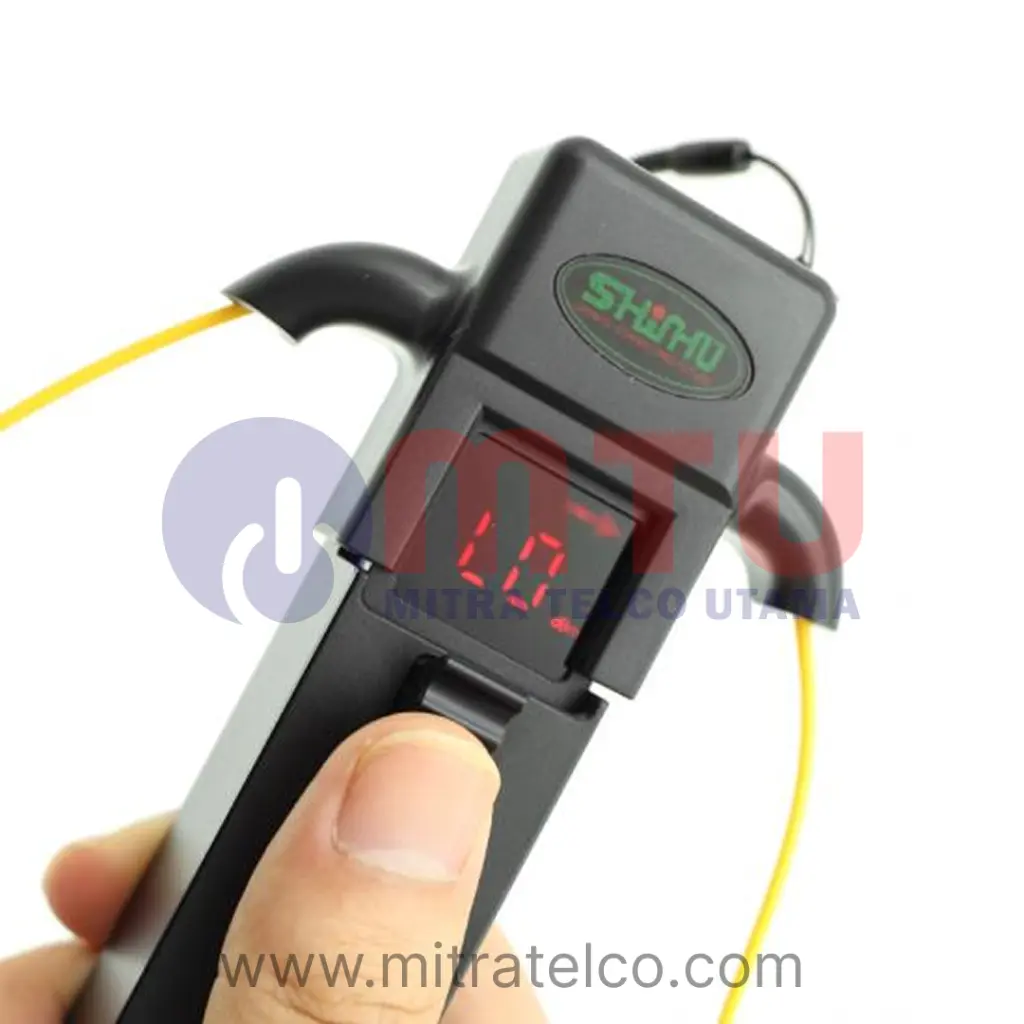

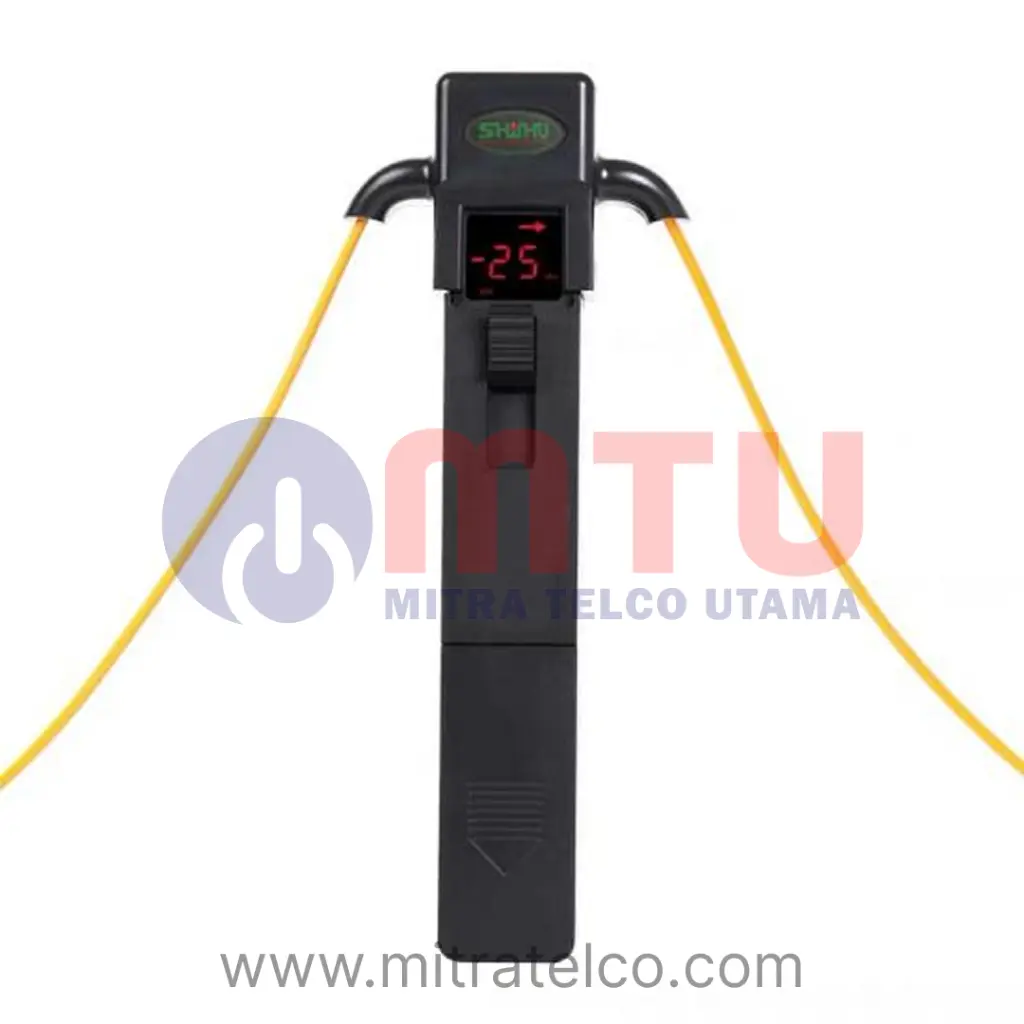

- Signal direction indication: Left/Right LED + audible tone
-
Detection range (0.9 mm bare fiber):
- –46 ~ +10 dBm (1310 nm)
- –50 ~ +10 dBm (1550 nm)
- Frequency test range: –30 ~ 0 dBm (270 Hz / 1 kHz), –25 ~ 0 dBm (2 kHz)
- Insertion loss: ≤0.8 dB (1310 nm), ≤2.5 dB (1550 nm)
- Battery: 2 × AAA alkaline batteries
- Operating temperature: –10°C ~ +50°C; Storage: –20°C ~ +60°C
- Size/Weight: 196 × 30.5 × 27 mm / 195 g
Applications:
- Fiber transmission direction detection
- Tone identification (270 Hz, 1 kHz, 2 kHz)
- Maintenance and troubleshooting of FTTx, CATV, and telecom networks

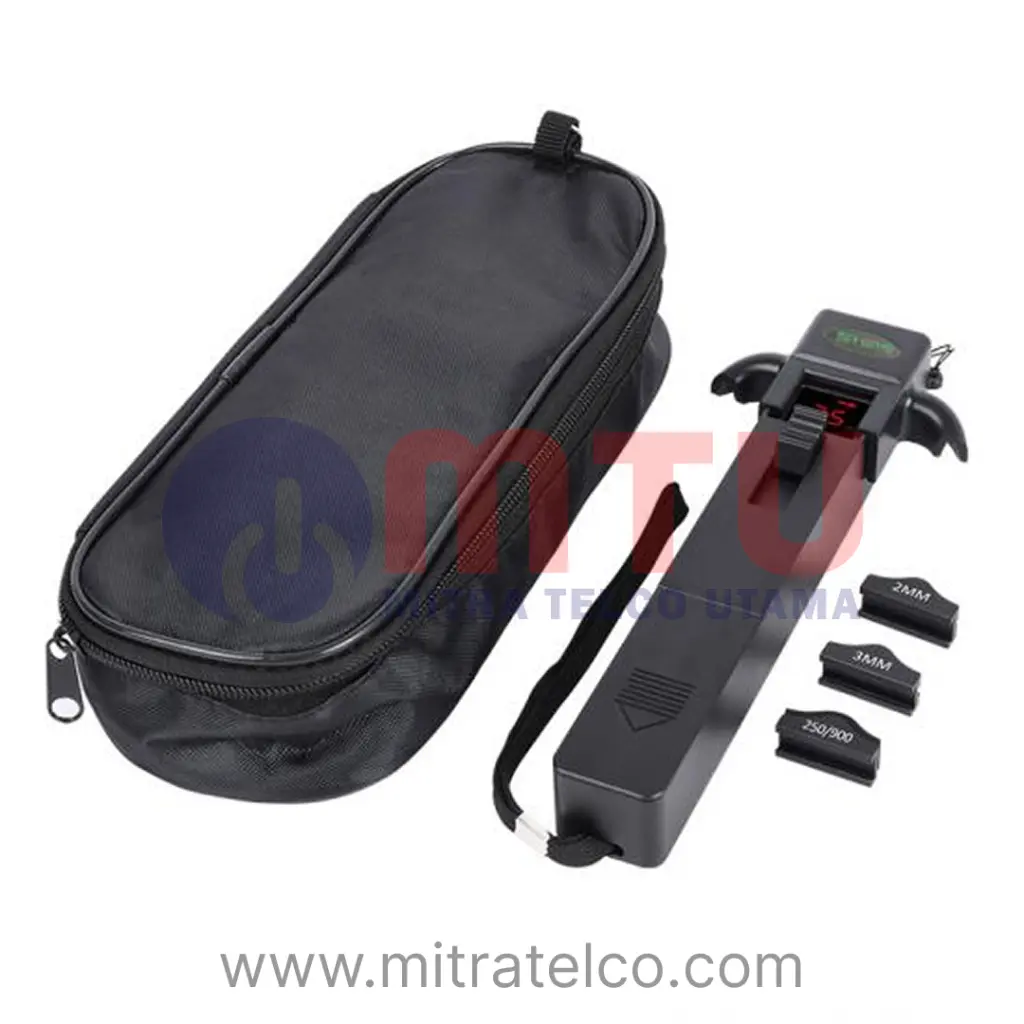

Packing List
- X-5004 Optical Fiber Identifier
- 4 fiber adapters (Ø0.25, Ø0.9, Ø2.0, Ø3.0)
- Carrying case
- User manual
- AAA batteries
