Shinho VDSL Tester

Name: Shinho VDSL Tester
Availability: InStock

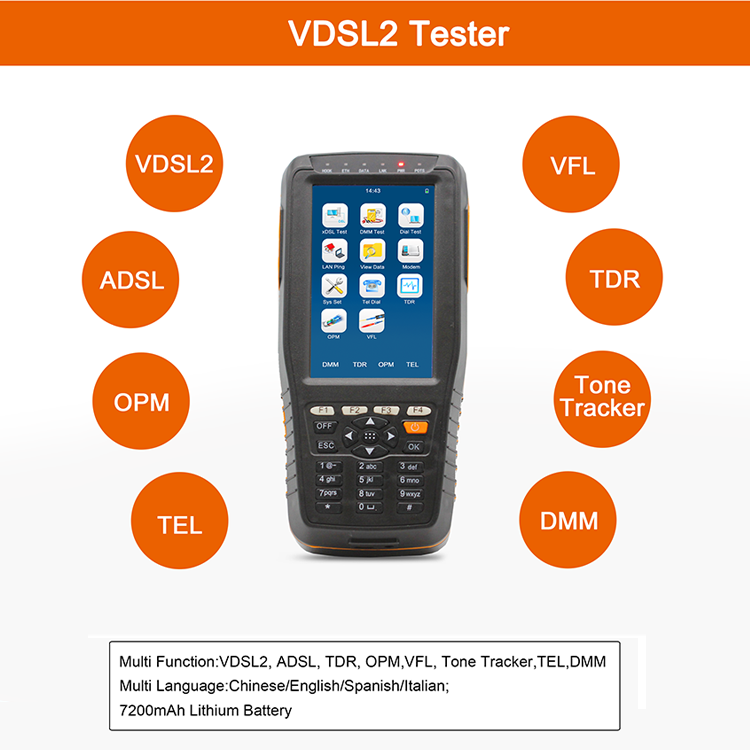

The X-5008 VDSL Tester is a multi-functional handheld device designed for testing and maintenance of ADSL, ADSL2, ADSL2+, READSL, and VDSL2 lines. It combines xDSL testing, DMM, Modem Emulation, PPPoE/PPPoA login, Optical Power Meter, Visual Fault Locator, TDR, and Tone Tracker in one compact unit. With its rugged design, rechargeable Li-ion battery, and intuitive interface, it is an efficient and cost-effective tool for field engineers.

This combination does not exist.

Specifications

Supports ADSL, ADSL2, ADSL2+, READSL, VDSL2 standards
DSL physical layer test, Modem Emulation, PPPoE/PPPoA login, Ping Test (WAN/LAN)
DMM Copper Test: DC/AC voltage (0–400V), loop/insulation resistance, capacitance, distance
VDSL2 Profiles Supported: 8a, 8b, 8c, 8d, 12a, 12b, 17a
Error tests: CRC, FEC, HEC, LOS; DSLAM info display

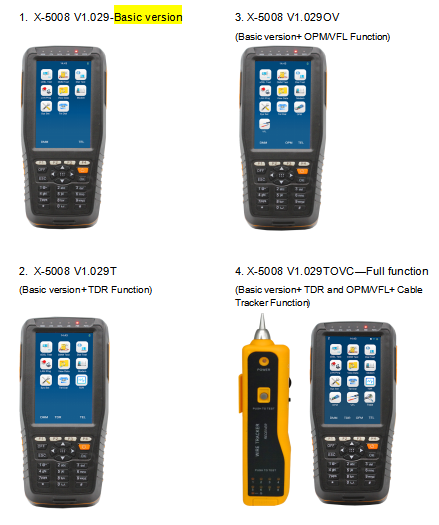

Optional Modules: Optical Power Meter (-70~+10dBm or -50~+26dBm, 850–1625nm), Visual Fault Locator (10mW, 650nm), Tone Tracker, TDR (≤2.5 km, 1m resolution)
Display: 800 × 480 TFT LCD
Memory & Data: Data storage, USB transfer, software management
Battery: Rechargeable 6600mAh Li-ion, 4–5 hrs operation
Dimensions/Weight: 170 × 70 × 52 mm / <0.6 kg

Applications:

xDSL installation, verification, and troubleshooting
Copper line quality testing
Optical power measurement & fault locating (with optional modules)

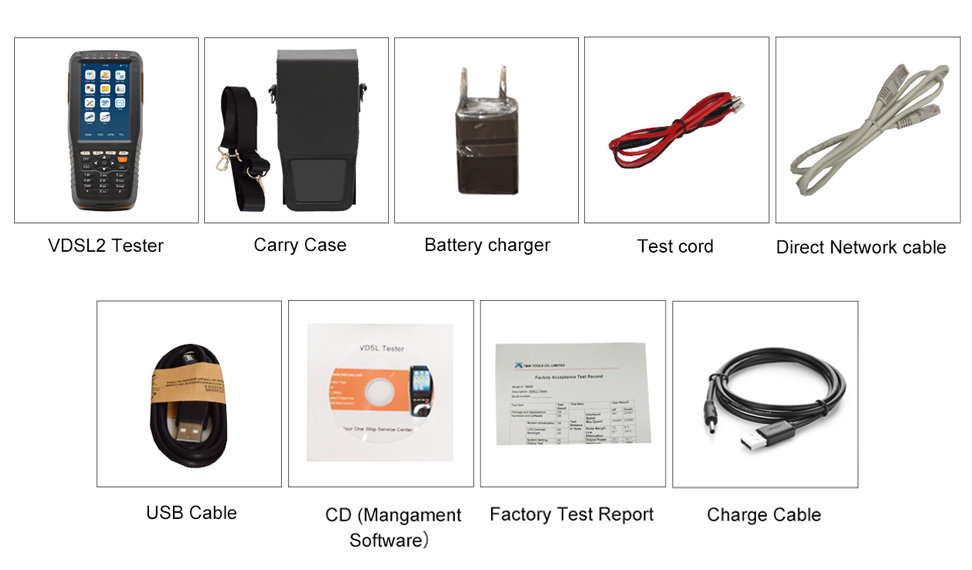

Packing List
