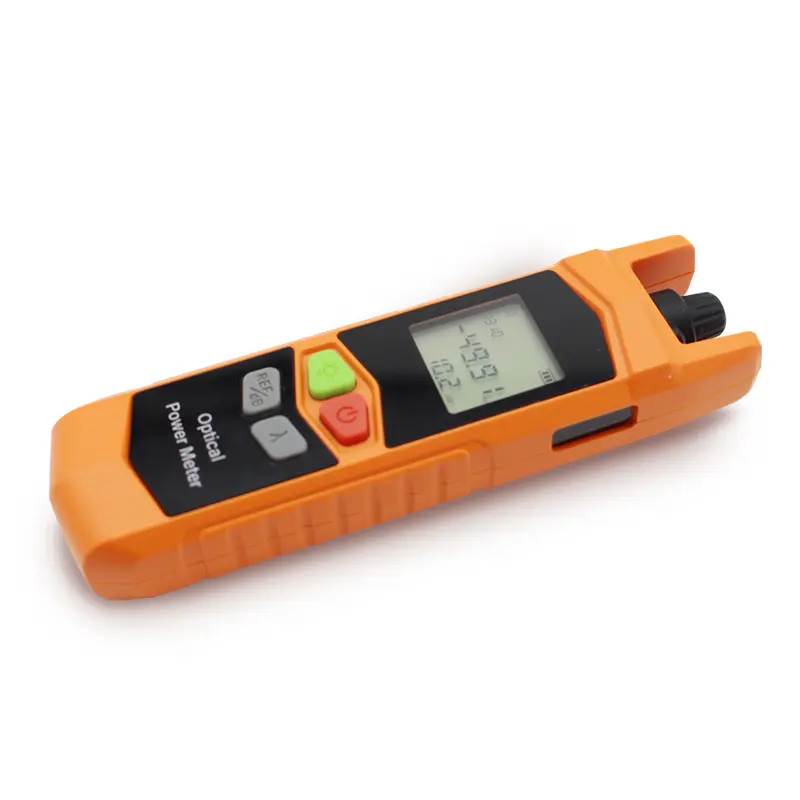

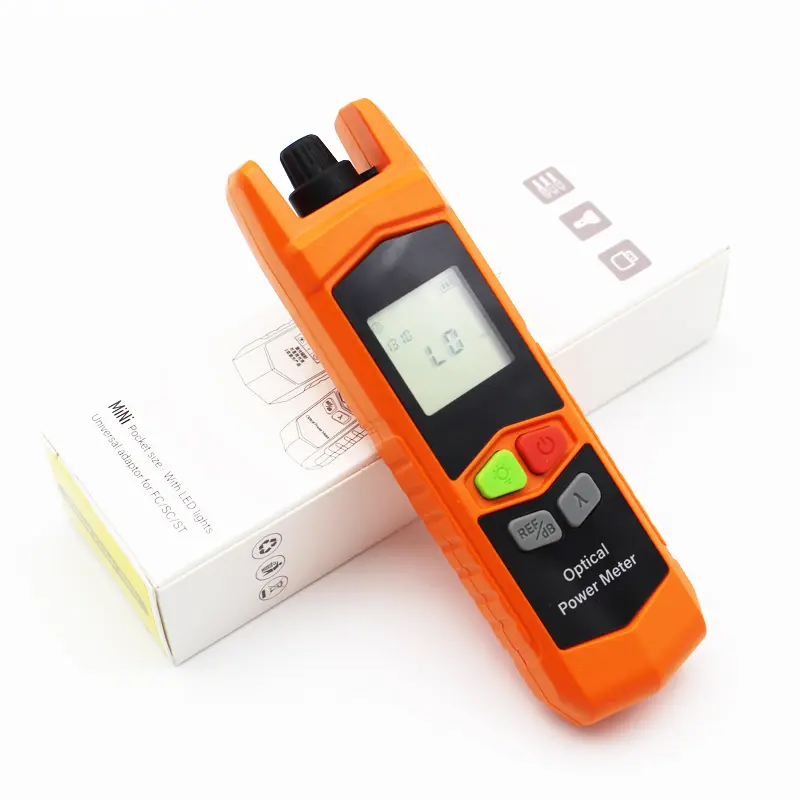

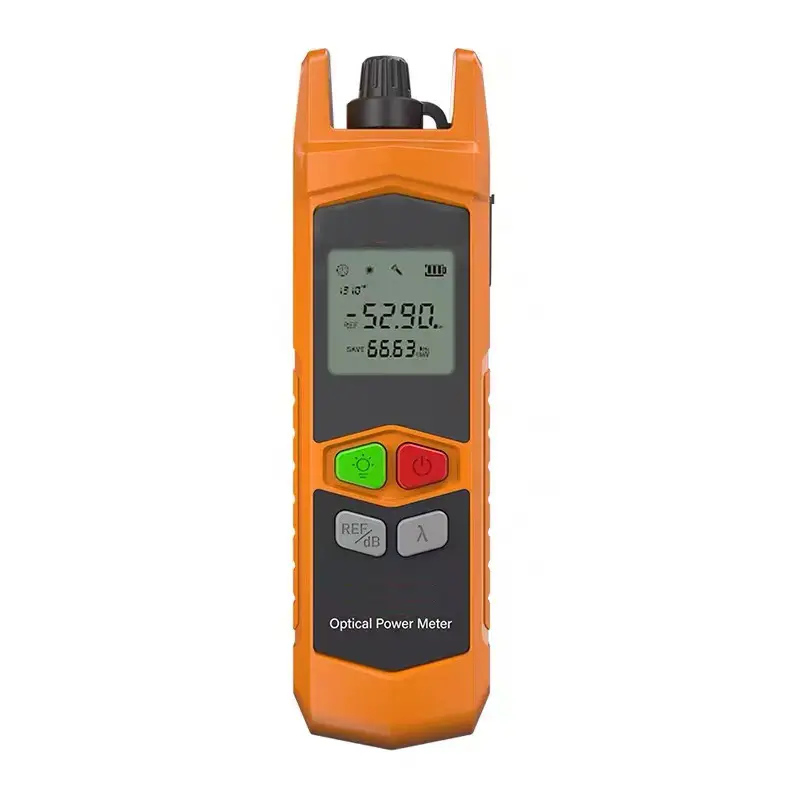

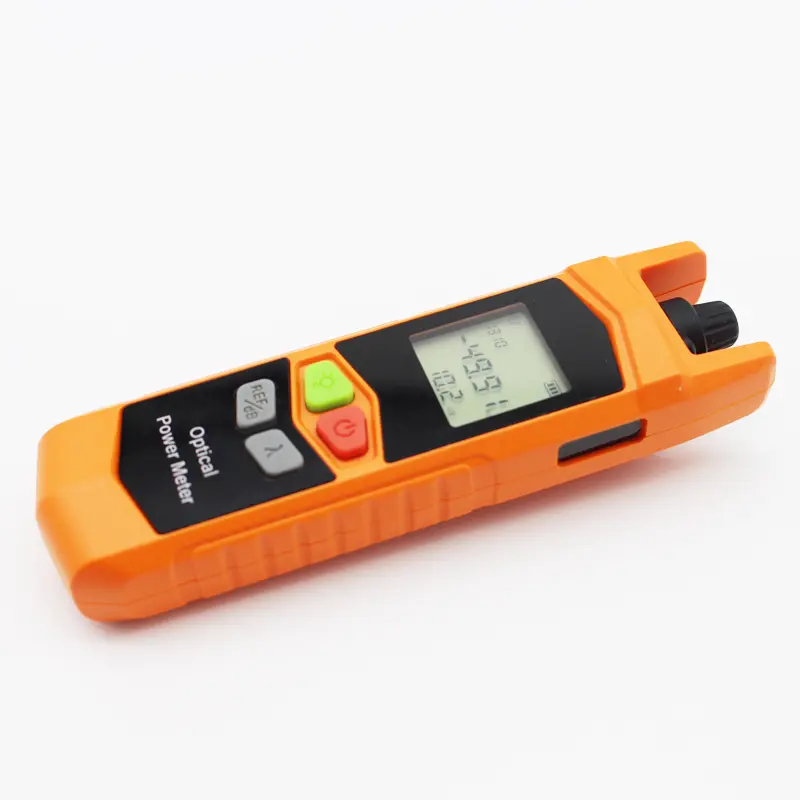

Shinho Mini Optical Power Meter (OPM) X-5020

The Mini Optical Power Meter X-5020 is a compact, high-precision fiber optic testing tool. Designed with a clear LCD display, built-in LED light for dark environments, and support for up to 7 wavelengths, it ensures accurate and fast measurements. Ideal for fiber optic installation, maintenance, and troubleshooting.
Rp 0.00 Rp 0.00
Rp 989,100.00

This combination does not exist.

SpecificationsPacking List

Specifications

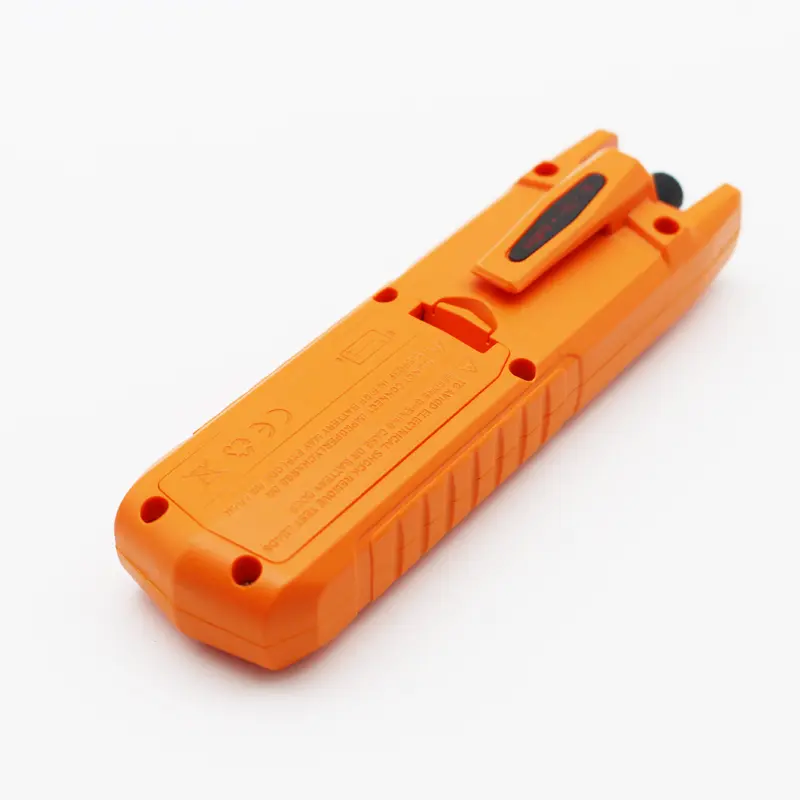

  • Mini & compact design with back clip, easy to carry.
  • 7 selectable wavelengths: 850, 980, 1300, 1310, 1490, 1550, 1625 nm.
  • High accuracy: ±0.2 dB, measurement error <0.1 dB.

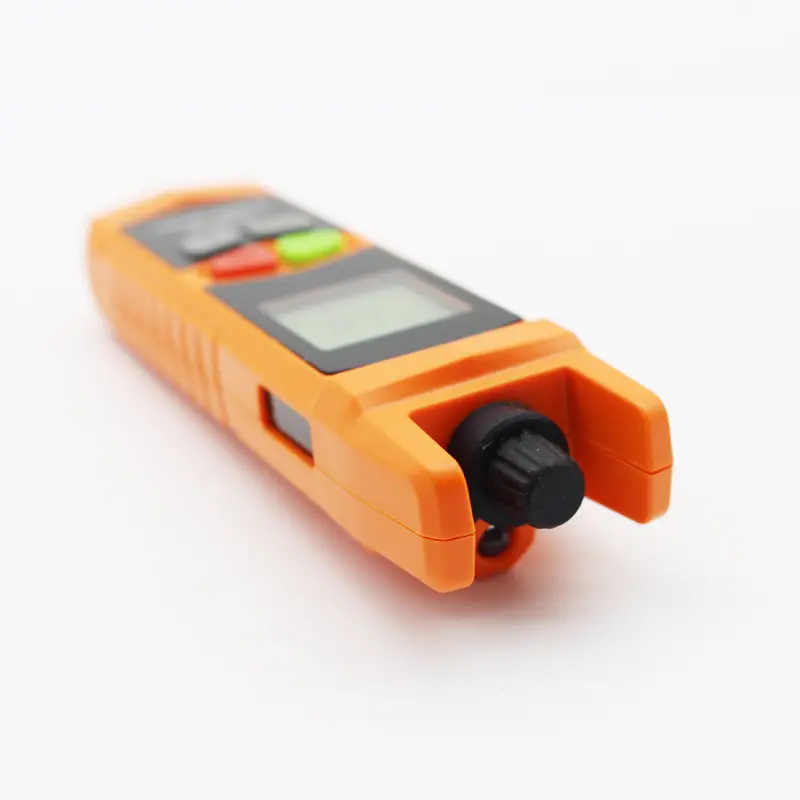

  • 2.5mm universal connector (SC/FC/ST, LC adaptor optional).
  • Automatic calibration & quick response for precise results.
  • Built-in LED light, convenient for working in dark environments.
  • Low battery indication & low power consumption.
  • Measurement units: dB / dBm / mW.
  • Power supply: 2×AAA batteries, operating time up to 40 hours.
  • Operating temperature: -10℃ ~ +60℃; Storage: -25℃ ~ +70℃.
  • Dimensions: 115 × 45 × 27 mm; Weight: 50 g (without batteries).

Packing List

  1. Optical Power Meter
  2. User Manual
  3. Soft Carrying Case
  4. AAA Batteries
