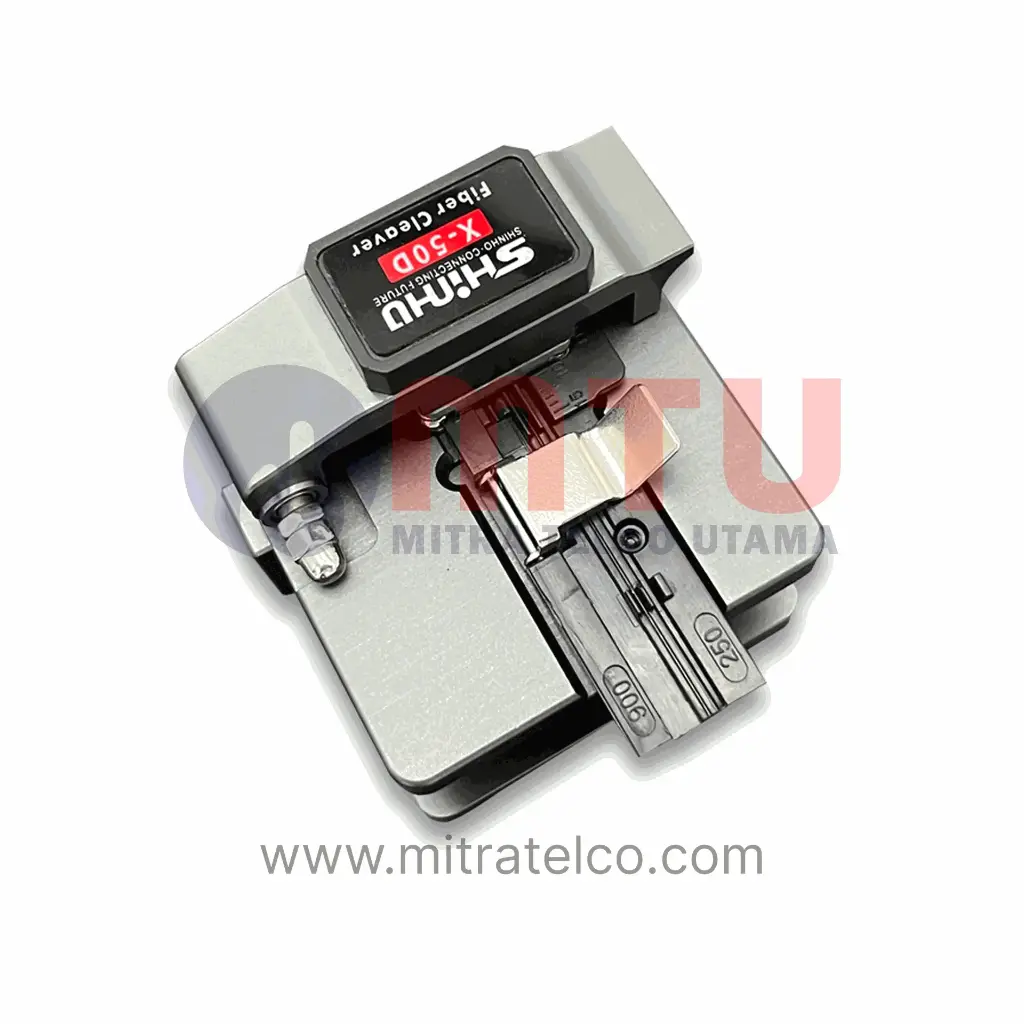

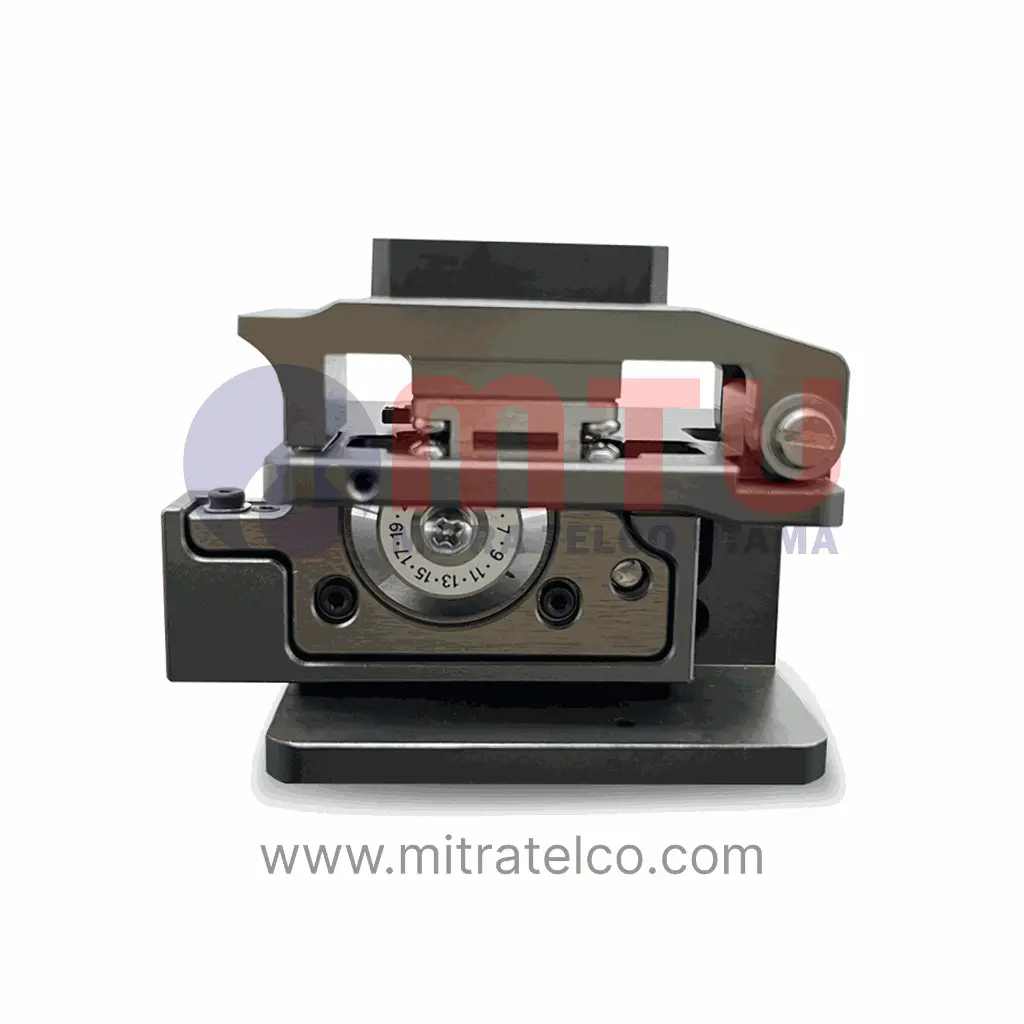

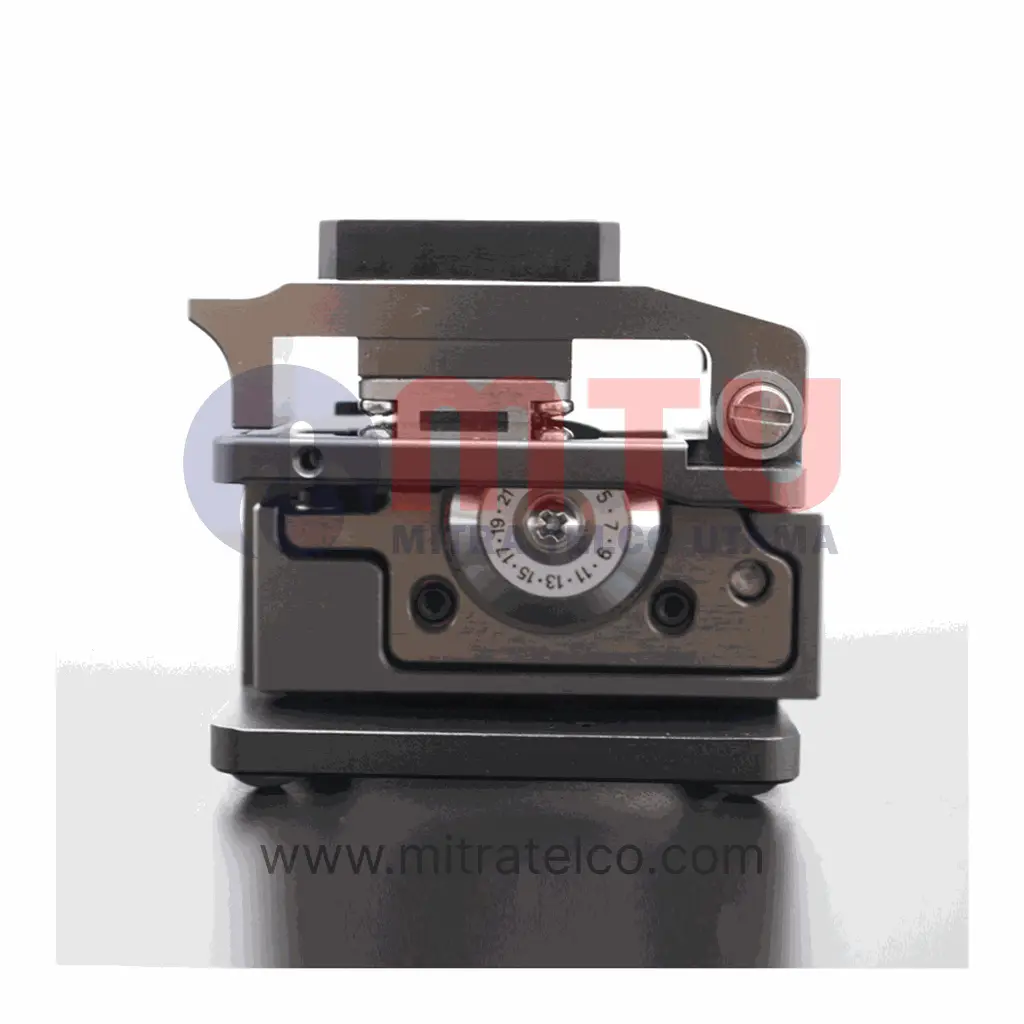

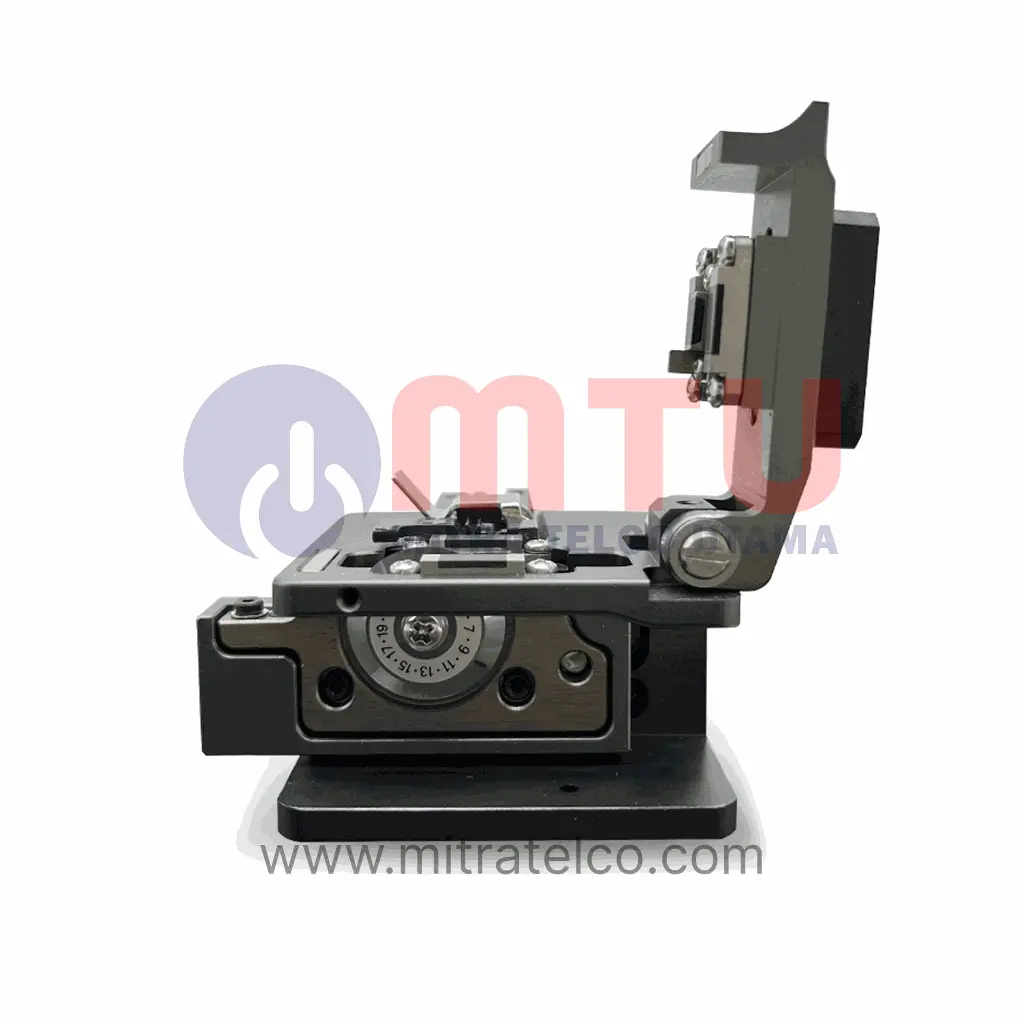

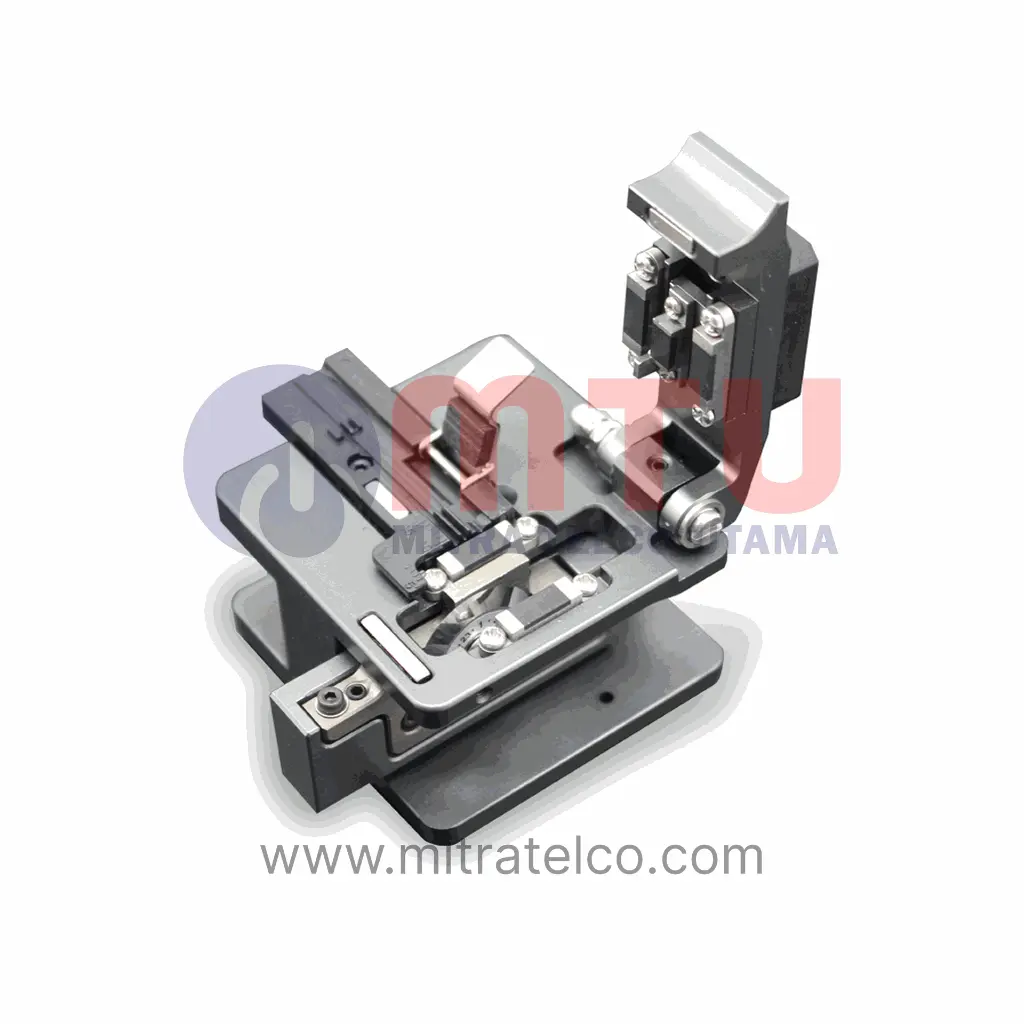

Shinho Fiber Cleaver X-50D

Name: Shinho Fiber Cleaver X-50D
Availability: InStock

The X-50D is a compact and lightweight high-precision fiber cleaver engineered for splicing applications in FTTH, FTTx, and optical network maintenance. With a blade life of over 48,000 cleaves and the ability to handle bare fiber, coated fiber, and FTTH butterfly cables, it delivers consistent, clean cleaves for optimal splicing performance.

This combination does not exist.

Specifications

Applicable Fibers: Bare fiber, coated fiber (0.25 mm & 0.9 mm), FTTH butterfly leather cable (2–3 mm)
Bare Fiber Diameter: 125 μm
Coating Diameter: 0.25 mm – 0.9 mm
Fiber Type: Single-core optical fibers
Cleaved Length: 5–20 mm
Cleaved Angle: 0.5°
Blade Life: >48,000 cleaves
Operation Mode: Semi-automatic
Dimensions: 58 × 55 × 54 mm
Weight: 210 g

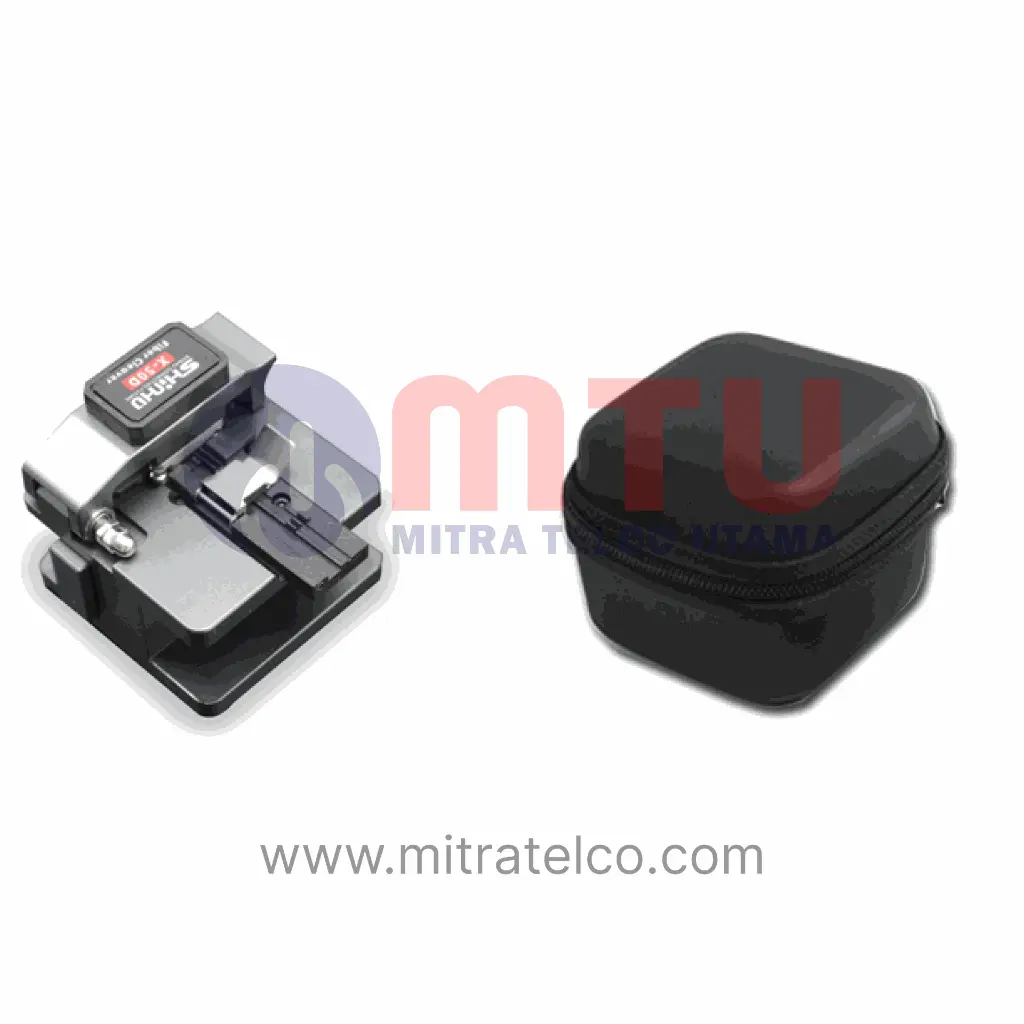

Package Includes: Fiber cleaver, screwdriver, user manual, carrying bag

Applications:

FTTx / FTTH installations
Optical fiber splicing preparation
Telecom and CATV network maintenance

Resources

Shinho Fiber Cleaver X-50D Datasheet
