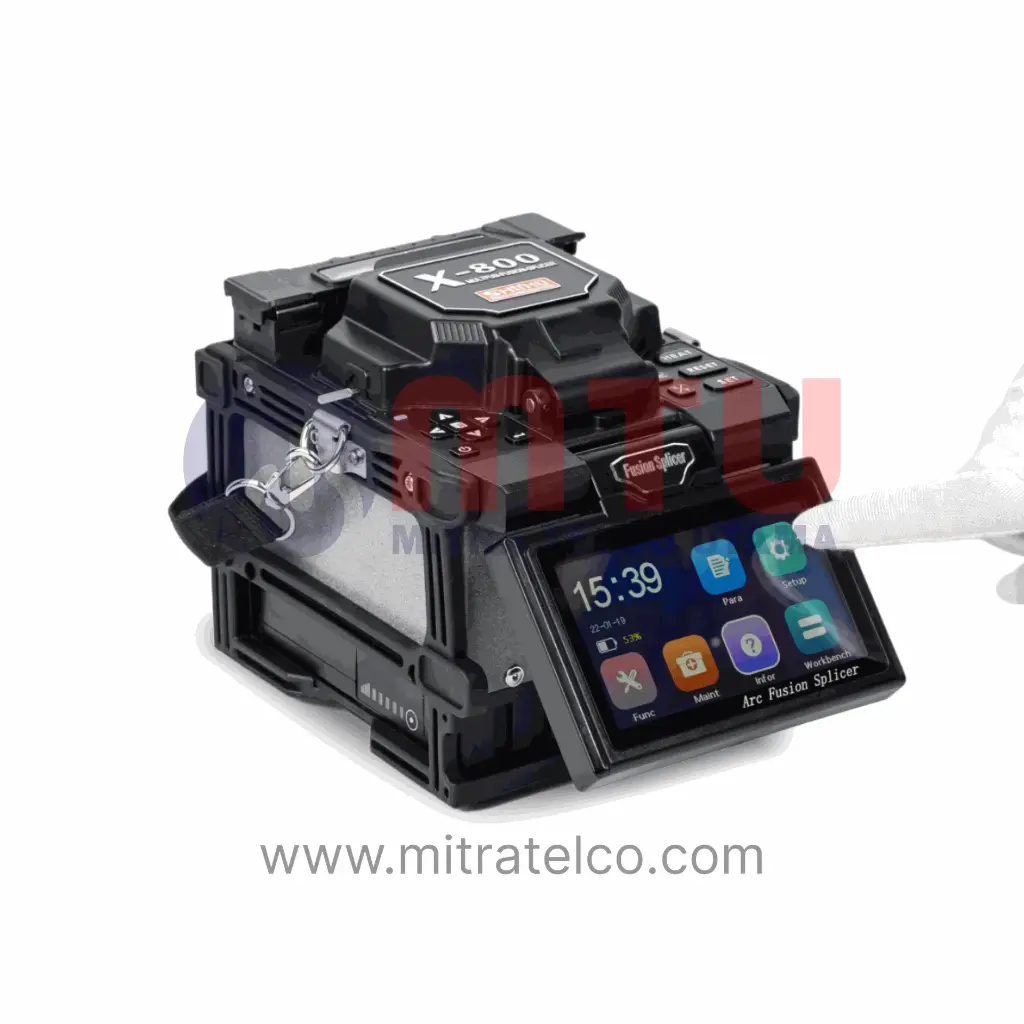

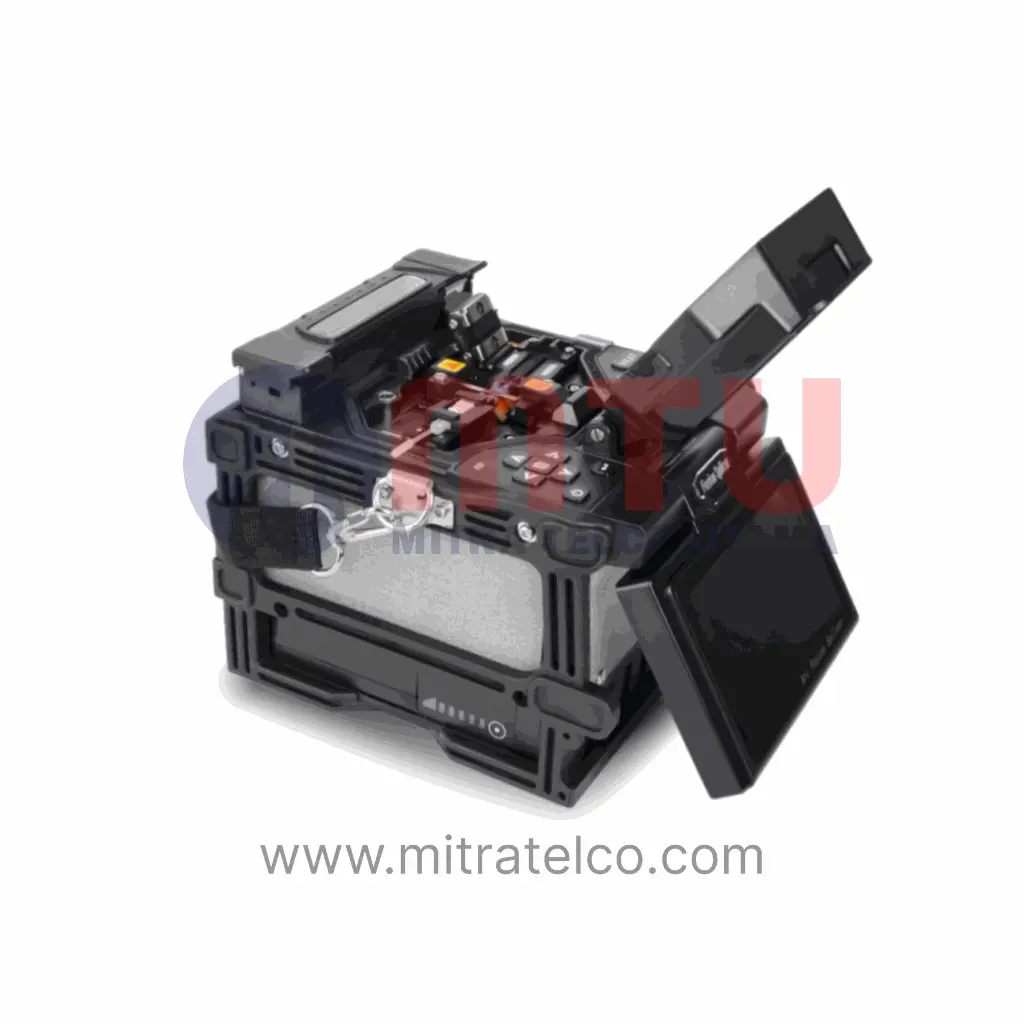

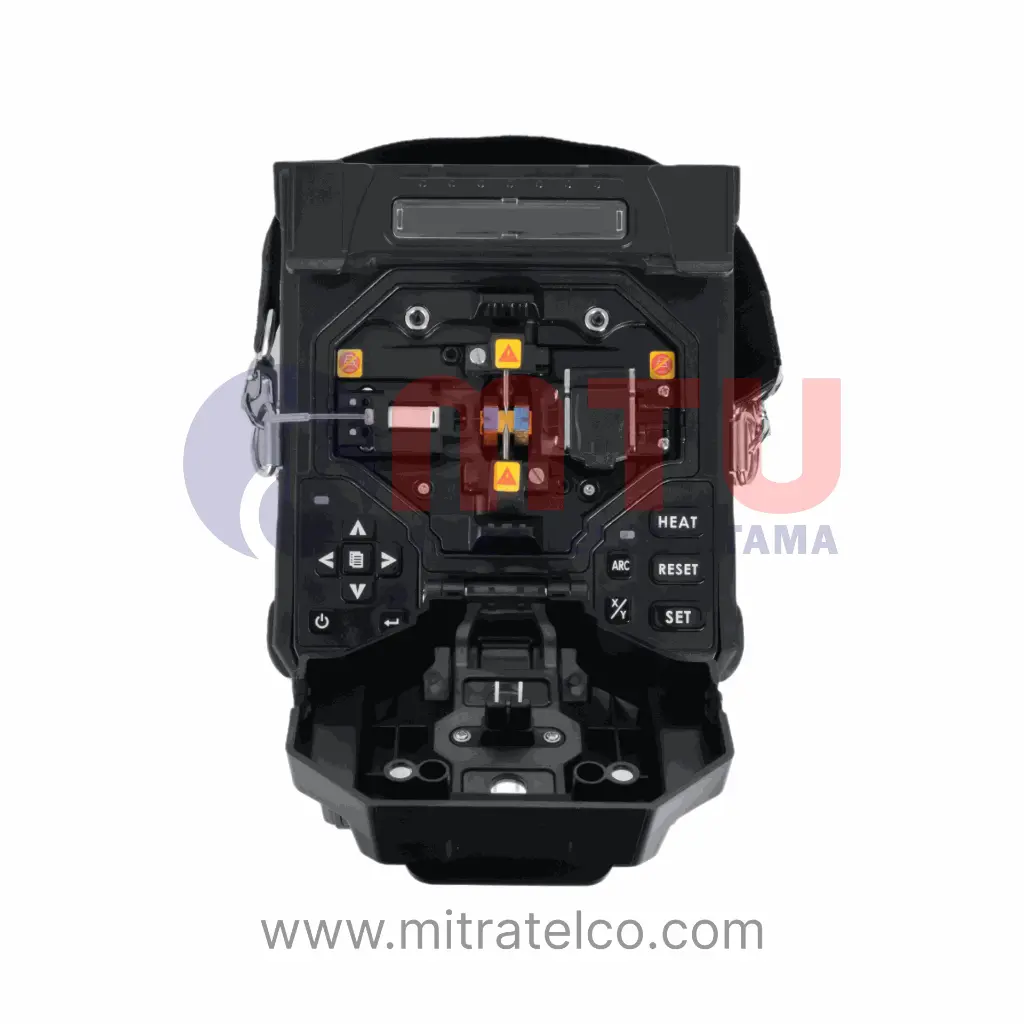

Shinho Fiber Fusion Splicer X-800

Specifications

• Alignment Method: 4-motor core-to-core alignment
• Applicable Fibers: SM (G.652), MM (G.651), DS (G.653), NZDS (G.655)
• Cladding Diameter: 80–150 μm
• Coating Diameter: 160–3000 μm
• Cleaved Length: 5–16 mm (<250 μm coating), 16 mm (250–1000 μm coating)
• Typical Splice Loss: SM: 0.02 dB; MM: 0.01 dB; DS: 0.04 dB; NZDS: 0.04 dB
• Return Loss: >60 dB
• Splicing Programs: 40 groups, manual/automatic operation
• Auto Heating: Yes
• Typical Splice Time: 6 seconds
• Typical Heating Time: 20 seconds (40 mm & 60 mm sleeves)
• Fiber Magnification: 320× (X or Y view), 160× (X and Y view)

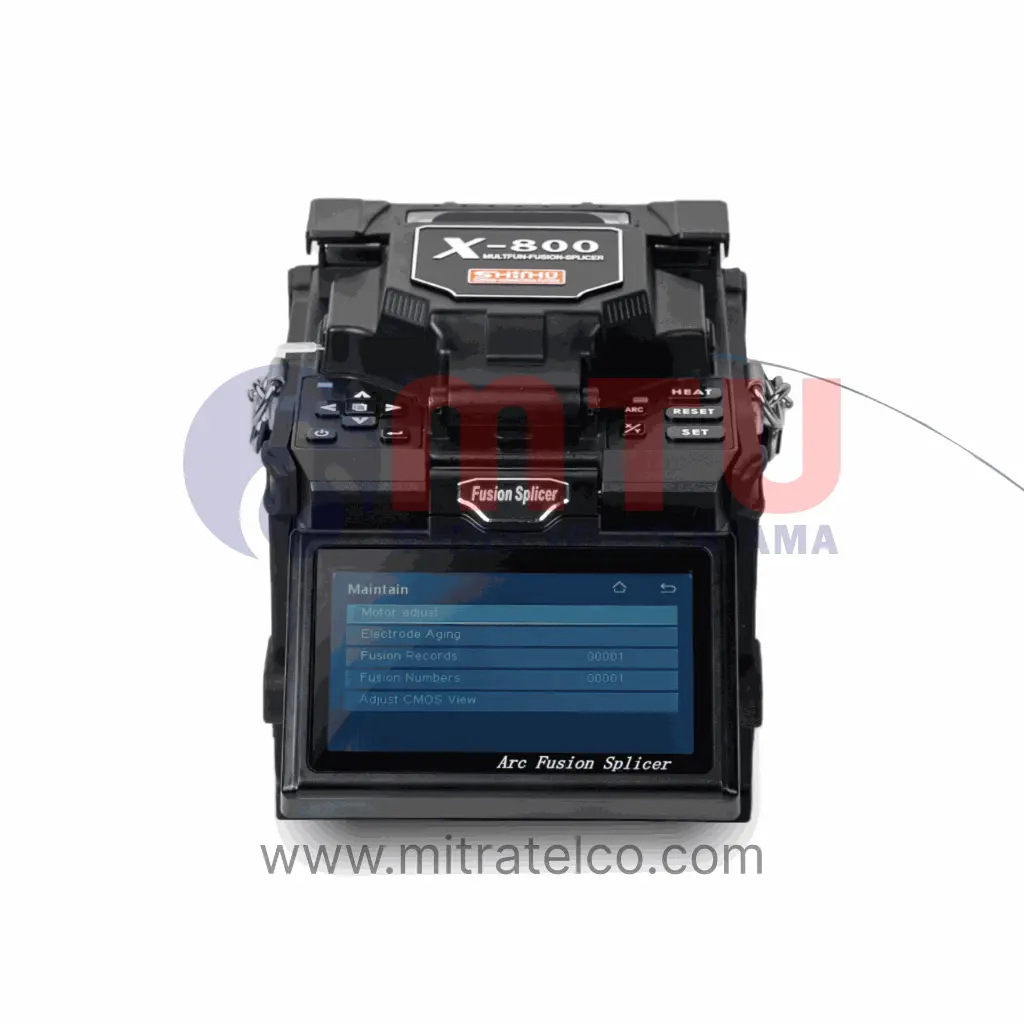

• Display: Dual high-sensitivity camera, 4.3" 800×480 LCD (touch optional)
• Data Storage: 8000 splice records
• Tension Test: 1.8–2.25 N

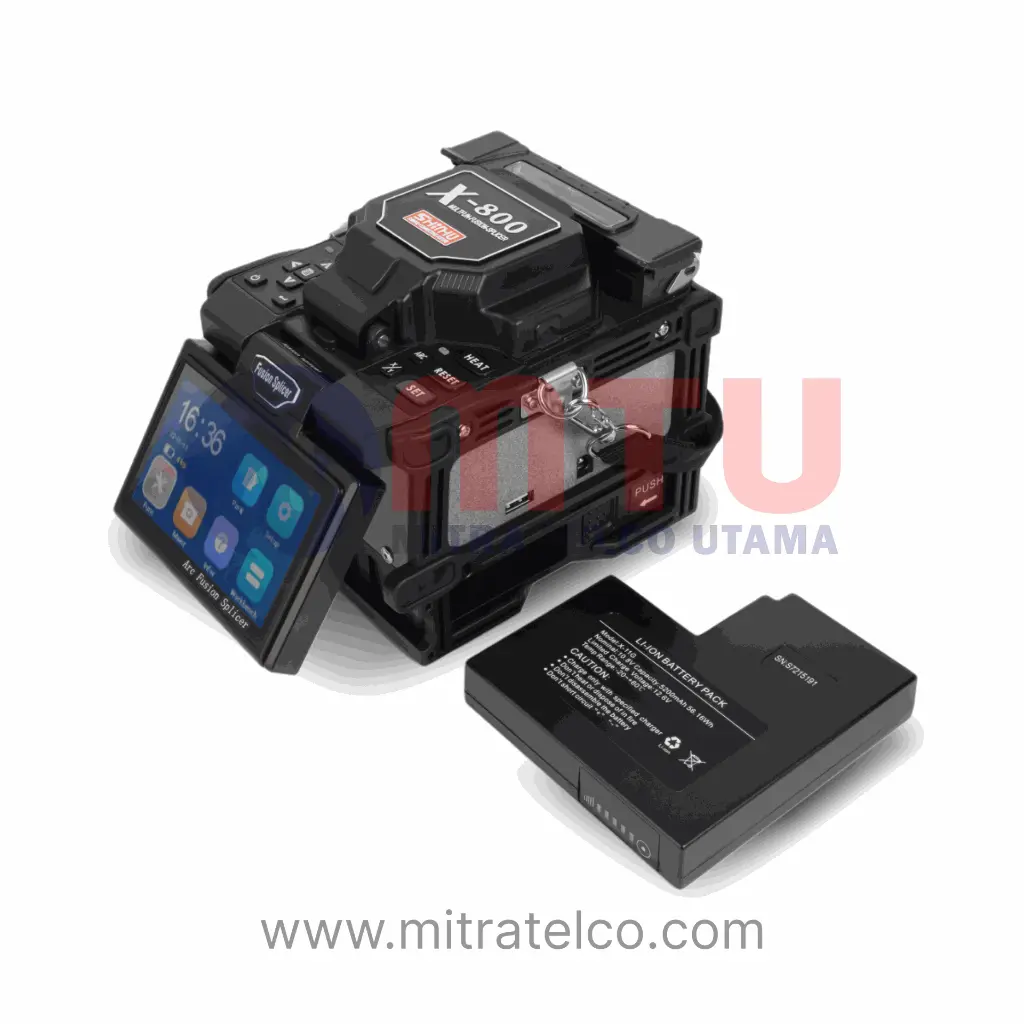

• Battery: 5200 mAh, up to 250 splice/heat cycles per charge
• Electrode Life: >4000 ARC discharges, easy to replace
• Interface: USB 2.0 for software upgrades and data export
• Operating Conditions: –10°C to +50°C, up to 5000 m altitude, ≤15 m/s wind
• Dimensions/Weight: 157×136×140 mm / 2.10 kg (with battery)

Applications:

• FTTx / FTTH deployment
• CATV installation and maintenance
• Optical network field projects

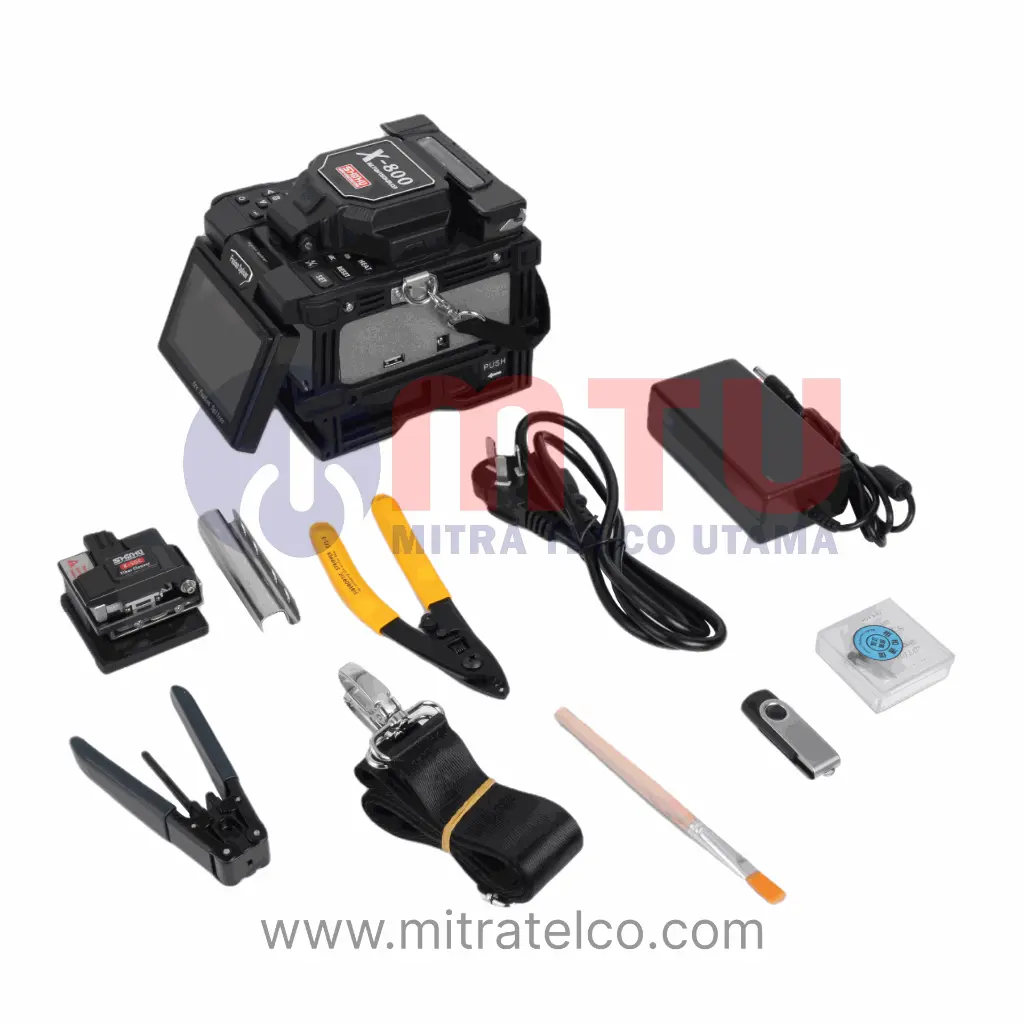

Packing List

1. Fusion Splicer X-800
2. Fiber Cleaver
3. Fiber Stripper
4. Cooling Tray
5. Spare Electrodes
6. Drop Cable Stripper
7. Carrying Box
8. Power Adapter
9. Power Plug
10. User Manual
11. Strap
12. Cleaning Brush

Resources

Shinho Fiber Fusion Splicer X-800 Datasheet
