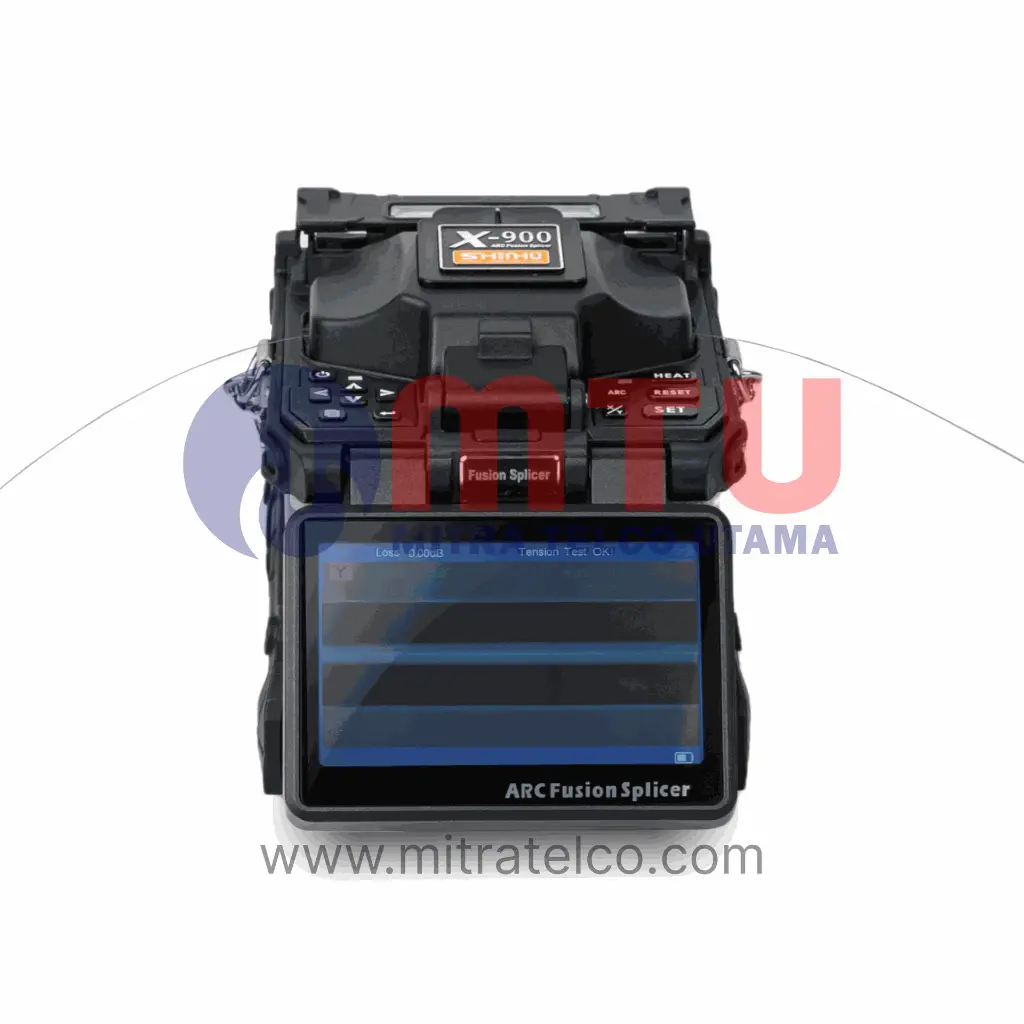

Shinho Fiber Fusion Splicer X-900

Specifications

• Alignment Method: 6-motor core-to-core alignment
• Applicable Fibers: SM (G.652), MM (G.651), DS (G.653), NZDS (G.655)
• Cladding Diameter: 80–150 μm
• Coating Diameter: 160–3000 μm
• Cleaved Length: 5–16 mm (<250 μm coating), 16 mm (250–1000 μm coating)
• Typical Splice Loss: SM: 0.02 dB, MM: 0.01 dB, DS: 0.04 dB, NZDS: 0.04 dB
• Return Loss: >60 dB
• Splicing Programs: 40 groups, manual/automatic modes
• Heating Time: 18 s for 60 mm & 40 mm sleeves
• Fiber Magnification: 400× (X/Y view), 200× (X and Y view)

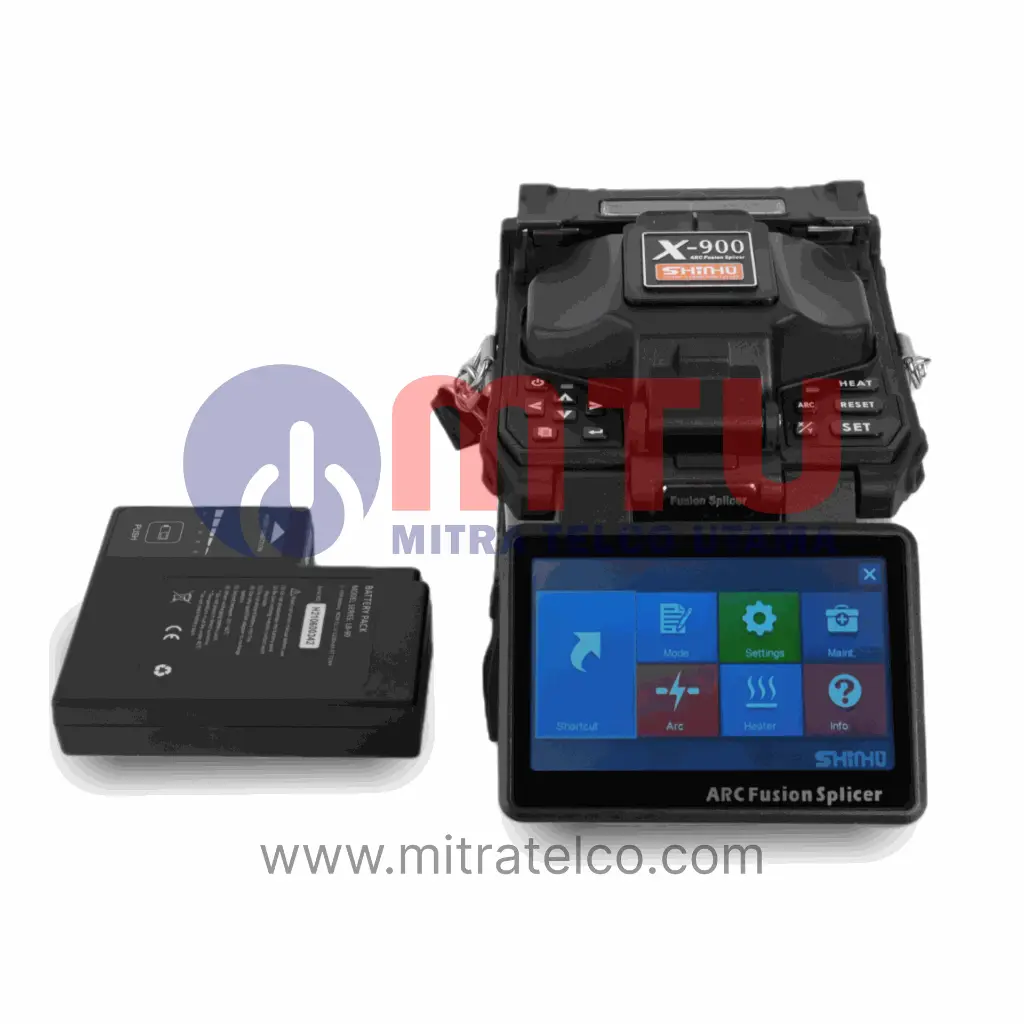

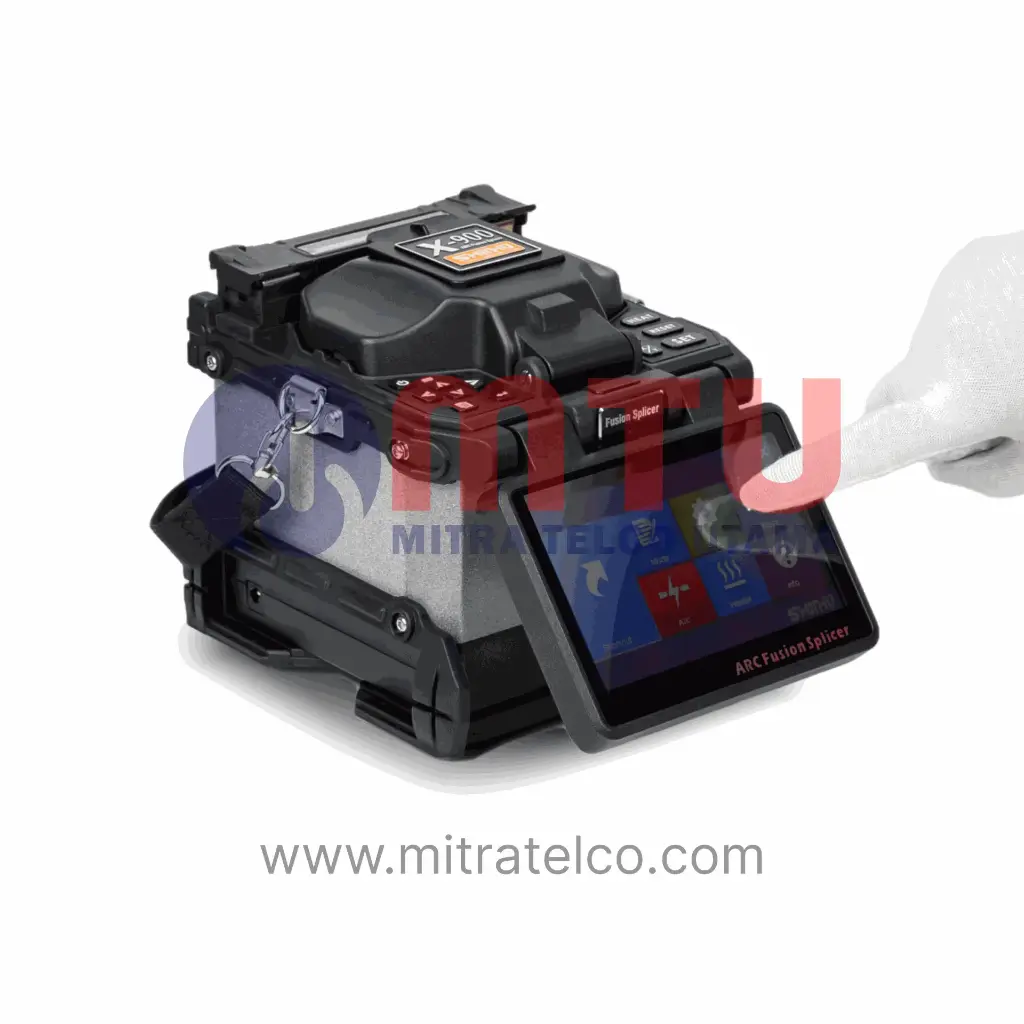

• Display: Dual high-sensitivity camera, 5" 800×480 LCD touch screen
• Data Storage: 8000 splice records
• Battery: 5200 mAh, up to 300 splice/heat cycles per charge
• Electrode Life: >4000 ARC discharges
• Operating Conditions: –10°C to +50°C, up to 5000 m altitude, ≤15 m/s wind
• Dimensions/Weight: 156×141×156 mm / 2.45 kg (with battery)
• Interface: USB 2.0 for software upgrade & data export

Applications:

• Backbone and metro fiber networks (>50 km)
• FTTx / FTTH projects
• Telecom and CATV maintenance

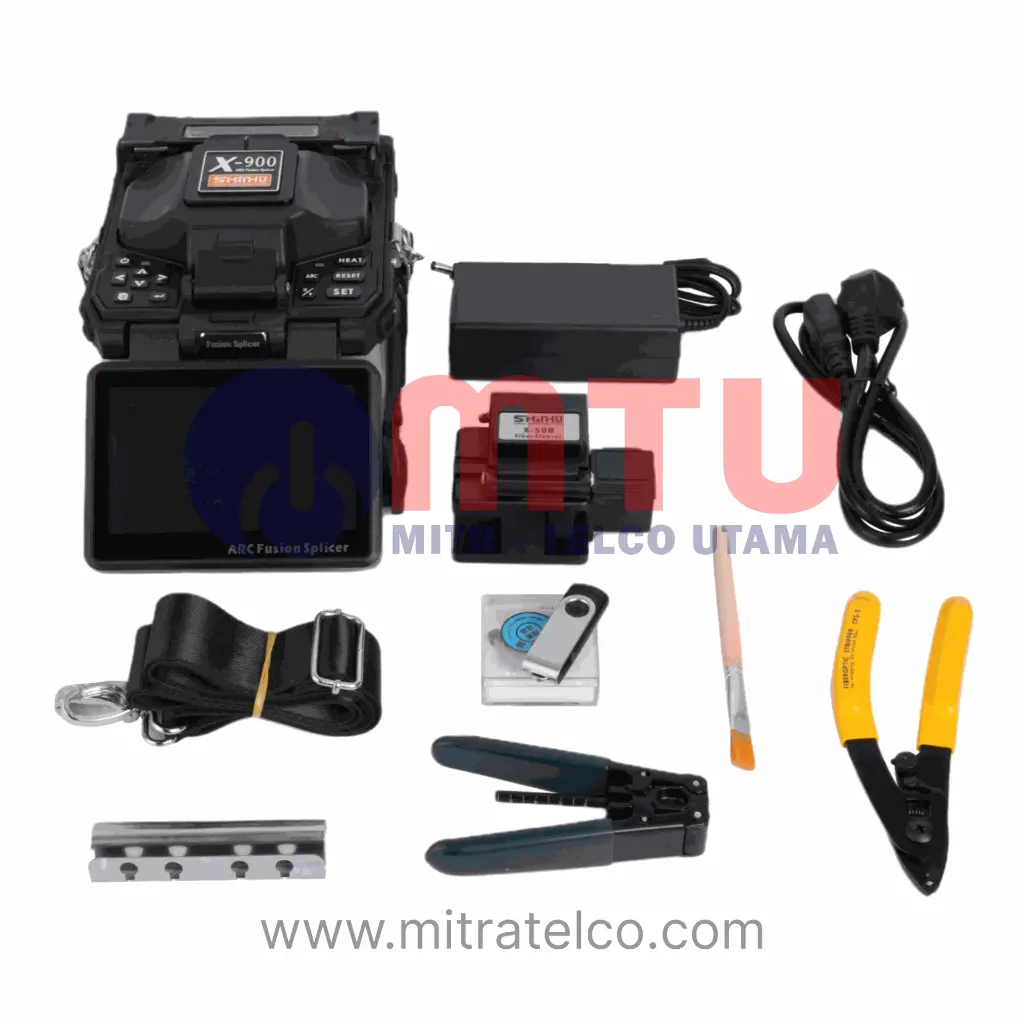

Packing List

1. Fusion Splicer X-900
2. Fiber Cleaver
3. Fiber Stripper
4. Cooling Tray
5. Spare Electrodes
6. Stripper
7. Carrying Box
8. Power Adapter
9. Power Plug
10. User Manual
11. Strap
12. Cleaning Brush

Resources

 Shinho Fiber Fusion Splicer X-900 Datasheet
