Shinho Fiber Fusion Splicer X-910

Specifications

• Alignment Method: 6-motor core-to-core alignment
• Applicable Fibers: SM (G.652), MM (G.651), DS (G.653), NZDS (G.655)
• Cladding Diameter: 80–150 μm
• Coating Diameter: 160–1000 μm
• Cleaved Length: 5–16 mm (<250 μm coating), 16 mm (250–1000 μm coating)
• Typical Splice Loss: SM: 0.02 dB, MM: 0.01 dB, DS: 0.04 dB, NZDS: 0.04 dB
• Return Loss: >60 dB
• Splicing Programs: 40 groups, manual/automatic modes
• Heating Time: 18 s for 60 mm & 40 mm sleeves
• Fiber Magnification: 250× (X/Y view), 125× (X and Y view)
• Display: 5” 800×480 LCD touch screen, dual high-sensitivity cameras
• Data Storage: 4000 splice records
• Battery: 5200 mAh, up to 300 splice/heat cycles per charge
• Electrode Life: >4000 ARC discharges
• Operating Conditions: –10°C to +50°C, up to 5000 m altitude, ≤15 m/s wind
• Dimensions/Weight: 156×141×156 mm / 2.45 kg (with battery)
• Interface: USB 2.0 for software upgrade & data export

Applications:

• FTTx and FTTH network deployment
• Backbone and metro optical networks
• Data center and telecom maintenance

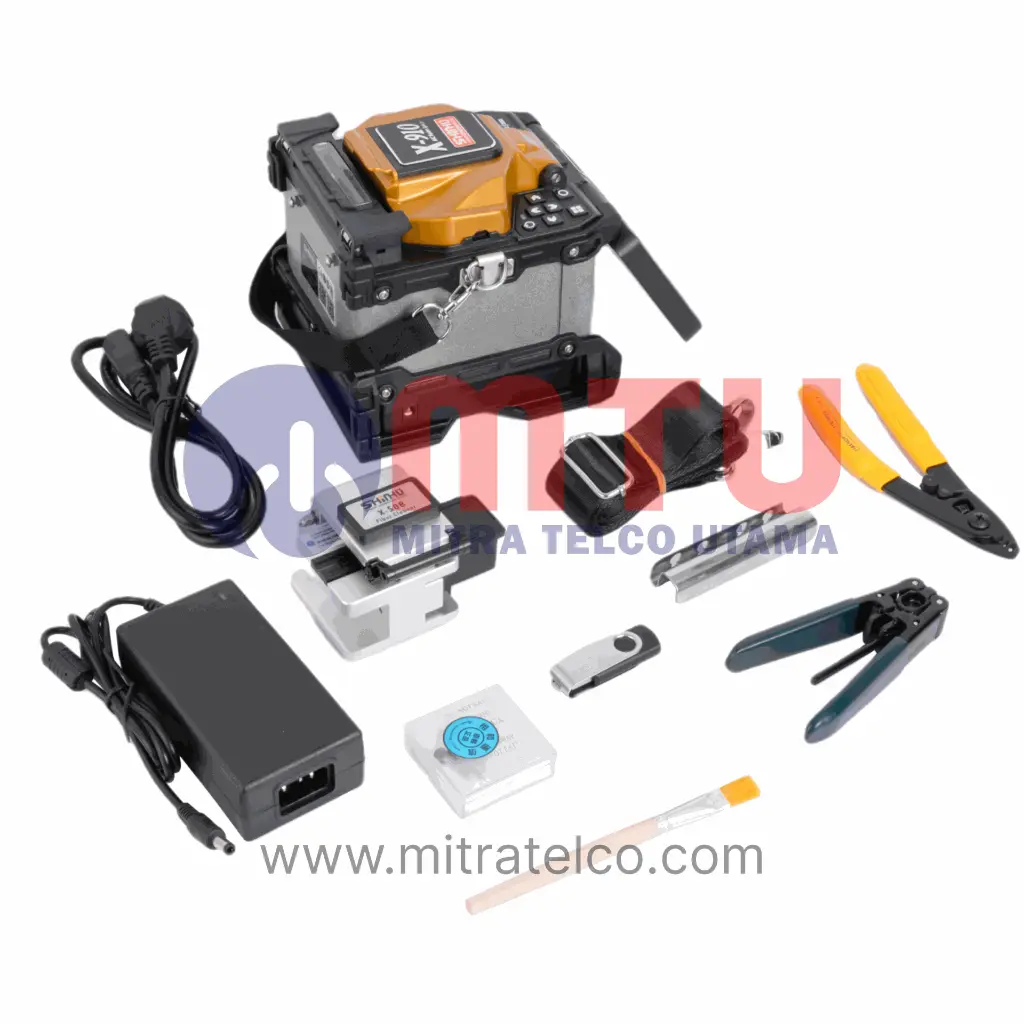

Packing List

1. Fusion Splicer X-910
2. Fiber Cleaver
3. Fiber Stripper
4. Cooling Tray
5. Spare Electrodes
6. Stripper

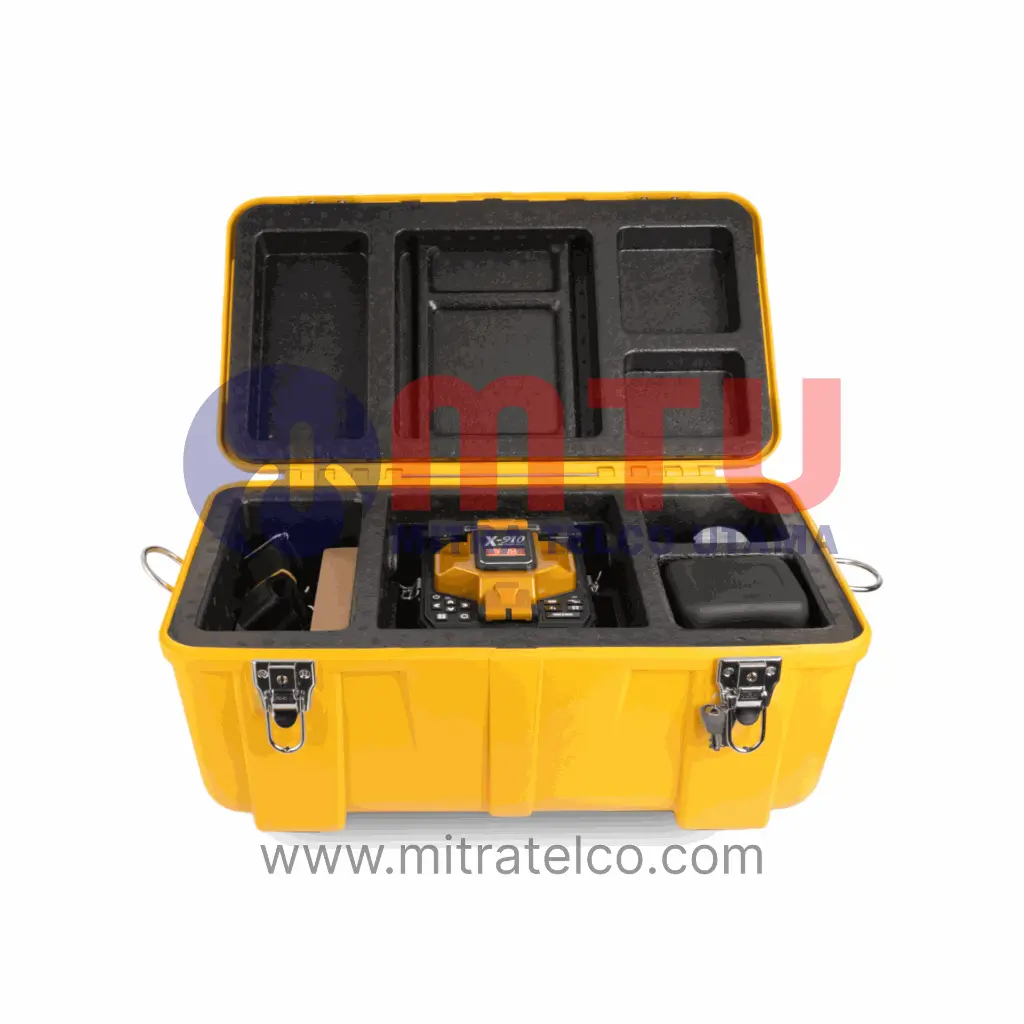

7. Carrying Box
8. Power Adapter
9. Power Plug
10. User Manual
11. Strap
12. Cleaning Brush

Resources

Shinho Fiber Fusion Splicer X-910 Datasheet
