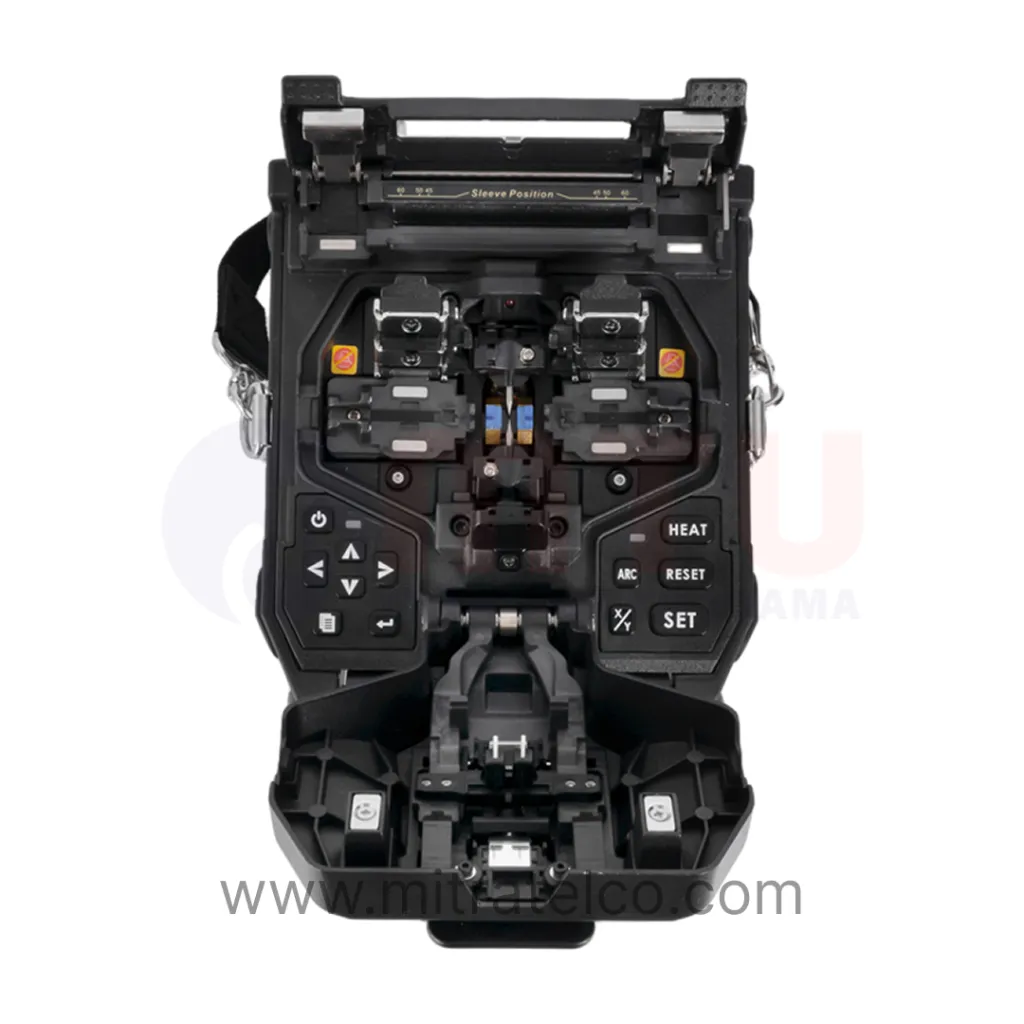

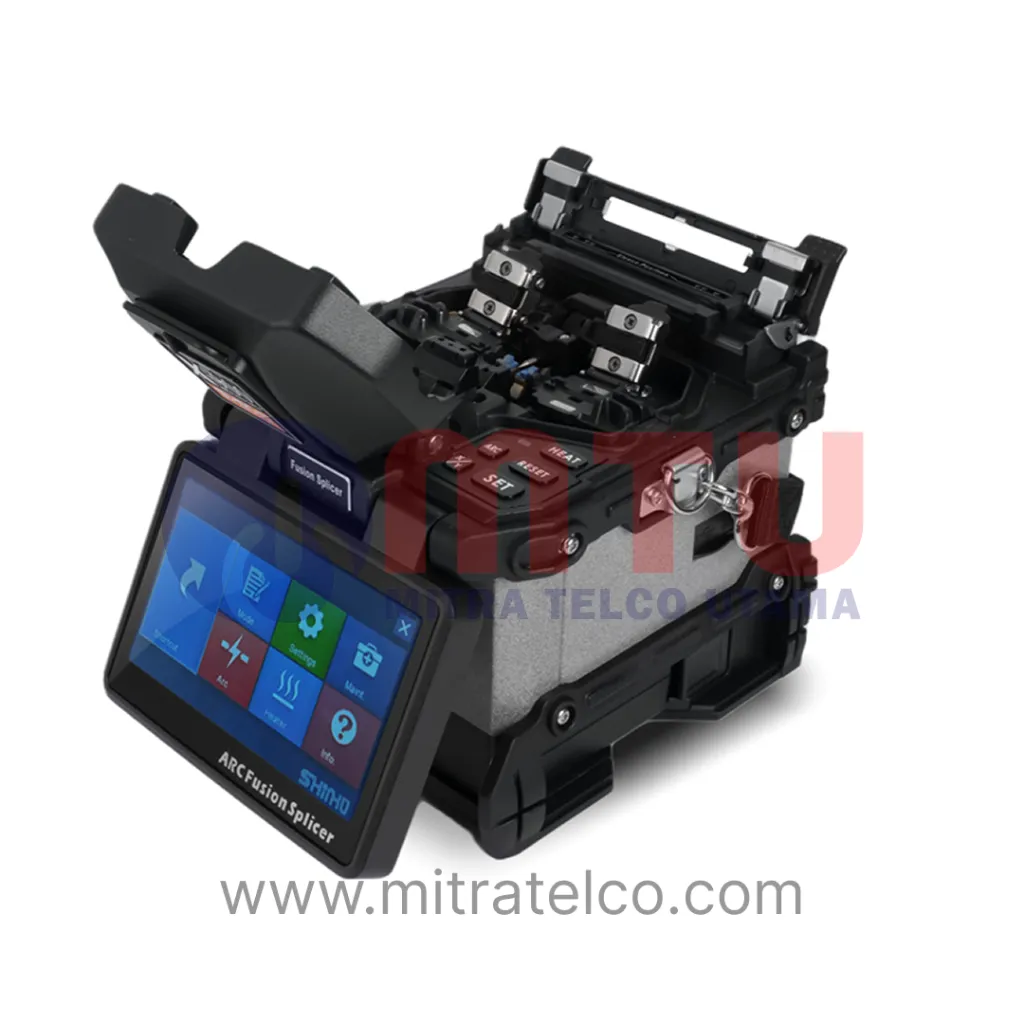

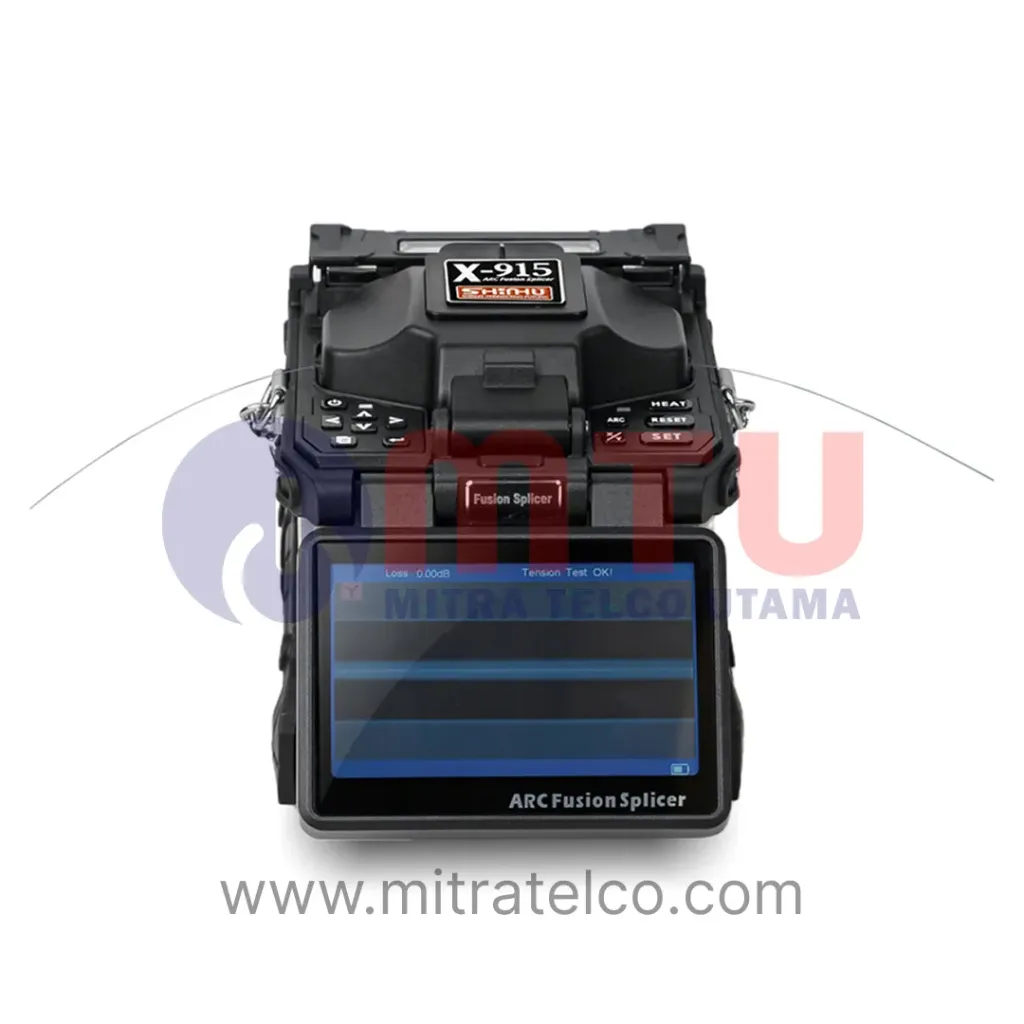

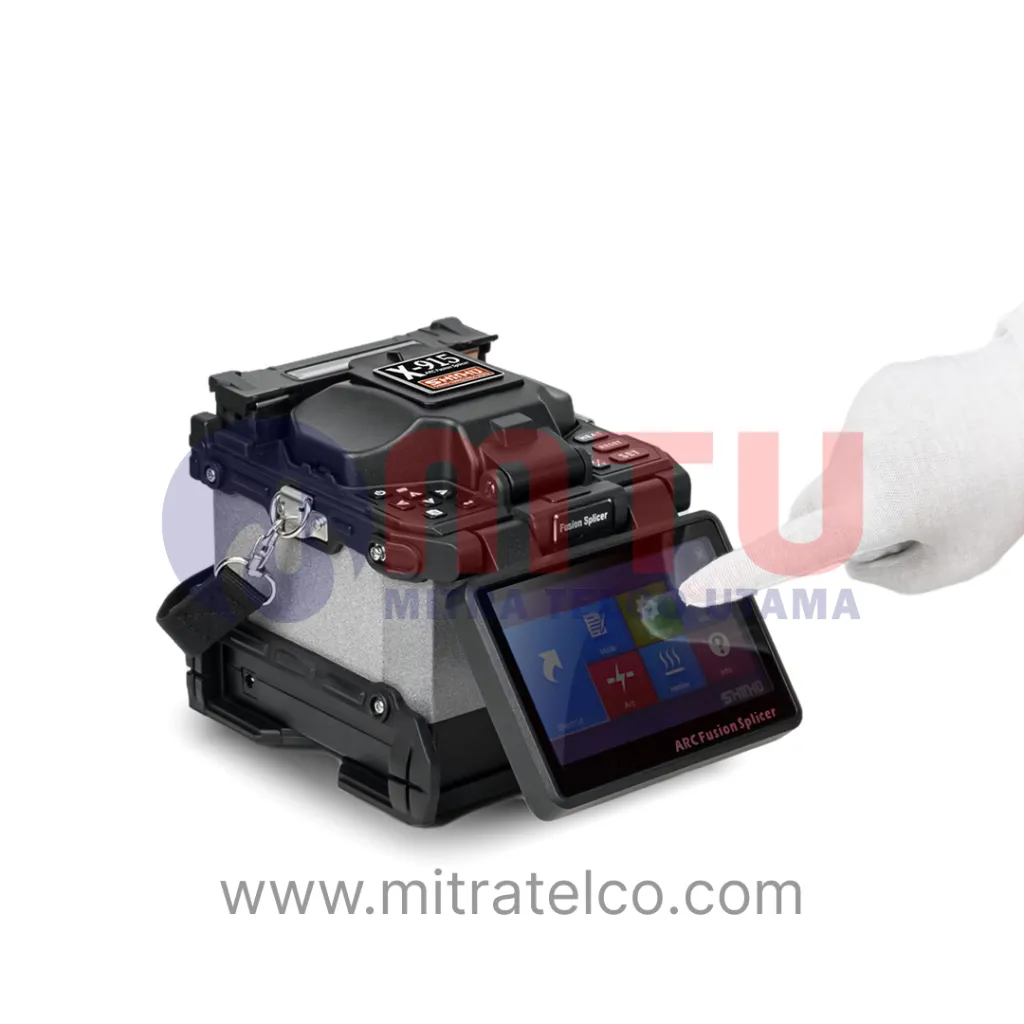

Shinho Fiber Fusion Splicer X-915

Specifications

• ​Alignment Method: Core-to-core alignment (6 motors)
• Applicable Fiber: SM (G.652), MM (G.651), DS (G.653), NZDS (G.655), G.657, EDFA
• Cladding Diameter: 80 – 150 µm
• Coating Diameter: 160 – 3000 µm

• Typical Splice Loss:

  • SM: 0.02 dB
  • MM: 0.01 dB
  • DS/NZDS: 0.04 dB
• Return Loss: > 60 dB
• Splicing Time: ~6 seconds
• Heating Time: ~18 seconds
• Cleave Length: 5–16 mm (depending on coating)
• Splicing Programs: 40 groups
• Operation Mode: Automatic / Manual

• Magnification:

  • 250× (X or Y view)
  • 125× (X & Y view)
• Display: 5-inch color LCD, dual CMOS camera, touchscreen
• Storage: Up to 4000 splice records
• Tension Test: > 2.2 N
• Interface: USB 2.0

• Battery: 5200 mAh Li-ion

  • ~250 splice & heat cycles

  • 5 hours operation

• Electrode Life: > 4000 arc discharges

• Operating Conditions:

  • Temperature: –20°C to +50°C
  • Humidity: 0–95%
  • Altitude: up to 5000 m
• Dimensions: 156 × 141 × 156 mm
• Weight: ~2.45 kg (including battery)

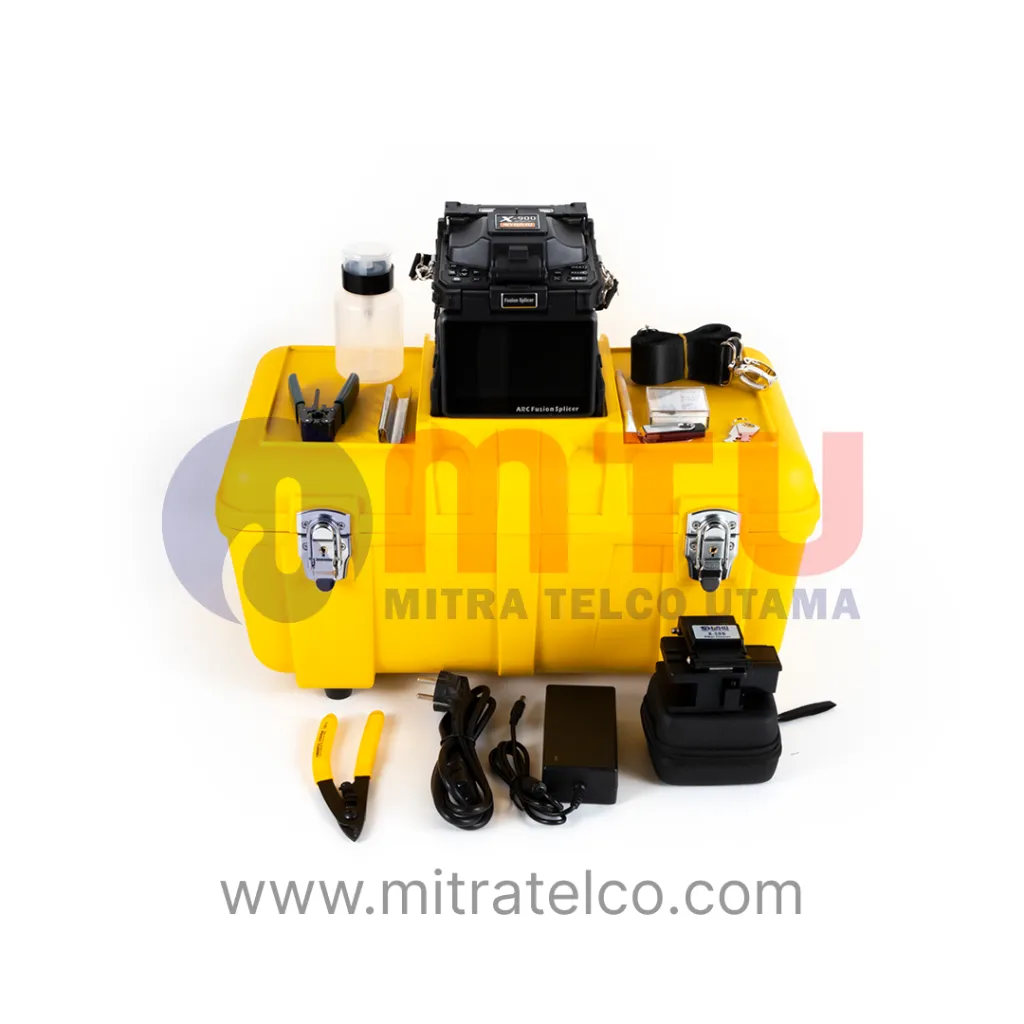

Packing List

1. Fusion Splicer X-915
2. Fiber Cleaver
3. Fiber Stripper
4. Drop cable stripper

5. Spare Electrodes
6. Carrying Box
7. Power Adapter
8. Power Cord
9. Cooling tray
10. User Manual
11. Strap
12. Cleaning tool kit
