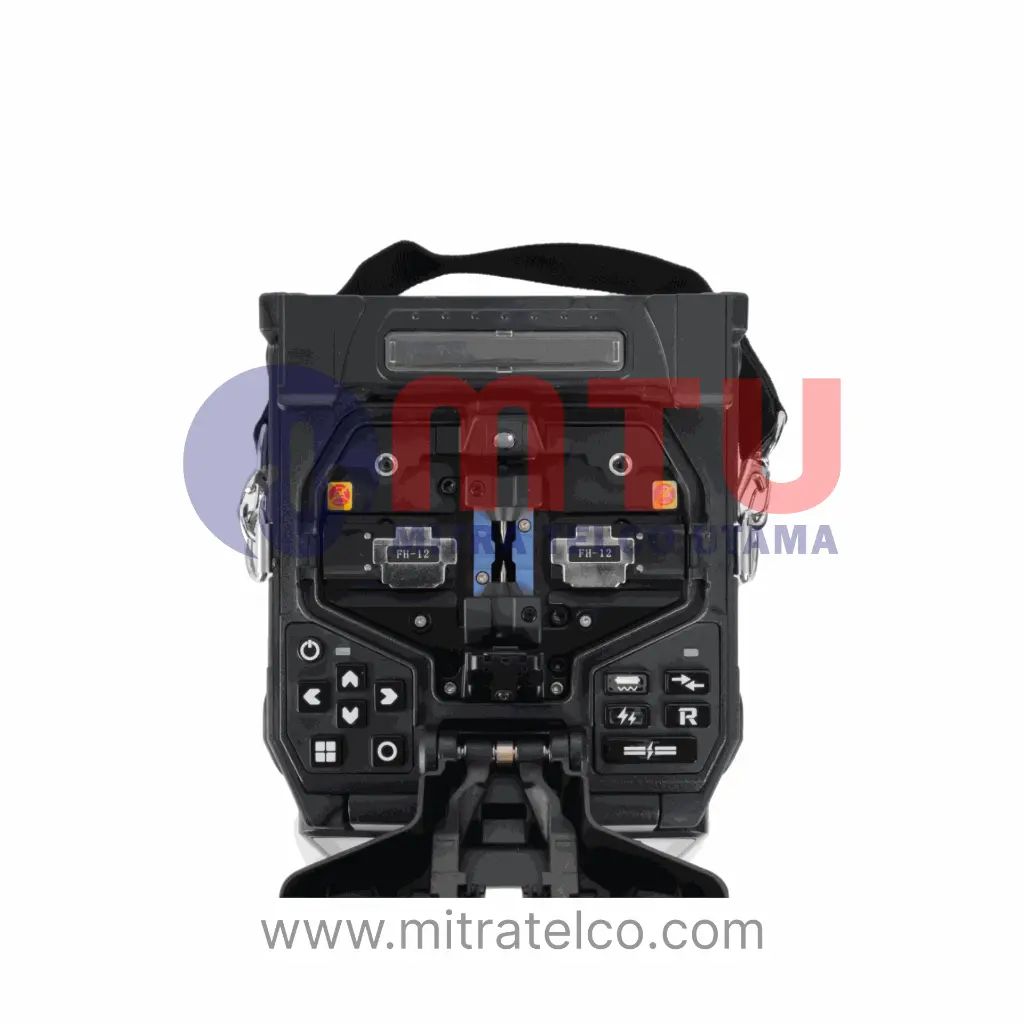

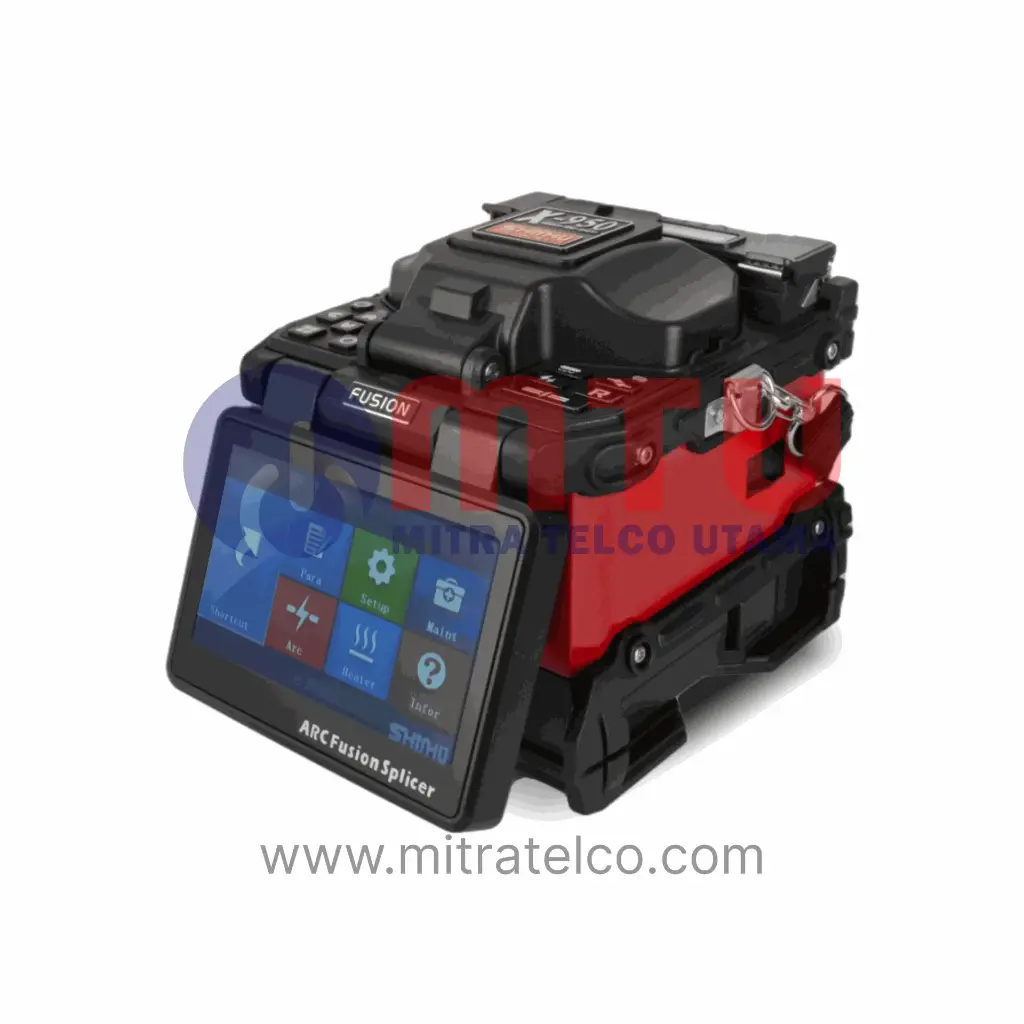

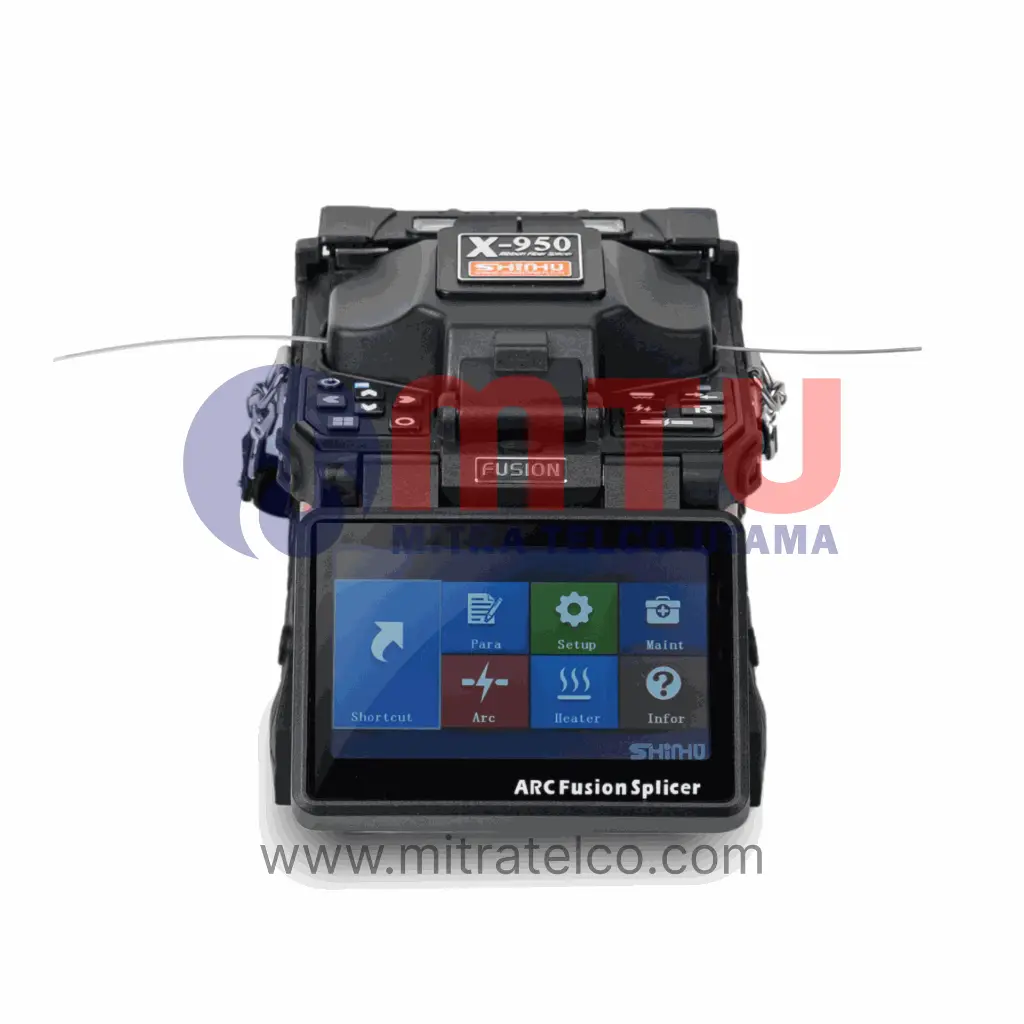

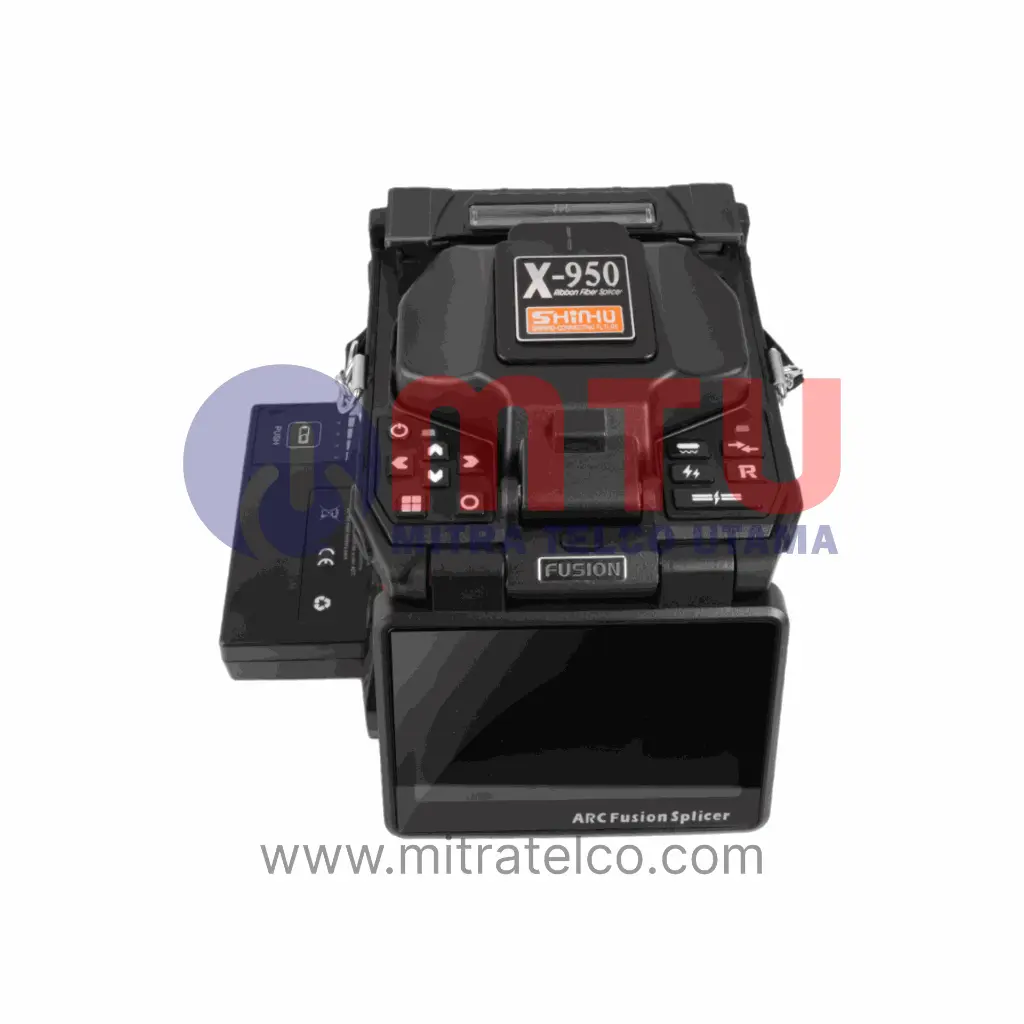

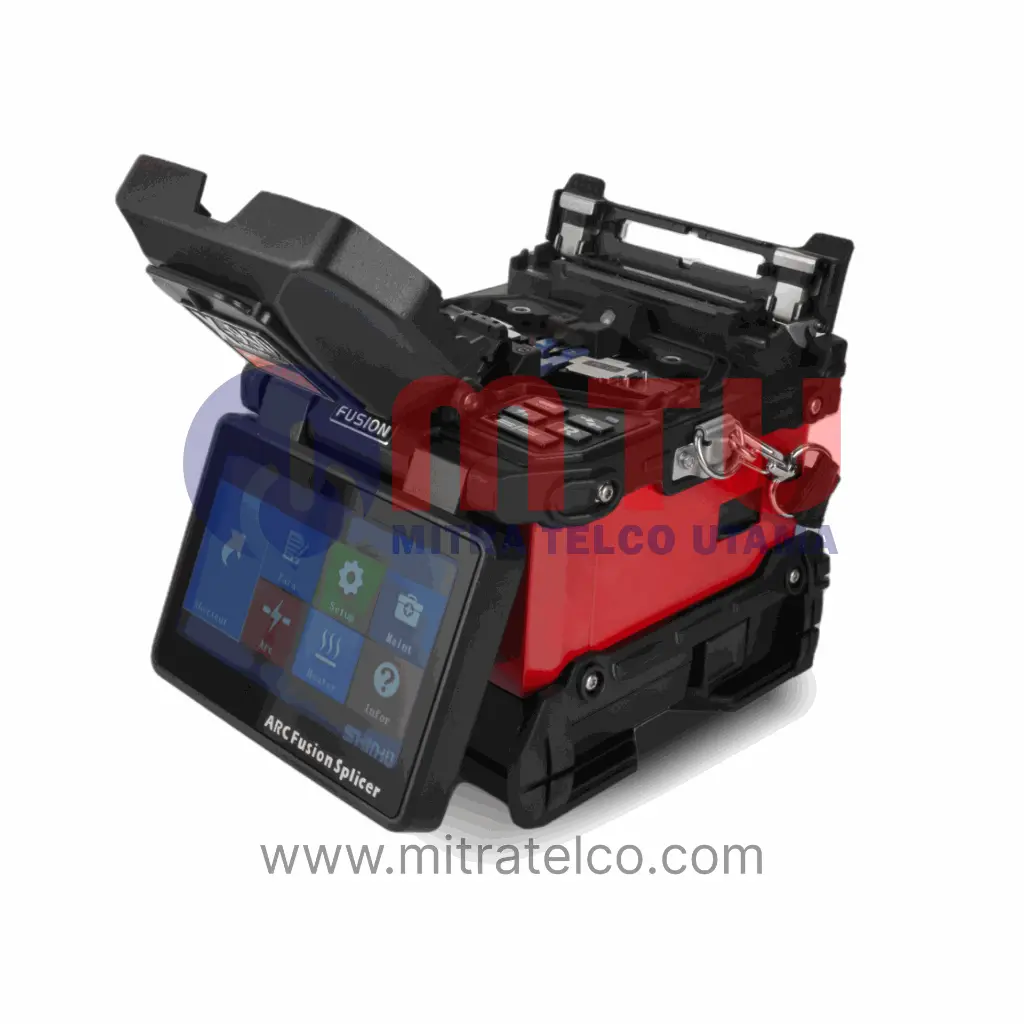

Shinho Ribbon Fiber Fusion Splicer X-950

Specifications

• Alignment Method: Clad-to-clad alignment
• Applicable Fibers: SM (G.652), MM (G.651), DS (G.653), NZDS (G.655)
• Fiber Cores: Single core, 2–12 cores ribbon fiber
• Coating Diameter: 250–400 μm
• Typical Splice Loss: SM: 0.05 dB; MM: 0.02 dB; DS: 0.08 dB; NZDS: 0.08 dB
• Return Loss: >60 dB
• Splicing Programs: 40 groups, manual/automatic modes
• Heating Time: 26 s (1–2 cores), 40 s (4–12 cores)
• Fiber Magnification: 25×
• Display: Dual high-sensitivity camera, 5" 800×480 LCD monitor
• Data Storage: 4000 splice records + 100 splice images
• Battery: 5200 mAh, up to 150 splice/heat cycles per charge
• Electrode Life: >3000 ARC discharges, easy replacement
• Interface: USB 2.0 for software upgrade and data export
• Operating Conditions: –10°C to +50°C, 0–5000 m altitude, ≤15 m/s wind
• Dimensions/Weight: 155×144×155 mm / 2.3 kg (with battery)

Applications:

• Ribbon and single fiber splicing
• FTTx and FTTH network deployment
• Metro, backbone, and CATV network projects

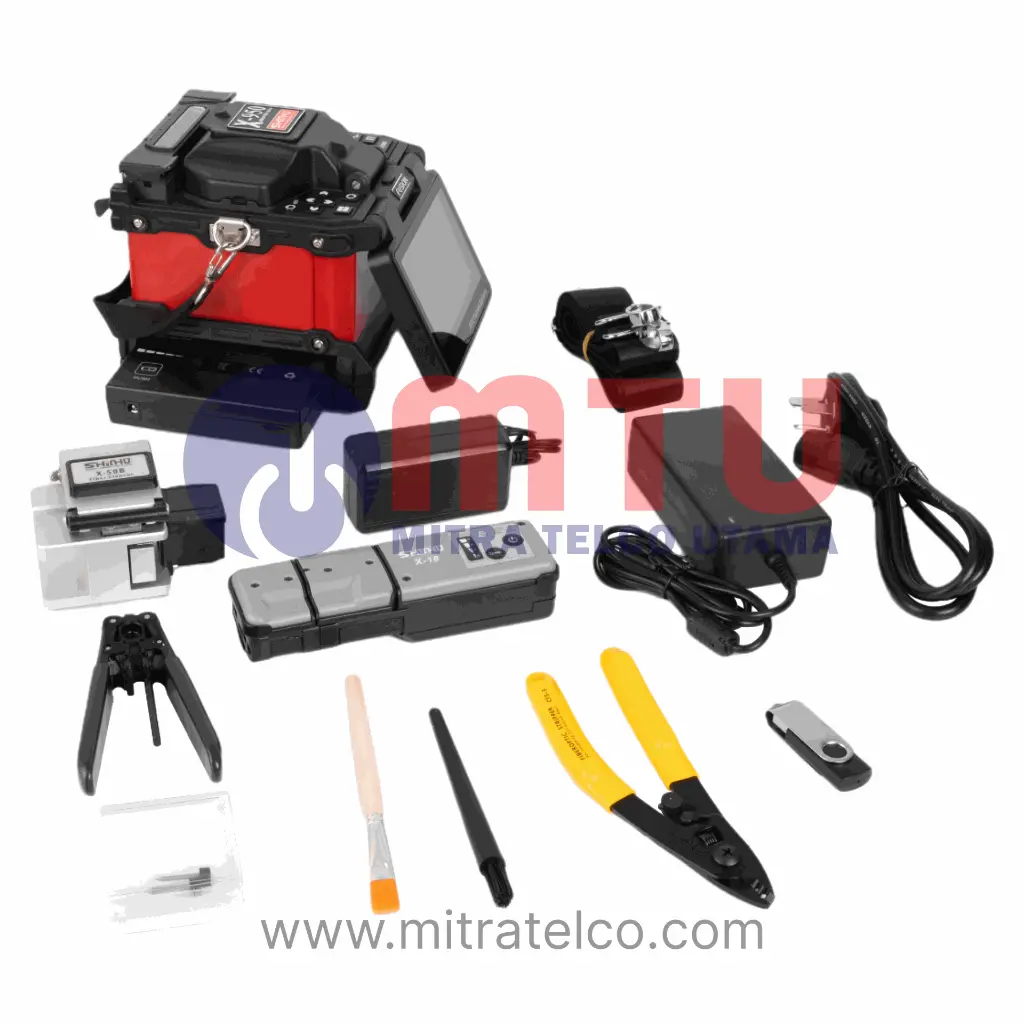

Packing List

1. Fusion Splicer X-500
2. Fiber Cleaver
3. Heating stripper
4. Fiber holder R-12
5. Cooling Tray
6. Spare Electrodes

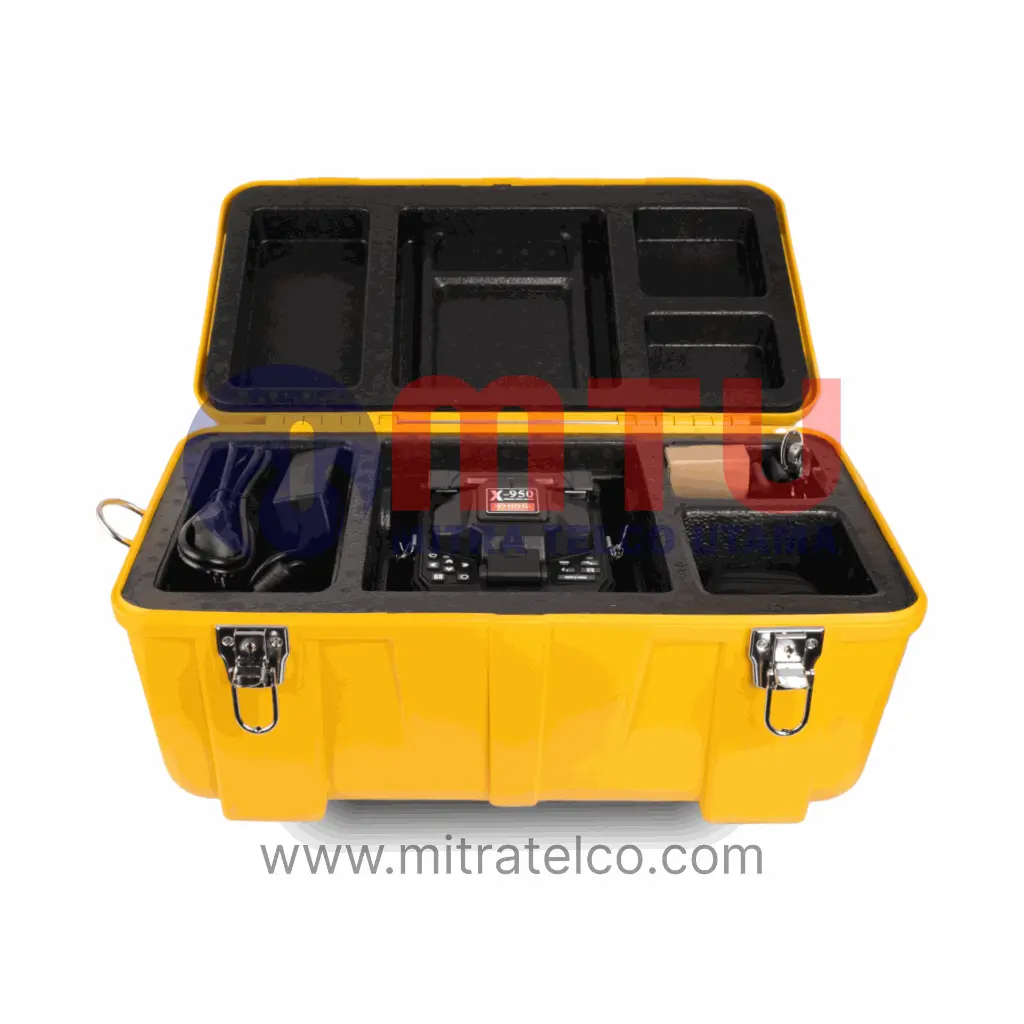

7. Carrying Box
8. Power Adapter
9. Power Plug
10. User Manual
11. Strap
12. Cleaning Brush

Resources

 Shinho Ribbon Fiber Fusion Splicer X-950 Datasheet
