Specifications

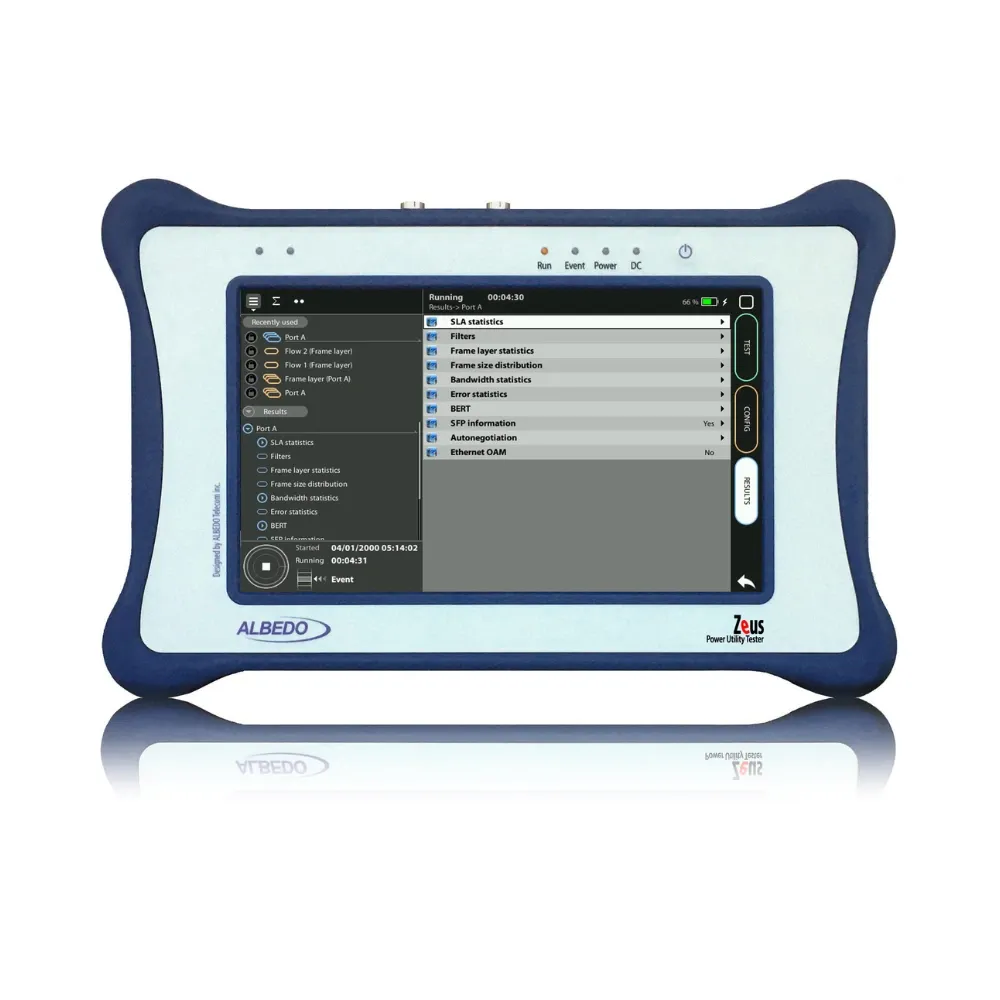

- Product Type: Network Tester for Power Utilities
- Model / Part Number: ZEUS.HH
- Primary Application: Installation and maintenance of power utility communications
- Main Functions: Ethernet/IP testing, PRP testing, PTP/NTP testing, SyncE testing, IEC 61850 GOOSE/SV analysis, traffic generation and analysis, RFC 2544, ITU-T Y.1564, traffic capture, E1/T1 testing, Datacom testing, IEEE C37.94 testing, E0 testing, voice frequency testing, clock monitoring, jitter/wander analysis, latency testing, and pulse mask analysis

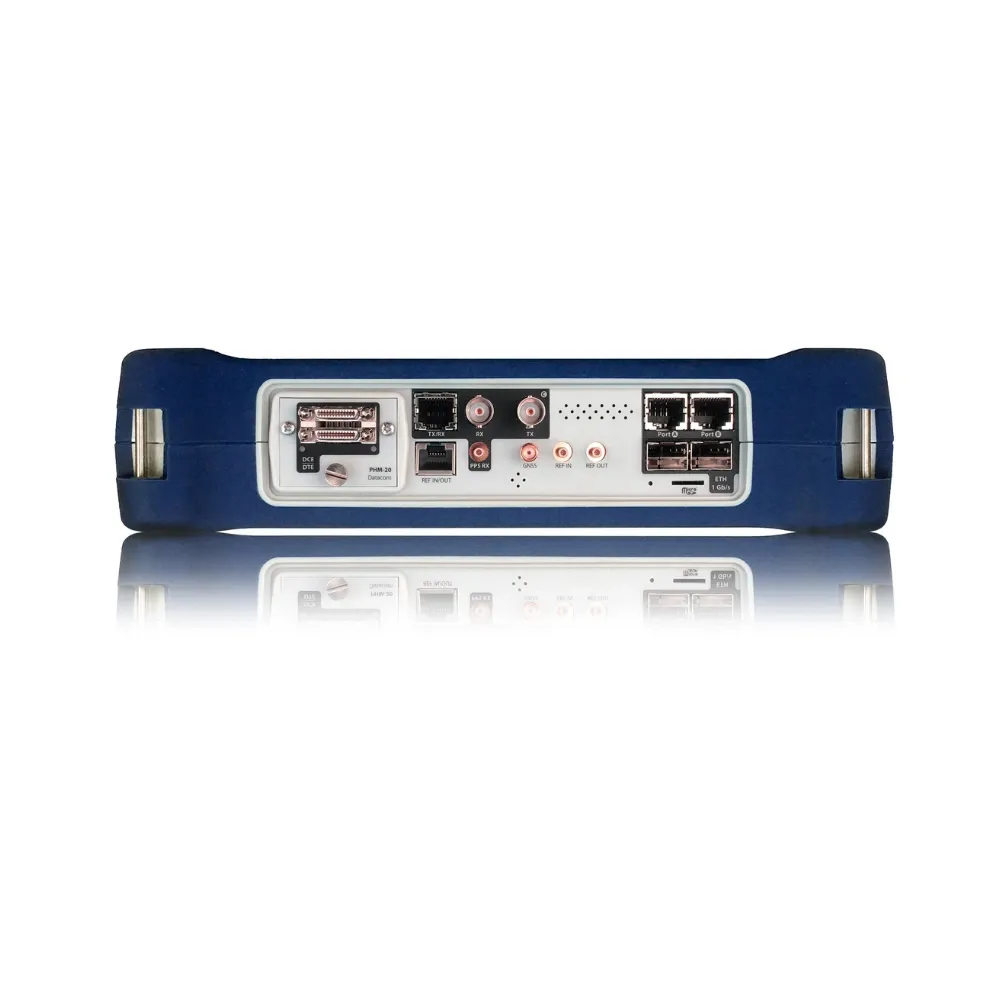

- Ethernet Interfaces: 2 × 1 Gigabit Ethernet RJ-45 and 2 × SFP-compatible interfaces
- Ethernet Rates: 10 Mb/s, 100 Mb/s, 1000 Mb/s
- Supported Optical Ethernet Interfaces: 1000BASE-SX, 1000BASE-LX, 1000BASE-ZX, 1000BASE-BX, 100BASE-FX
- Supported Electrical Ethernet Interfaces: 10BASE-T, 100BASE-TX, 1000BASE-T
- Ethernet Traffic Capacity: Up to 1 Gb/s concurrent generation and analysis; up to 1.5 million frames/s with 64-byte frames
- Traffic Generation: Up to 8 independent streams
- Traffic Profiles: Continuous, periodic burst, ramp, random
- Traffic Filters: Up to 8 simultaneous filters per port
- Supported Protocols: PTP IEEE 1588-2008, NTPv3/NTPv4, IEC 61850 GOOSE and SV, MPLS, IPv4, IPv6, PRP
- PTP Test Functions: Master/slave emulation, 1-step and 2-step, peer-to-peer and end-to-end delay, Time Error, MTIE, TDEV, PDV, path asymmetry
- NTP Functions: NTPv3/NTPv4 server and client emulation, delay, asymmetry, and Time Error analysis
- IEC 61850: GOOSE and SV frame decoding and analysis, latency measurements
- PRP: DAN/SAN emulation, multi-stream traffic generation, delay/frame loss/throughput measurement, redundancy analysis
- RFC 2544: Throughput, frame loss, latency, back-to-back, recovery
- ITU-T Y.1564: CIR, EIR, FTD, FDV, FLR, availability, up to 8 services non-color-aware or 4 services color-aware
- Packet Capture: 256 MB buffer, PCAP and PCAPNG export
- Packet Timestamp Resolution: 1 ns hardware timestamping
- E1 Rate: 2048 kb/s
- T1 Rate: 1544 kb/s
- E1 Interface: BNC 75 Ω and RJ-48 120 Ω
- T1 Interface: RJ-48 120 Ω
- E1/T1 Line Codes: E1 HDB3, AMI; T1 B8ZS, AMI
- E1/T1 Input Level: 0 dB to −45 dBm for E1; 0 dB to −45 dB for T1
- Datacom Interfaces: V.24/V.28, X.21/V.11, V.35, V.36 (RS-449), EIA-530, EIA-530A
- IEEE C37.94 Bit Rate: 64 kb/s to 768 kb/s in 64 kb/s steps
- E0 Rates: 48, 56, 64, 72, 128, 144, 192, 256 kb/s
- Clock Reference Inputs: 10 MHz, 5 MHz, 2048 kHz, 1544 kHz, E1, T1, 1 PPS, 1PP2S, ToD, IRIG-B, Synchronous Ethernet
- GNSS: GPS, GLONASS, Galileo, BeiDou; optional multi-band receiver
- GNSS Sensitivity: −166 dBm tracking / −148 dBm cold start for single-band; −167 dBm tracking / −148 dBm cold start for multi-band
- Default Oscillator: TCXO better than ±2 ppm
- Optional Oscillator: OCXO better than ±50 ppb; Rubidium better than ±5.0e-11
- Display: 8-inch TFT colour screen, 800 × 480 pixels
- Management Interfaces: USB Type-A, RS-232/V.24 console, Ethernet 10/100BASE-T, optional Wi-Fi 802.11a/b/g/n
- Remote Management: SNMP, VNC
- Results and Reports: PDF report generation; file export via SD card and USB
- Battery: LiPo
- Battery Operation: 5–8 hours
- Battery Recharge Time: 4 hours
- Power Supply: 12 V nominal DC, 15 V maximum, 5 A maximum
- AC Adapter: 100–240 V~, 50/60 Hz, 1.5 A input; 12 V DC, 5 A output
- Dimensions: 260 × 160 × 63 mm
- Weight: 1.9 kg with dual battery packs
- IP Rating: IP54
- Operating Temperature: −10°C to +45°C
- Storage Temperature: −20°C to +70°C
- Operating Humidity: 5%–95% non-condensing
- Operating Altitude: Up to 3000 m
