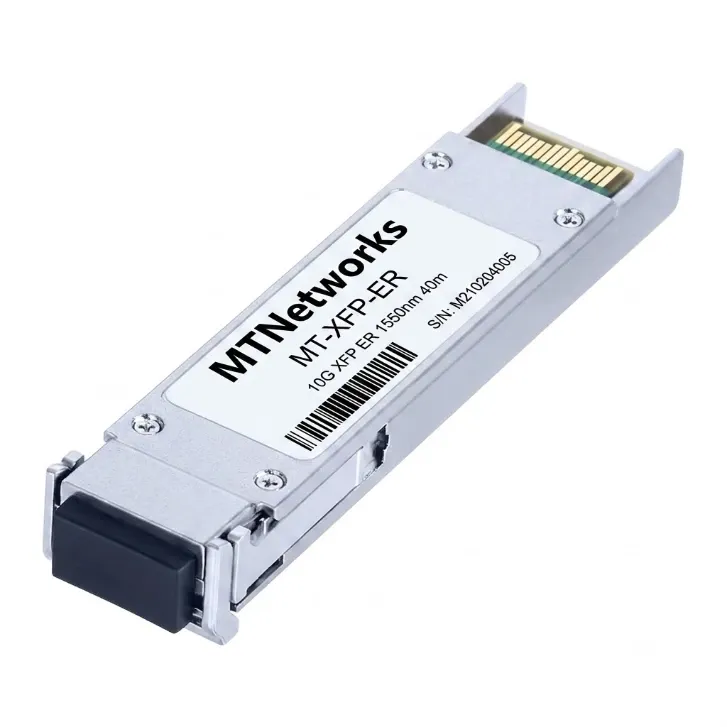

MTNetworks XFP 10G ER 1550nm 40km

Name: MTNetworks XFP 10G ER 1550nm 40km
Availability: InStock

The MTNetworks MT-XFP-ER is a high-performance 10G XFP optical transceiver designed for carrier networks, metro transport, enterprise backbone, and long-distance optical communication applications. Supporting data rates from 9.953 Gbps to 11.1 Gbps, this module delivers reliable optical transmission over single-mode fiber up to 40 km.

Featuring a 1550 nm cooled EML laser transmitter, high-sensitivity PIN photodiode receiver, Digital Diagnostic Monitoring (DDM), and a hot-pluggable XFP form factor, the MT-XFP-ER provides stable optical performance for 10G Ethernet, SONET/SDH, and Optical Transport Network (OTN) applications while maintaining full compliance with the XFP MSA specification.

Get a Quote ⟩

Specifications

Primary Application: 10 Gigabit Ethernet, SONET OC-192, SDH STM-64, OTN (G.709), Carrier Networks, Metro Networks, and Enterprise Backbone
Supported Standards: XFP MSA, 10GBASE-ER/EW, SONET OC-192, SDH STM-64, ITU-T G.709
Data Rate: 9.953 Gbps to 11.1 Gbps
Transmission Distance: Up to 40 km over Single-Mode Fiber (SMF)
Wavelength: 1550 nm
Optical Interface: Duplex LC connector
Optical Technology: 1550 nm Cooled EML transmitter with PIN photodiode receiver
Form Factor: XFP, hot-pluggable
Digital Diagnostics: Real-time Digital Diagnostic Monitoring (DDM) for temperature, supply voltage, laser bias current, transmit optical power, and receive optical power
Power Consumption: < 3.5 W
Power Supply: Single +3.3 V
Operating Temperature: 0°C to +70°C
Compliance: XFP MSA, RoHS compliant
