Specifications
- Data Rate: 155 Mbps
- Transmission Distance: 550m with 50/125µm MMF, 300m with 62.5/125µm MMF
- Wavelength: 850nm VCSEL Laser
- Receiver Type: PIN photodiode with integrated TIA
- Connector Type: Duplex LC
- Digital Diagnostic Monitoring: Internal or External Calibration
- Power Supply: +3.3V Single Supply
-
Operating Temperature:
- Standard: 0°C ~ +70°C
- Extended: -20°C ~ +85°C
- Compliance: SFP MSA, SFF-8472, RoHS Compliant
-
Optical Characteristics:
- Output Power: -9.5 to -3 dBm
- Receiver Sensitivity: ≤ -18 dBm
- Extinction Ratio: ≥ 9 dB
- Spectral Width (RMS): ≤ 0.85 nm
-
Electrical Characteristics:
- Input Differential Voltage: 400–1800 mV
- Input Impedance: 100Ω Differential
- Power Supply Current: ≤ 300 mA
-
Diagnostics Accuracy:
- Temperature: ±3°C
- Voltage: ±3%
- TX Power: ±3 dB
- RX Power: ±3 dB
- Bias Current: ±10%
- Dimensions: Standard SFP form factor
- Weight: Approx. 20g
Ordering Information
Part Number | Description |

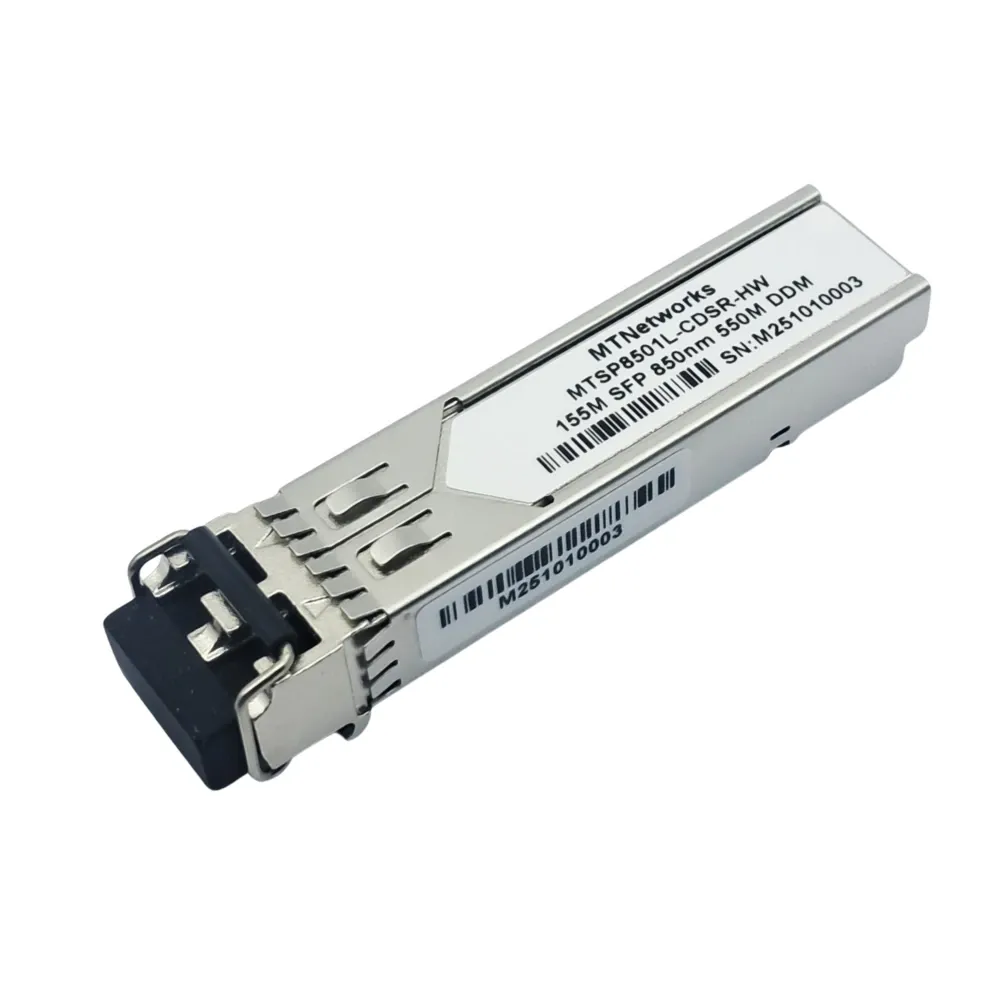

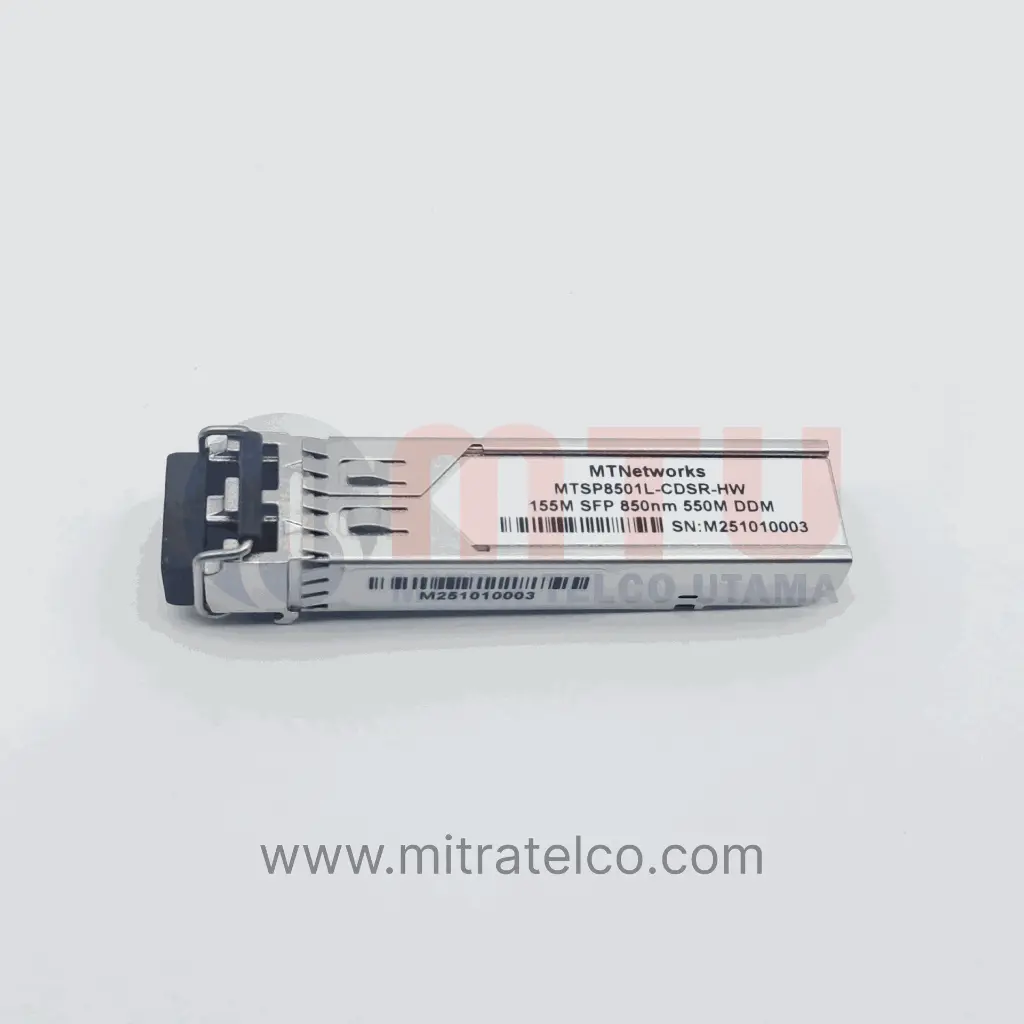

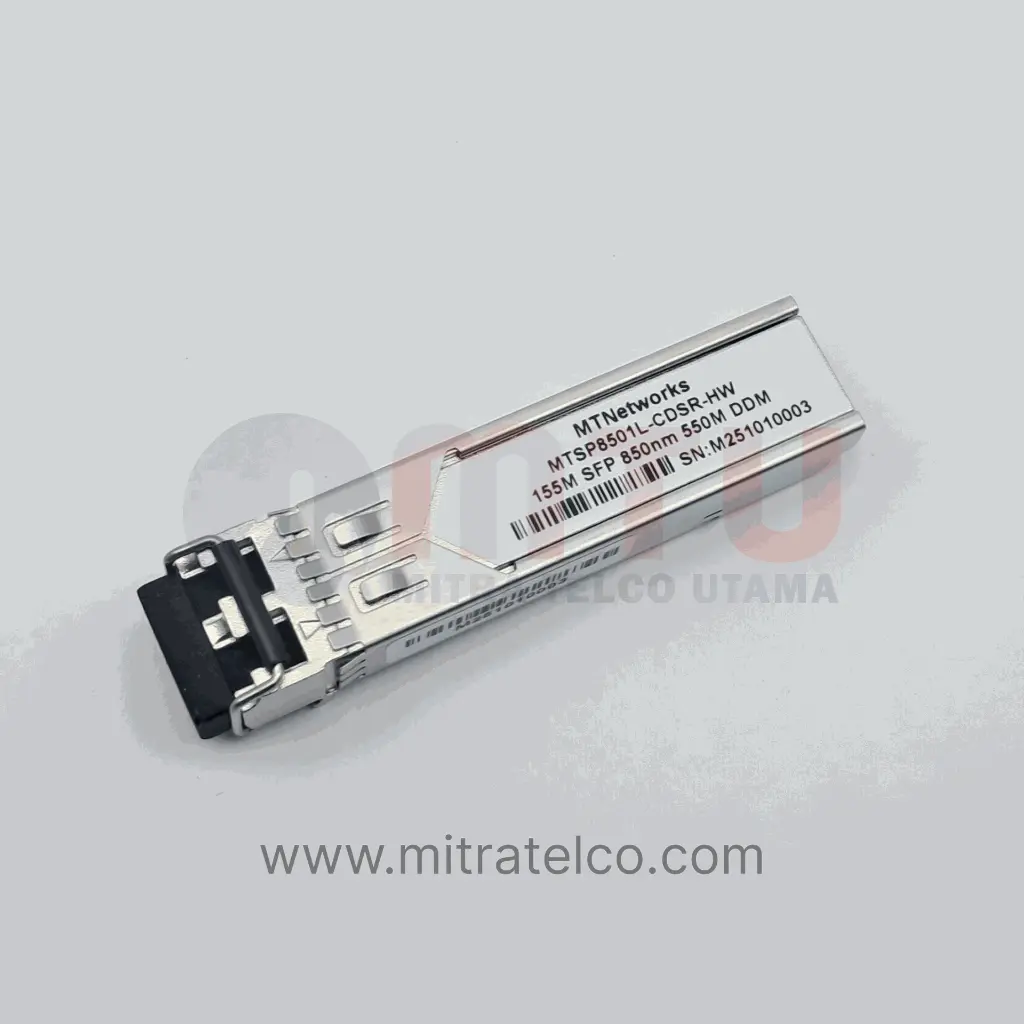

MTSP8501L-CDSR | 155M SFP 850nm 550m Transceiver Module |
