Specifications
- Combines fiber inspection and optical power measurement in a single device
- Automatic Pass/Fail analysis for both optical power and connector end-face quality
- Wavelength range: 780–1650 nm
- Measurement range: –50 to +10 dBm (1300/1310 nm), –45 to +10 dBm (850 nm)
- Display resolution: 0.01 dB
- Tone detection: 270 Hz, 1 kHz, 2 kHz
- Calibration points: 850, 1300, 1310, 1490, 1550, 1625 nm
- Storage capacity: Up to 10,000 test results
- User interface: 3.5” color LCD touchscreen with intuitive smartphone-style controls

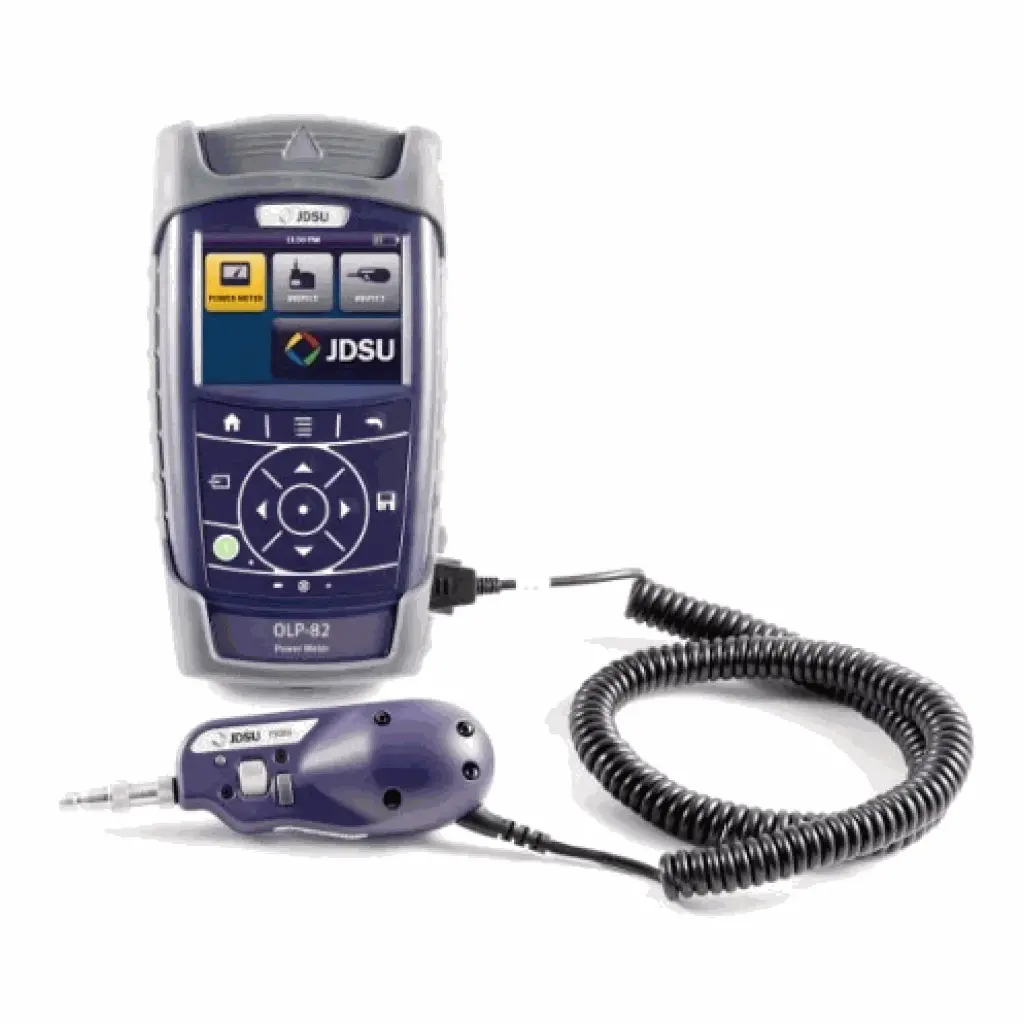

- Connectivity: Dual USB ports for P5000i microscope and data transfer (FiberChekPRO™ support)
- Battery life: ≥8 hours (Li-ion) / ≥5 hours (AA batteries)
- Power supply: Rechargeable Li-ion battery, AA battery pack, or AC adapter
- Dimensions: 208 × 112 × 64 mm (OLP-82) / 208 × 152 × 64 mm (OLP-82P)
- Weight: 0.5–0.6 kg
- Rugged design: Field-durable, suitable for tower or outdoor operations
- Optional Visual Fault Locator (FFL-050) and cleaning kit available
